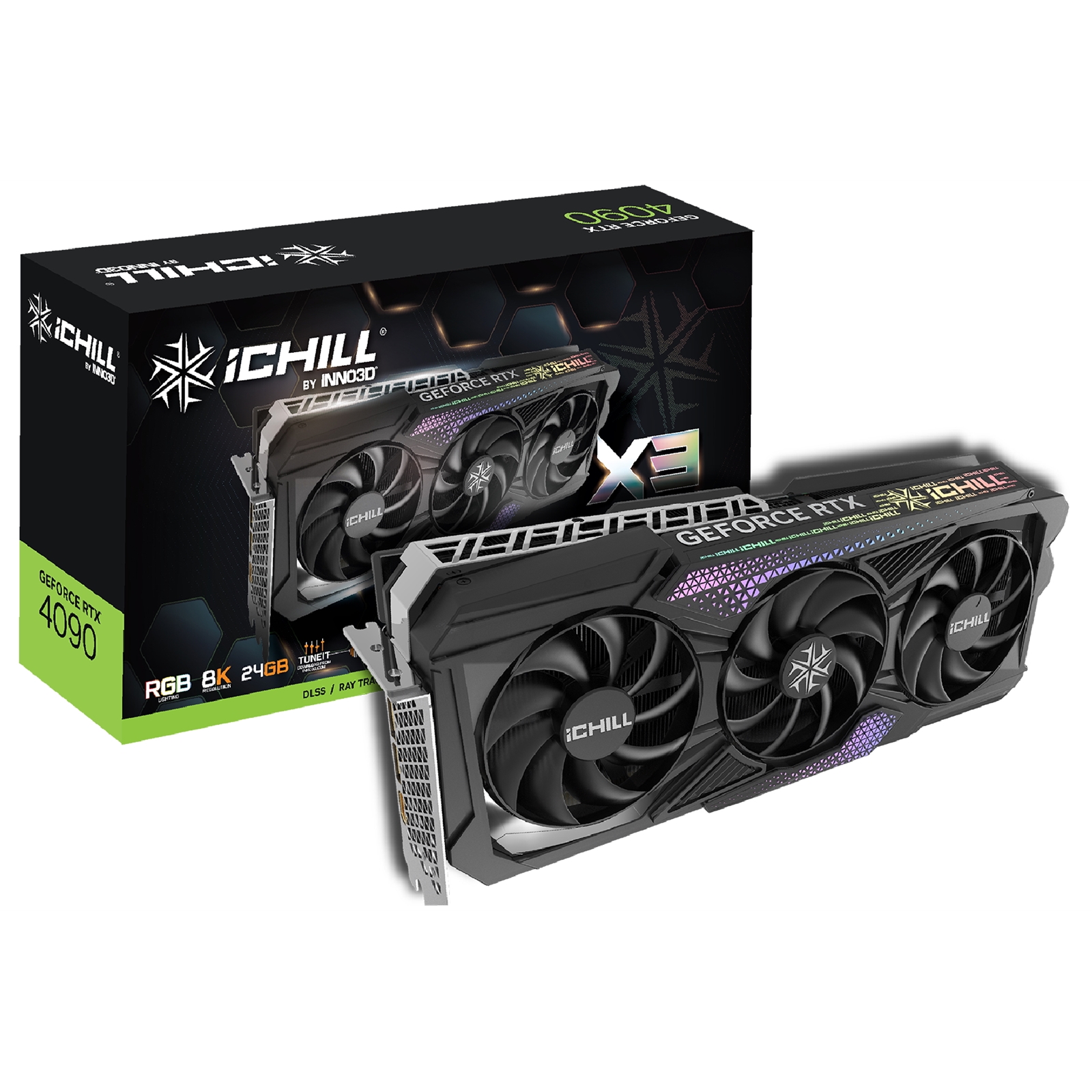

INNO3D GEFORCE RTX 4090 ICHILL X3 C40903-246XX - 2580MHz Boost, RGB Lighting, 24GB DDR6X 384-bit Memory Bandwidth Graphics Card

Specifications

GPU Engine Specs:
CUDA Cores
16384

Boost Clock (MHz)
2580

Base Clock(MHz)
2235

Thermal and Power Spec:
Minimum System Power Requirement (W)
850

Supplementary Power Connectors
3x PCIe 8-pin cables (adapter in box) OR 450 W or greater PCIe Gen 5 cable

Memory Specs:
Memory Clock
21Gbps

Standard Memory Config
24GB

Memory Interface
GDDR6X

Memory Interface Width
384-bit

Memory Bandwidth (GB/sec)
1008

Feature Support:
Real-Time Ray Tracing
Yes

Ray Tracing Cores
3rd Generation

Tensor Cores
4rd Generation

NVIDIA Architecture
Ada Lovelace

Microsoft DirectX
12 Ultimate

NVIDIA DLSS
3

PCI Express Gen 4
Yes

NVIDIA GeForce Experience
Yes

NVIDIA Ansel
Yes

NVIDIA FreeStyle
Yes

Bus Support
PCI-E 4.0 X16

NVIDIA ShadowPlay
Yes

NVIDIA Highlights
Yes

OS Certification
Windows 10, Linux, FreeBSDx86

NVIDIA G-SYNC-Ready
Yes
Lighting Module
Programmable RGB: Aura Sync, Mystic Light, Polychrome, RGB Fusion

Game Ready Drivers
Yes

NVIDIA Studio Drivers
Yes

NVIDIA GPU Boost
Yes

Vulkan API
Yes

OpenGL
4.6

HDMI 2.1
Yes

DisplayPort 1.4a
Yes

NVIDIA Encoder
2x 8th Generation

NVIDIA Decoder
5th Generation

Accessories:
Installation Guide
Yes

Power Guide
Yes

Graphics Card Dimensions:
Length 334mm
Height 148mm
Width 3-slot

Display Support:
Multi Monitor
Yes

Maxmium Digital Resolution
7680x4320

HDCP
2.3

Standard Display Connectors
HDMI 2.1,
3x DisplayPort 1.4a
