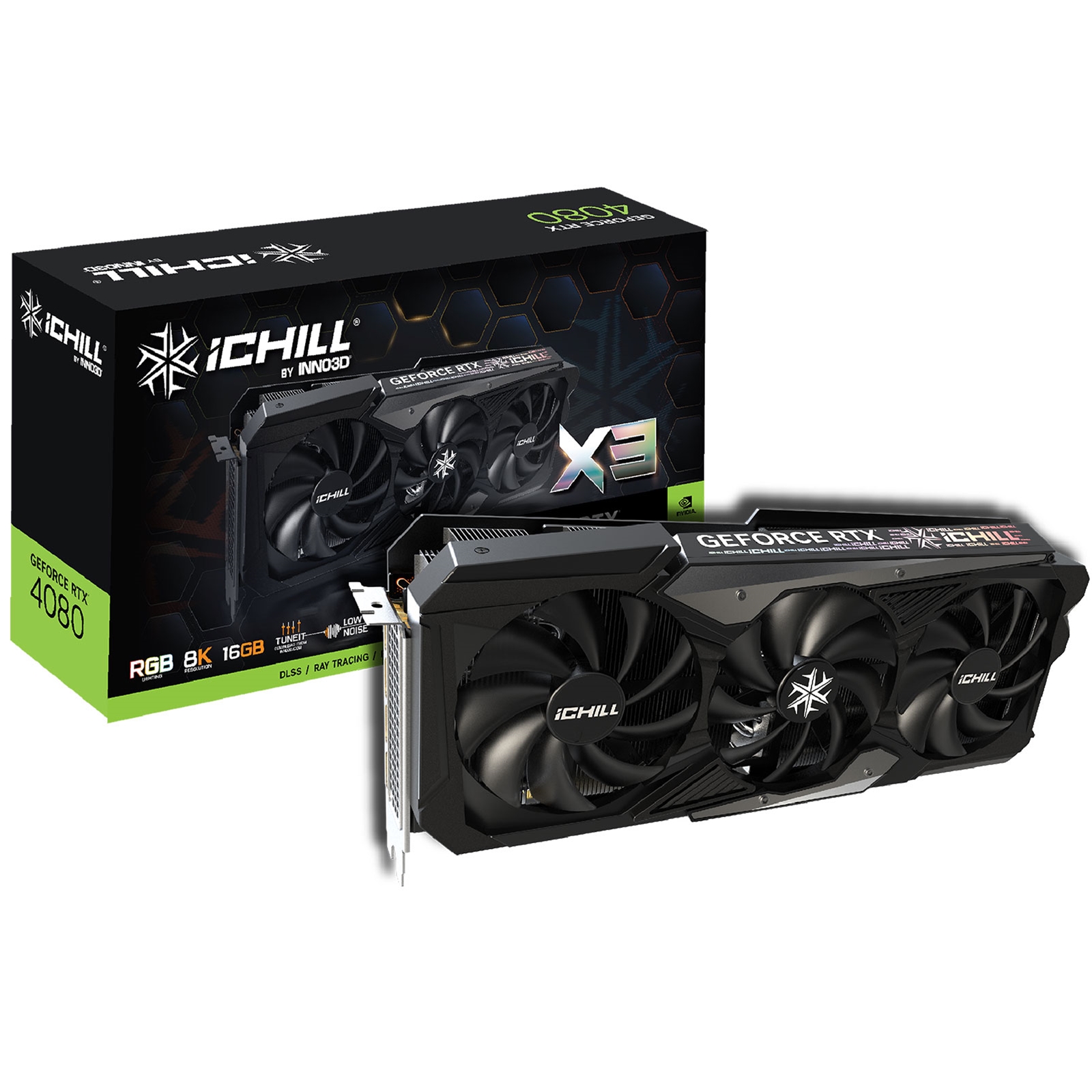

The NVIDIA GeForce RTX 4080 delivers the ultra performance and features that enthusiast gamers and creators demand.
Bring your games and creative projects to life with ray tracing and AI-powered graphics. It's powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of superfast GDDR6X memory.
GeForce RTX 40 Series: The Ultimate Platform for Gamers and CreatorsNVIDIA GeForce RTX 40-series GPUs are beyond fast for gamers and creators. They are powered by the ultra-efficient NVIDIA Ada Lovelace architecture, which delivers a quantum leap in both performance and AI-powered graphics. Enjoy realistic ray-traced virtual worlds and gaming with ultra-high FPS and the lowest latency. Discover revolutionary new ways to create content and unprecedented workflow acceleration.
Ray tracing: Hyper realistic. hyper fast.Ada architecture unleashes all the glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 series and 3rd generation RT cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3: The performance multiplier, powered by AI.DLSS is a revolutionary AI-powered graphics advancement that dramatically increases performance. Powered by new 4th Gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40-series GPUs, DLSS 3 uses AI to create more high-quality frames.
NVIDIA Reflex: Victory is measured in milliseconds.NVIDIA Reflex and GeForce RTX 40-series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Reflex, designed to optimize and measure system latency, delivers faster target acquisition, quicker reaction times, and the best target accuracy for competitive gaming.
SpecificationsGraphics Processing UnitGPU ModelAD103-300 (AD103)
ArchitectureNVIDIA Ada
Fabrication Process4 nm (TSMC 4N)
Die Size379 mm2
Transistors Count45.9B
Transistors Density121.1M TRAN/mm2
CUDAs9728
Tensor Cores304
Ray Tracing Cores76
SM76
TMUs304
ROPs112
ClocksBase Clock2205 MHz
Boost Clock2565 MHz (+2.3%)
Memory Clock2800 MHz
Effective Memory Clock22400 Mbps
Memory ConfigurationMemory Size16384 MB
Memory TypeGDDR6X
Memory Bus Width256-bit
Memory Bandwidth716.8 GB/s
API SupportDirectX12.2
Vulkan1.2
OpenGL4.6
OpenCL3.0
PerformancePixel Fillrate287.3 GPixels/s
Texture Fillrate779.8 GTexel/s
Peak FP3249.9 TFLOPS
FP32 Perf. per Watt156 GFLOPS/W
FP32 Perf. per mm2131.7 GFLOPS/mm2
PhysicalInterfacePCI-Express 4.0 x16
Height3-slot
Power Connectors1 X 16-pin
TDP/TBP> 320 W
Recommended PSU750 W
Multi-GPU SupportUnsupported
Display OutputsDisplayPort3 X (DP 1.4a)
HDMI1 X (HDMI 2.1)
