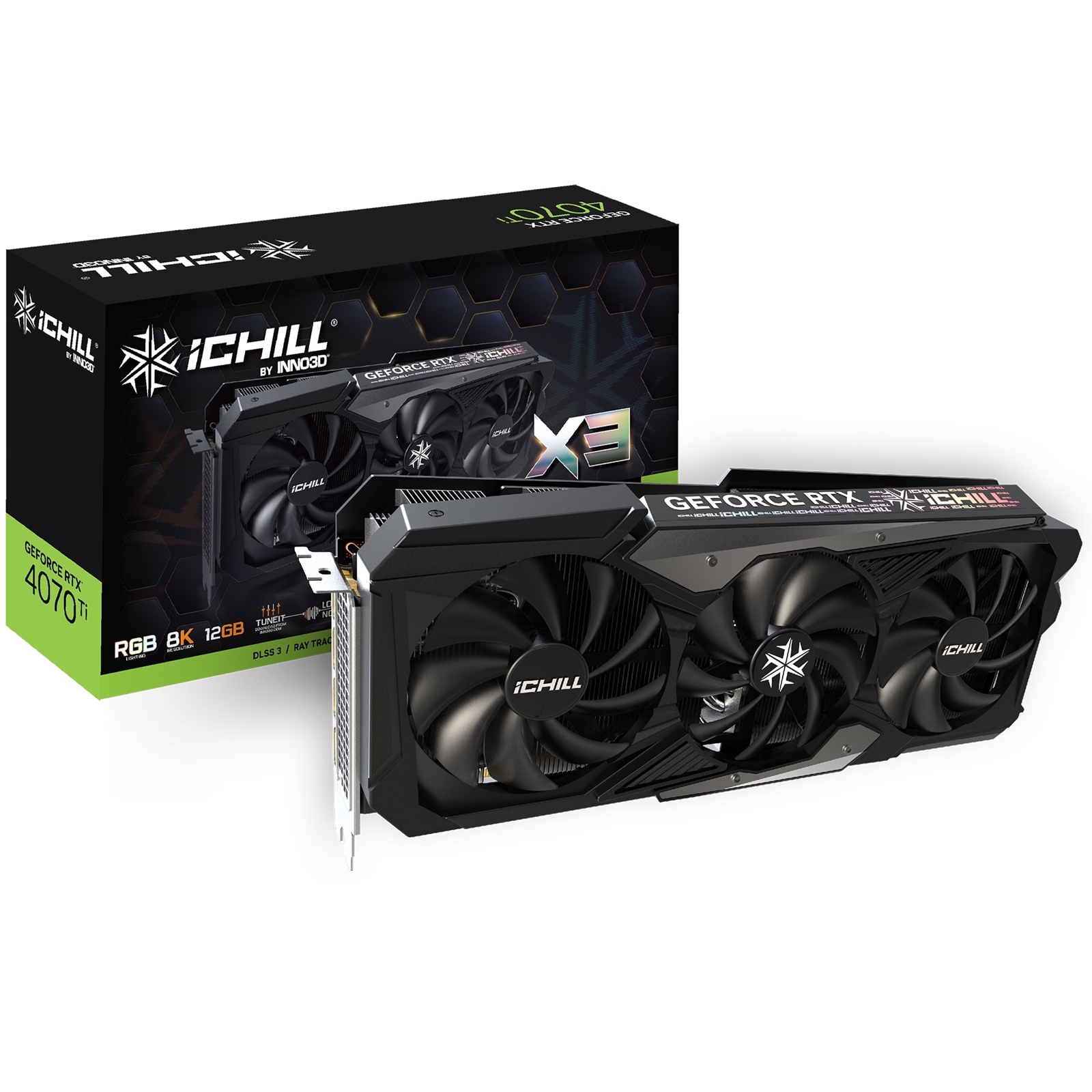

Inno3D Nvidia GeForce RTX 4070 Ti ICHILL X3 12GB GDDR6X Graphics Card

GeForce RTX 4070 Ti iCHILL X3: Faster than Fast, the Ultimate Platform for Gamers and Creators, powered by GeForce RTX 40 Series and DLSS 3

Specifications

GPU Engine Specs

CUDA Cores
7680

Boost Clock (MHz)
2670

Base Clock (MHz)
2310

Thermal and Power Spec

Minimum System Power Requirement (W)
750

Supplementary Power Connectors
2x PCIe 8-pin cables (adapter in box) OR 320 W or greater PCIe Gen 5 cable

Memory Specs

Memory Clock
21Gbps

Standard Memory Config
12GB

Memory Interface
GDDR6X

Memory Interface Width
192-bit

Memory Bandwith (GB/sec)
504

Feature Support

Real-Time Ray Tracing
Yes

Ray Tracing Cores
3rd Generation

Tensor Cores
4th Generation

NVIDIA Architecture
Ada Lovelace

Microsoft DirectX
12 Ultimate

NVIDIA DLSS
Yes

PCI Express Gen 4
Yes

NVIDIA GeForce Experience
Yes

NVIDIA Ansel
Yes

NVIDIA FreeStyle
Yes

Bus Support
PCI-E 4.0 X16

NVIDIA ShadowPlay
Yes

NVIDIA Highlights
Yes

OS Certification
Windows 11 / 10, Linux, FreeBSDx86

NVIDIA G-SYNC™-Ready
Yes

Lighting module
Programmable RGB: Aura Sync, Mystic Light, Polychrome, RGB Fusion

Game Ready Drivers
Yes

NVIDIA Studio Drivers
Yes

NVIDIA GPU Boost™
Yes

Vulkan API
Yes

OpenGL
4.6

HDMI 2.1
Yes

DisplayPort 1.4a
Yes

NVIDIA Encoder
2x 8th Generation

NVIDIA Decoder
5th Generation

Accessories
Installation Guide
Power Guide
NVIDIA Decoder

Graphics Card Dimensions

Length
334mm

Height
148mm

Width
62mm


Display Support

Multi Monitor
Yes

Maxmium Digital Resolution
7680 x 4320

HDCP
2.3

Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
