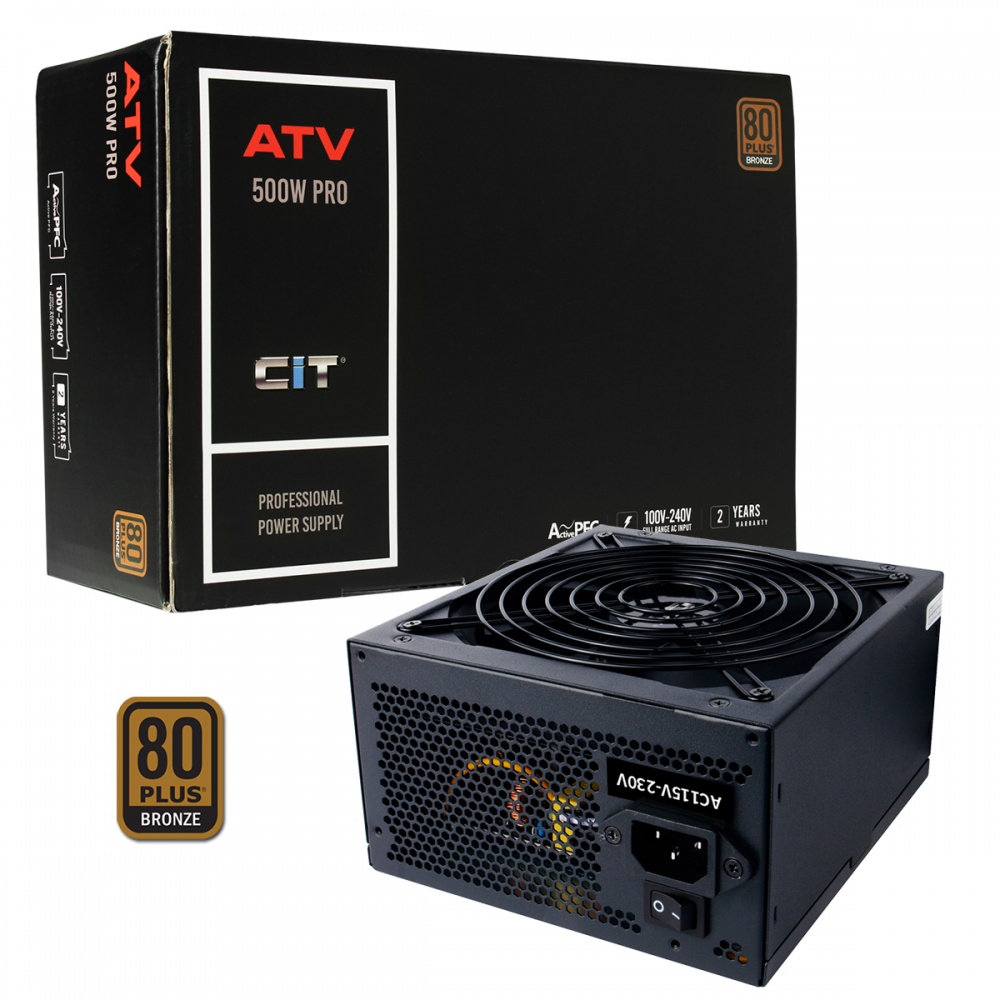

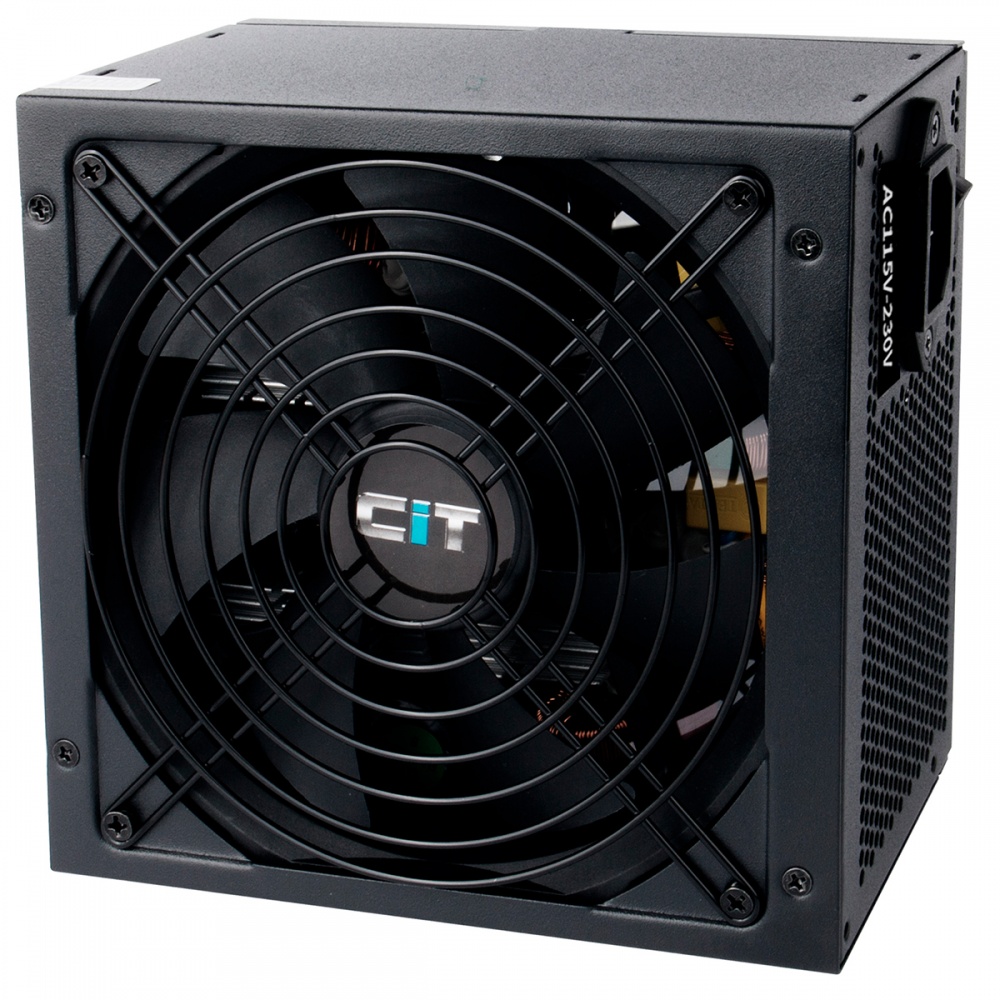

Designed to conform to the new EuP Lot 6 laws, The CiT Active 85 500WPSU is an 80+ Bronze Certified unit that offers a minimum of 85%performance at 50% load. Ideal for system integrators, this unitfeatures a low noise 12cm fan, a black coated chassis and sufficientcabling to support most entry to mid level system builds.
Key Features - Compatible with Intel ATX 12V v.2.3 and EPS 12V v.2.92standards.
- Single +12v rail provide more stability and safer poweroutput.
- Silent FDB 120mm fan for the best overall airflow and heatdissipation.
- Over voltage protection, Over power protection, shortcircuit protection and thermal overload cut-off protection.
- Safety agency approval: CE & CB.
- Low noise and ripple.
- This 12V ATX PC power supply is the best choice for yourdesktop computer.
- 80+ Bronze Certified.
- PSU Specifications
AC INPUT: 100-240VAC 7/3.5A 50-60Hz
DC Output:+3.3V +5V +12V1 -12V +5VSB
7A 8A 35A 0.5A 2A
Max: 500W

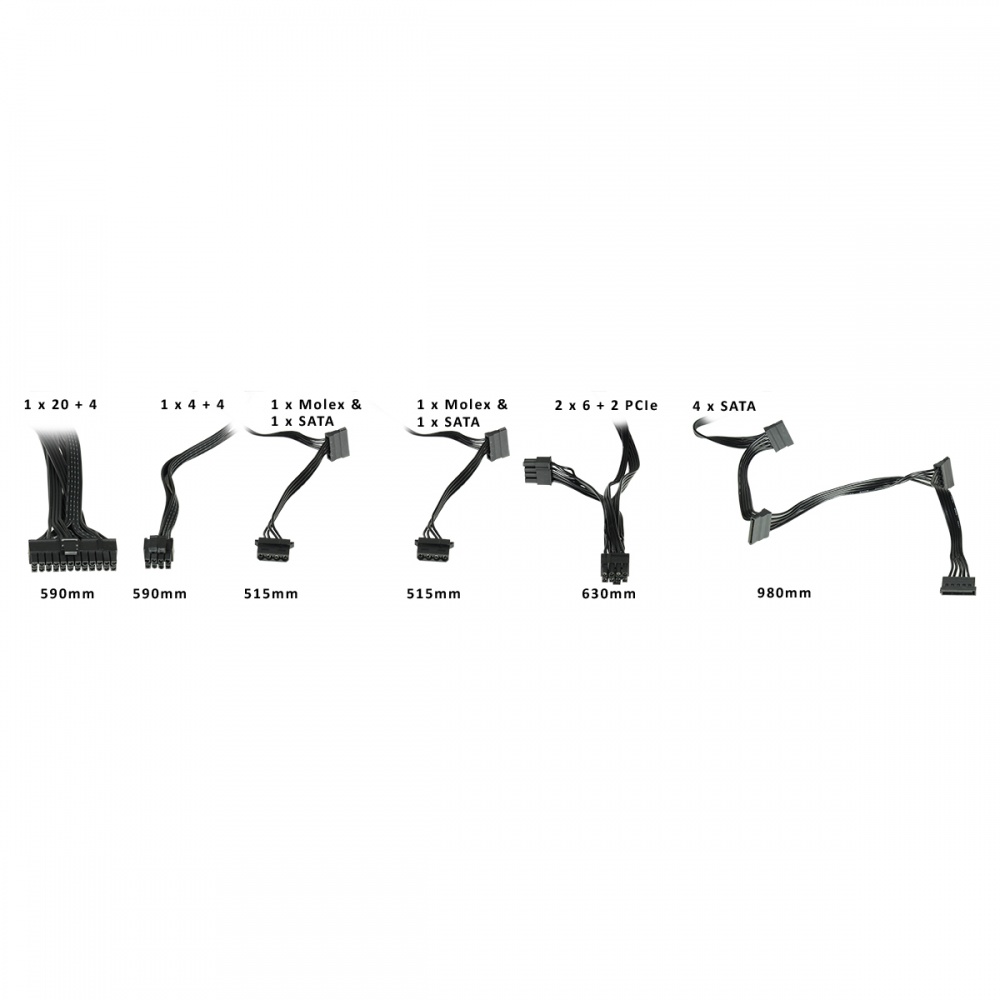

Connectors - 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 5
- 4-Pin Molex Connectors: 3
- 6+2 Pin PCI-e Connectors: 2
- Floppy Drive Connectors: 1
Detailed Specifications - Dimensions: 151mm x 86mm x141mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 7/3.5A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC (>.99)
- Power Good Signal: 100-500 ms
- Hold Up Time: >17ms
- Efficiency: > 81% (85%max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP/ OTP /OCP/ OLP/ OPP/ SCP
- Power: 500W
- Operation Temperature: 0-40°C
- Safety: CE / CB / FCC
- Cooling: 12cm Fan
- Noise: < 21 dBA
- 80 Plus Certified: Yes - 80Plus Bronze
