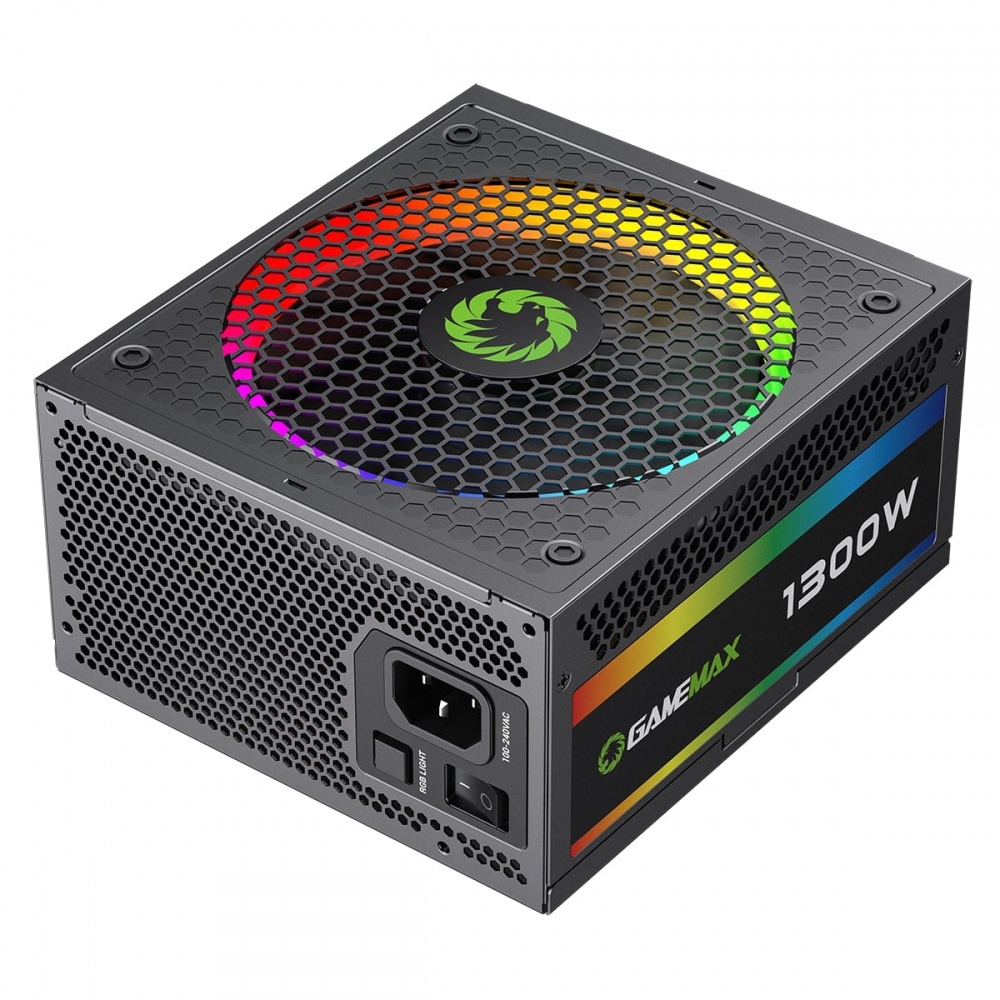

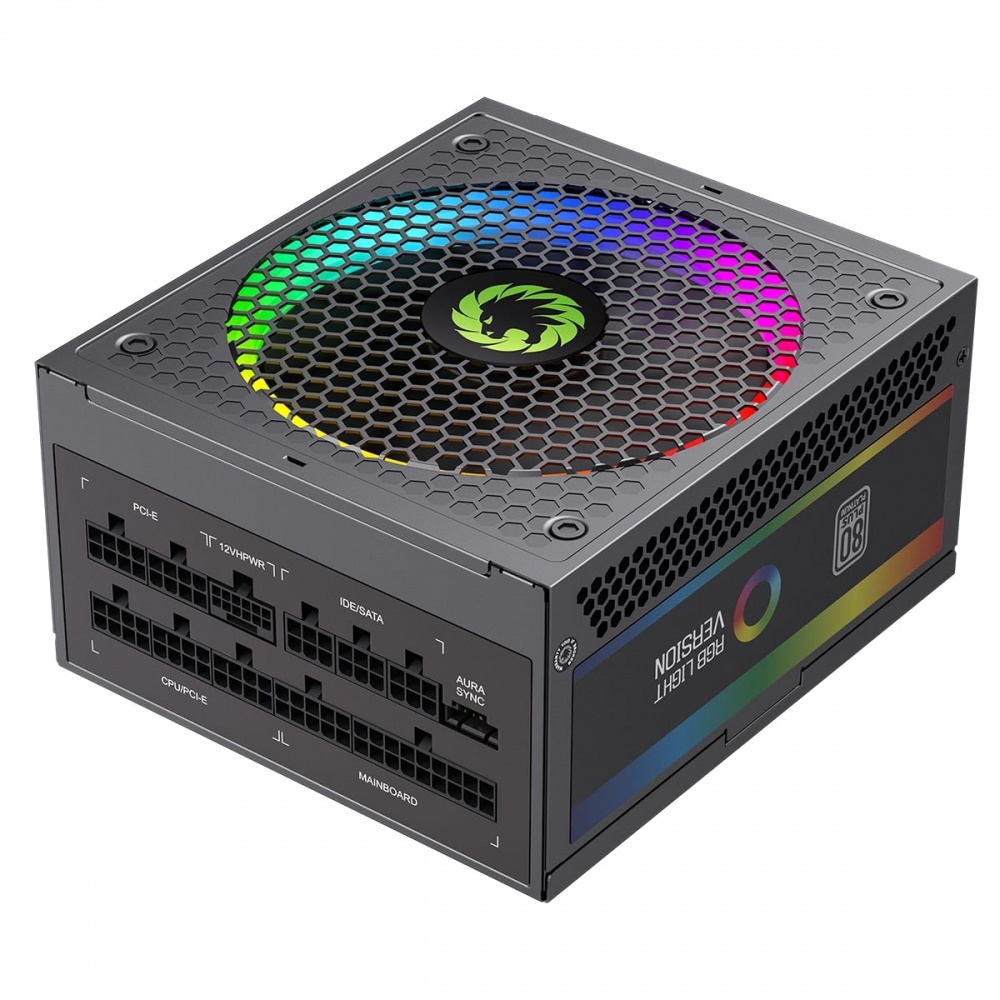

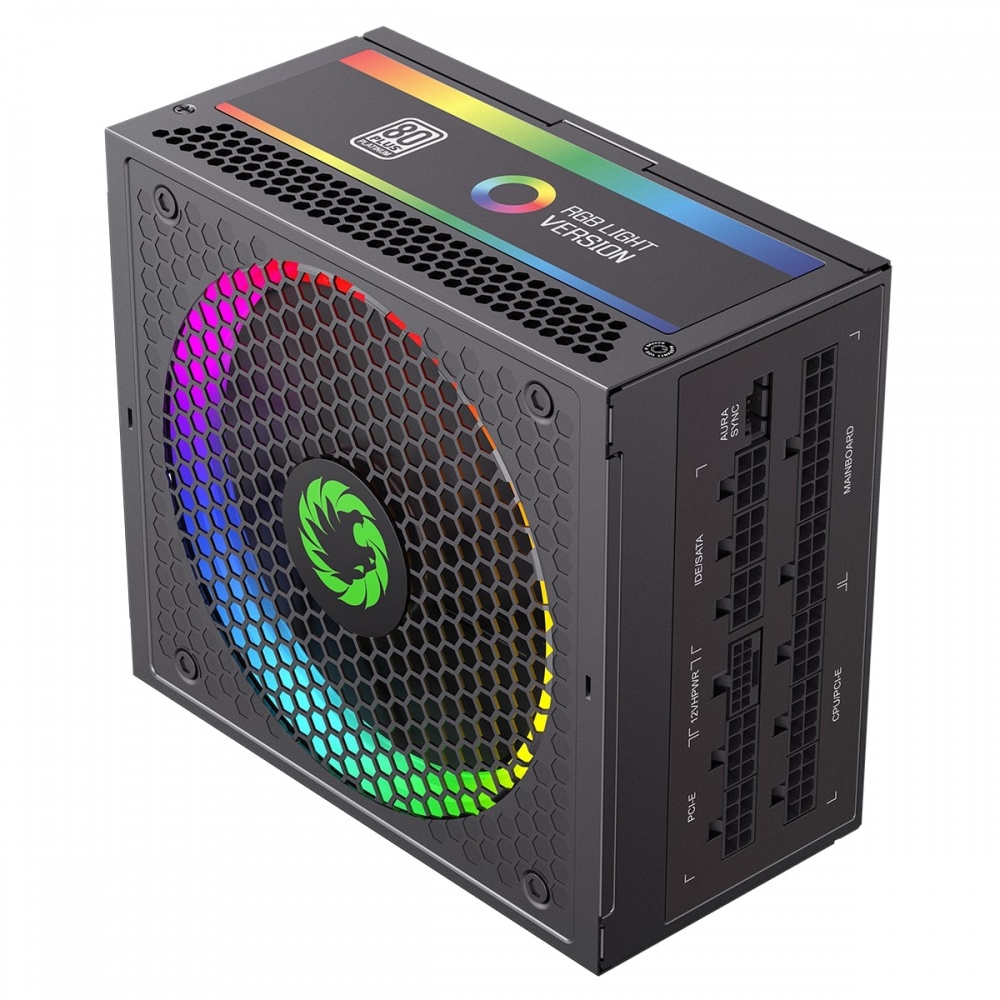

Introducing a new form of power supply, the RGB 1300W Platinum-GameMaxPremium Edition. This smart Fully modular unit is the newest additionto the brilliant line of RGB Power Supplies, equipped with superiorfeatures that guarantees a top gaming performance.
This premium power supply boasts exceptional stability and durability,featuring 80 PLUS Platinum-certified efficiencies, Japanese 105 DegreeCelsius capacitors, a fluid dynamic bearing fan and a fully modulardesign.
A full suite of top tier circuit protections ensures that the powerthat is delivered to your system is safe and reliable in anyenvironment.
Building on the success of the RGB Series, combining features of theexisting RGB Range and adding some higher-end features, GameMax havecreated a prime state of the art gaming Power supply, along with a3-year warranty.
Key Features80 PLUS Platinum Certification - Trusted with an 80 PLUS Platinumcertification and Intel C6/C7 States Ready, this powerful Power Supplyhas a high energy efficiency of 92 or higher and has been optimised towork with all generations of Intel processors to achieve maximum energysaving.
Japanese 105 Degree Celsius Capacitors - Delivering a top performanceand the reliability to match with the use of high-quality Japanese 105Degree Celsius capacitors. Other premium components help delivercontinuous and stable power, providing the greatest durability andhighest stability.
PCIE 5.0 Ready - The RGB-1300W includes a 12VHPWR 16-Pin connectoroffering a powerful and stable performance allowing the PSU to runnext-generation GPUs, RTX 3090 TI/PCIE 5.0 GPUs. Max. Power output upto 600W.
Fluid Dynamic Bearing - Using a 140mm 9 blade fan with a Fluid DynamicBearing provides high airflow and with smarter control for a silent,reliable performance and a longer lifespan.

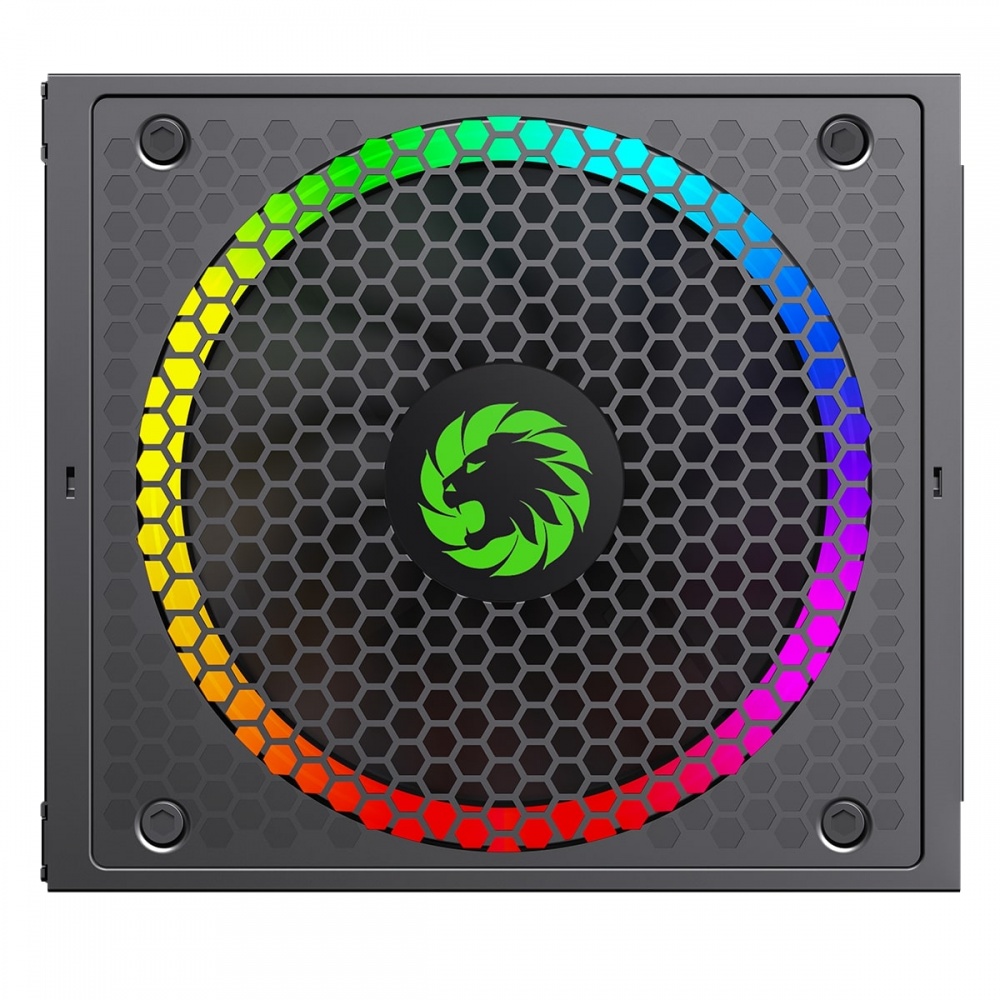

140mm ARGB Fan - A pre-installed 140mm ARGB fan included is a 256 RGBcolour cooling fan with 25 manual colour modes to choose from at thetouch of a button helps deliver beautiful lighting to the internalchassis and add some style to your build.
Motherboard Software - The ARGB lighting effects can be synced throughthe Motherboard which supports ARGB function, 5V 3-Pin Addressable RGBheader, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0& ASRock. Customise the look with endless possibilities with16.7 million static modes and 12 pre-set lighting effects.

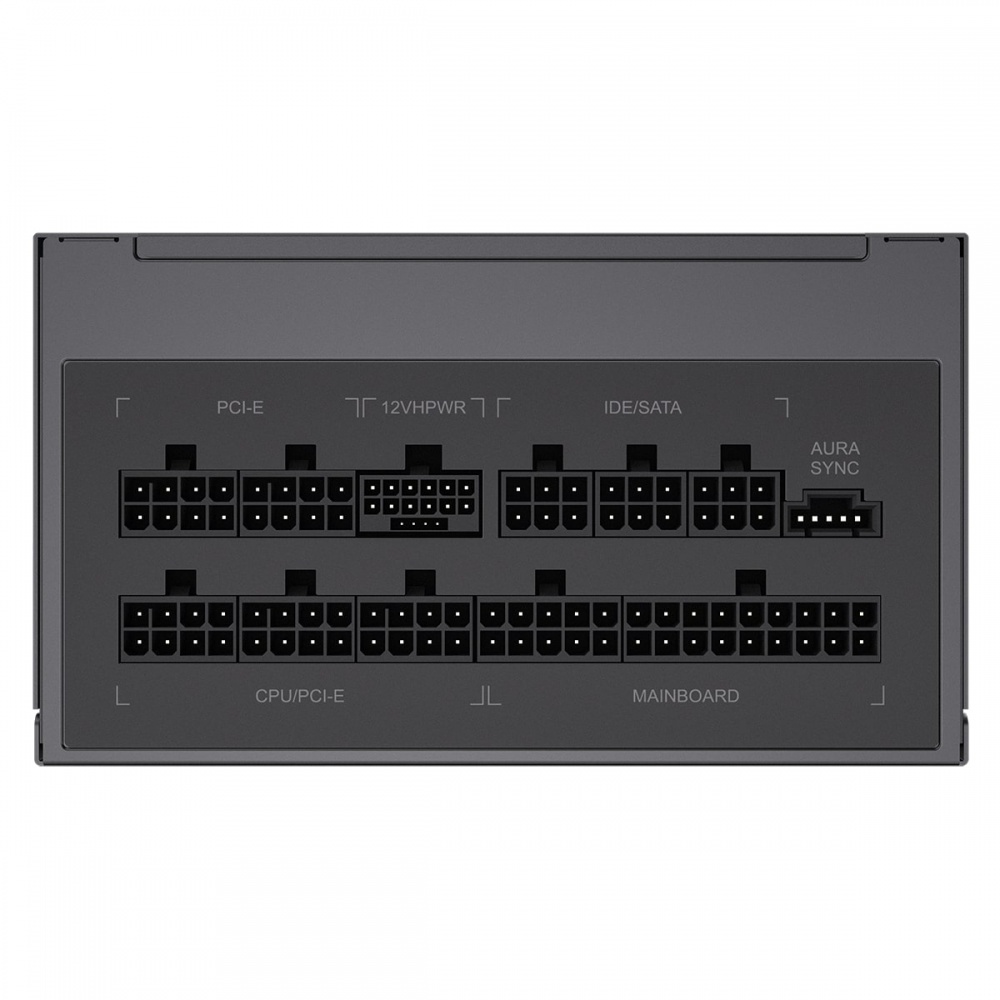

Modular Cable Configuration - A Modular cable management design letsyou use only the cables you need. Improved airflow and save space andcreate a cleaner-looking build with the low-profile flat black cables.
Hardware Protection - A large single 12-volt rail of 108A providesplenty of power to your chosen hardware and a full line up top tiercircuit protections keeps your build running strong and your hardwaresafe - OVP (Over Voltage Protection), OCP (Over Current Protection),OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (UnderVoltage Protection) & OTP (Over Temperature Protection).
Warranty -The GameMax RGB-1300 PSU comes with 3-year warranty.
SpecificationsConnectors: 12 Pin PCI-E 5.0: x 1
TechnicalSpecifications: Operation Temperature: 0-50 DegreesCelsius (derating from 100 Percent to 80 Percent from 40 Degree Celsiusto 50 Degree Celsius)
PSU SpecificationsAC INPUT: 100-240 VAC 15-8A 47-63HZ
DC
Output Max
+3.3V +5V +12V1 -12V +5VSB
20A 20A 108A 0.5A 2.5A
Max: 1300W
Connectors - 20+4 Pin Main Connectors: 1 (Modular)
- 4+4 Pin 12V Connectors: 2 (Modular)
- SATA Connectors: 10 (Modular)
- 4-Pin Molex Connectors: 3 (Modular)
- 6+2 Pin PCI-e Connectors: 4 (Modular)
- Floppy Drive Connectors: 1 (Modular)
Detailed Specifications - Dimensions: 149mm x 85mm x 168mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 15-8A
- Input Frequency Range: 47-63HZ
- PFC: Active PFC
- Power Good Signal: 100-500ms
- Hold Up Time: >17ms
- Efficiency: 92%
- MTBF: 100,000 Hours At 25 Degrees Celsius, Excl. Fan
- Protection: OPP / OVP / UVP / OCP / SCP / OTP
- Power: 1300W
- Operation Temperature: 0-50°C
- Safety: cTUVus / TUV / CB / CCC / EAC / CE / RoHS / UKCA
- Cooling: 140mm ARGB LED Fan
- Noise: <17dBA
- 80 Plus Certified: Yes - 80 Plus Platinum
