GameMax RGB series power supply offers Value and Performance. They arethe most suitable for cost/performance ratio and is the best choice fora system builder. The 12V CPU power and modern PCIe 6 + 2 Pinconnectors are ready for high-end gaming systems. There is fullelectrical protection and official safety and also the quality promiseby GameMax.
RGB Modes operation instructions:1. With the memory function, turn on the power supply again the initialstate is the same as the state of when the PSU was turned off.
2. Many different colour modes are available by pressing the RGB buttonon the front of the PSU.
3. The fan has a variety of ARGB and RGB LED lighting effects.
4. In any mode, press the RGB button for three seconds, the lights goout.
Key Features- Powerful single +12V rails offers stable DC output and supportshigh-end graphic cards and PC systems.
- 80+ Gold APFC, High-Efficiency and 90+ Certified.
- Active Power Factor rate up to 0.9.

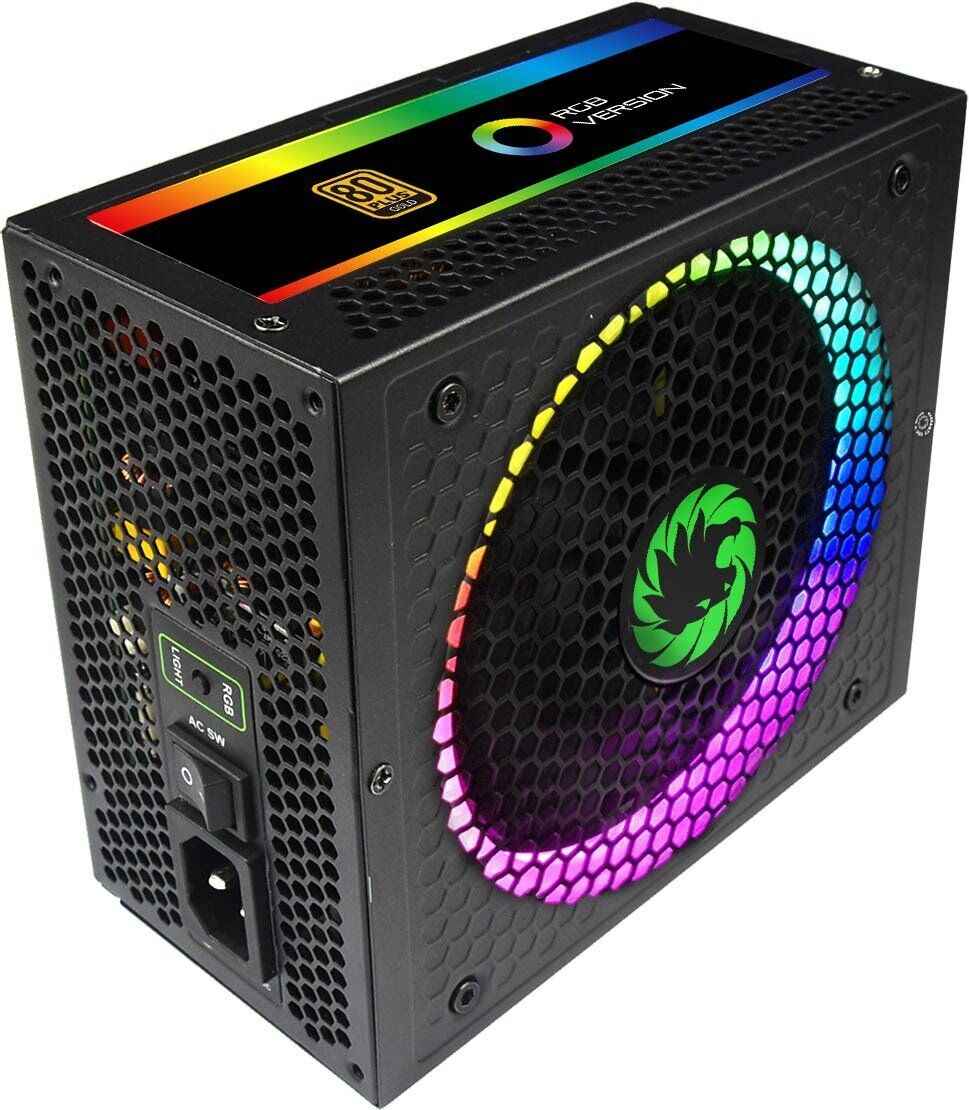

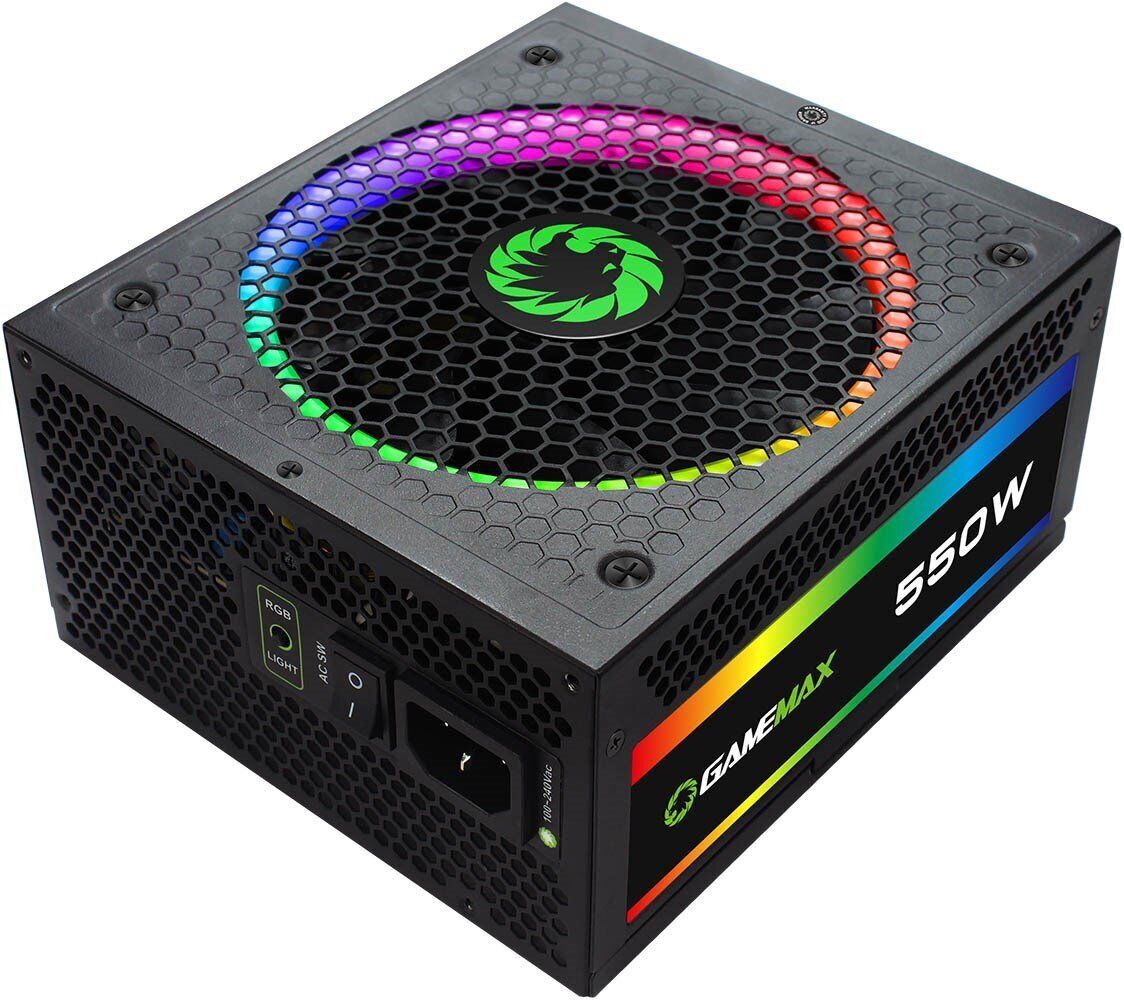

- The GameMax RGB PSU includes a 14cm RGB 256 colour fan. You canswitch between single colour and rainbow colour modes. Single coloursinclude red, green, blue, yellow, white, pink and purple.
- Honeycomb ventilation design for optimal heat dissipation.
- Full modular output connector.
- Warranty - The GameMax RGB PSU range comes with 2 year warrantyfor units bought after 1st Jan 2023.

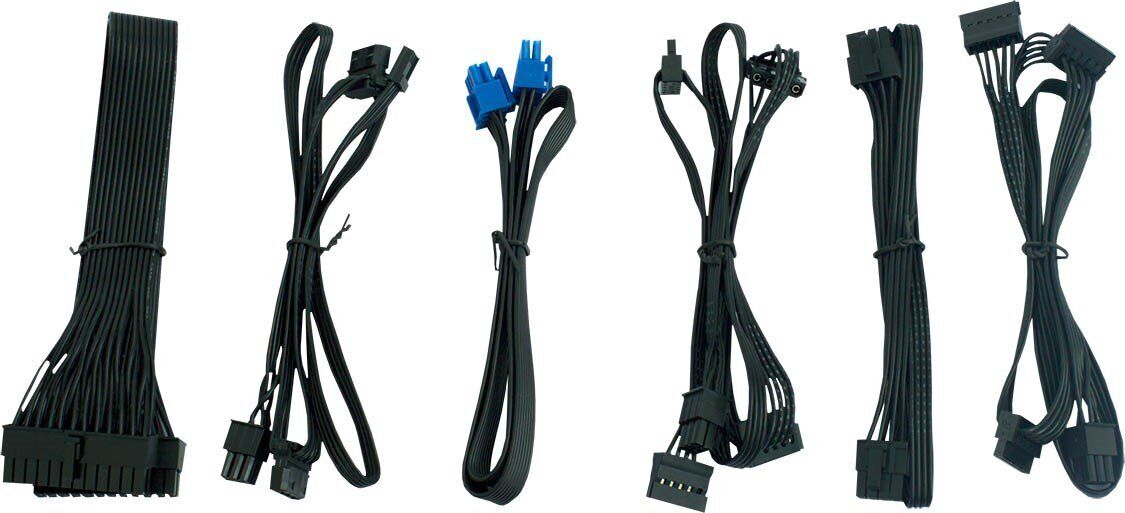

Connectors 20+4 Pin Main Connectors: 1 (Modular)
4+4 Pin 12V Connectors: 1 (Modular)
SATA Connectors: 6 (Modular)
4-Pin Molex Connectors: 3 (Modular)
6+2 Pin PCI-e Connectors: 2 (Modular)
Floppy Drive Connectors: 1 (Modular)

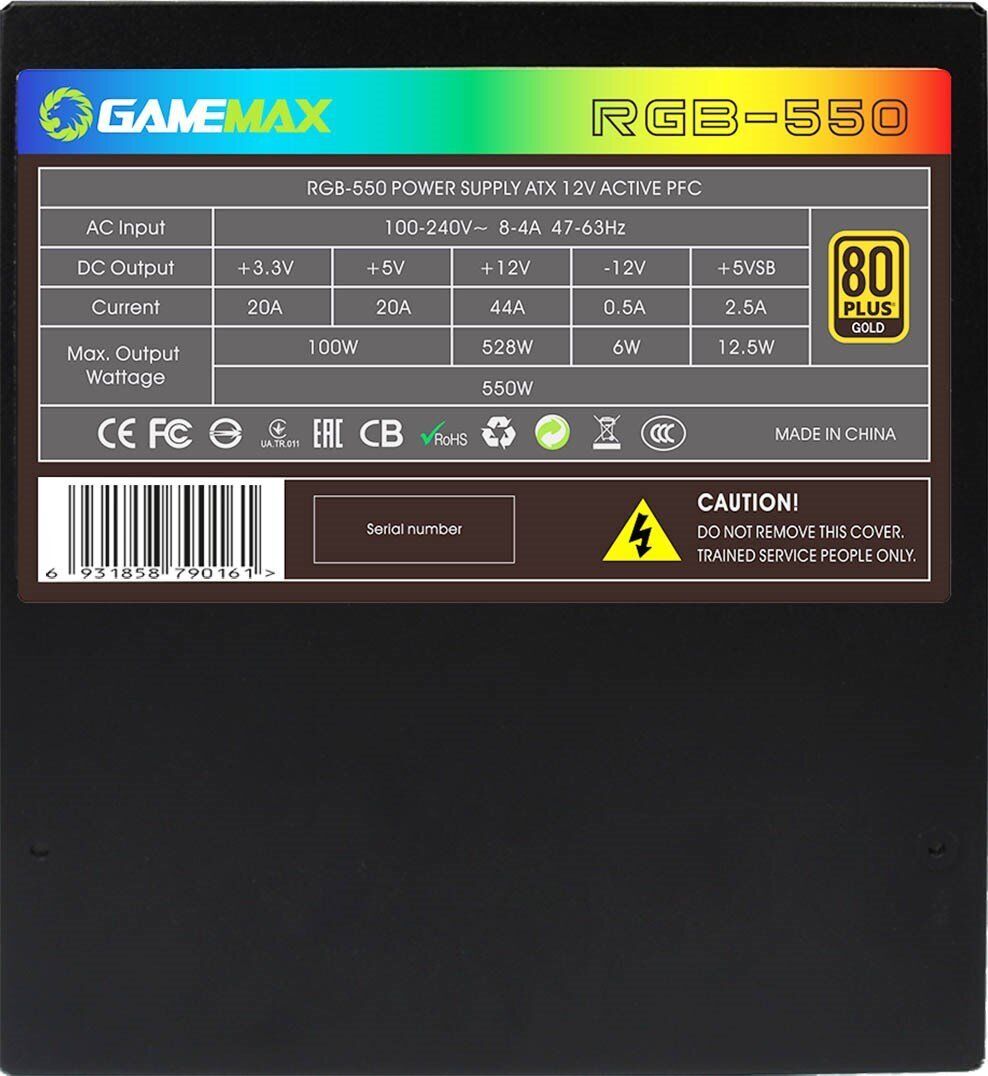

Detailed Specifications- Dimensions: 150mm x 85mm x 165mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 8-4A
- Input Frequency Range: 47-63HZ
- PFC: Active PFC >.99
- Power Good Signal: 100-500ms
- Hold Up Time: >17ms
- Efficiency: >88%
- MTBF: 100,000 Hours
- Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
- Power: 550W
- Operation Temperature: 0-40°C Nominal InputVoltage
- Safety: CE / FCC / CB
- Cooling: 140mm RGB Ultra Silent Fan
- Noise: < 17 dBA
- 80 Plus Certified: Yes - 80 Plus Gold
