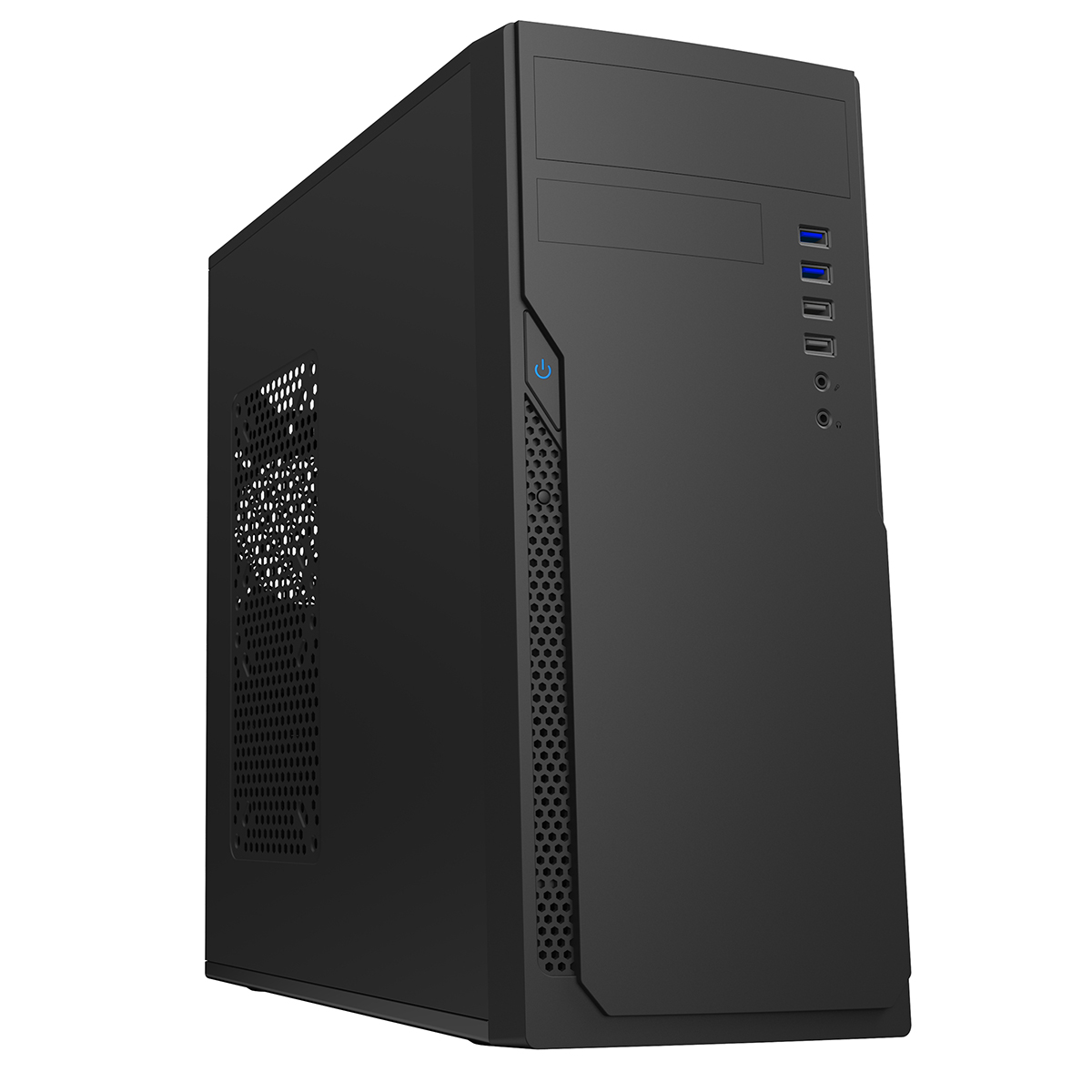

The CiT Classic Midi is a compact ATX chassis design that supports bothMicro ATX and ATX motherboards, it is aimed at business and home officesolutions. The Classic Midi is equipped with 2 x USB 3.0 and 2 x USB2.0 ports. The Classic Midi also supports a rear 80mm fan.
Key Features - Storage Capacity - Case supports up to 3 x HDD's (2.5" or3.5").
- Front I/O Ports - 2 x USB 2.0, 2 x USB 3.0 and HD Audio.
- VGA Support - Can take VGA cards up to 320mm in length.
- Motherboards - Supports ATX or Micro ATX motherboards.
- Side Panel - Intel TAC2.0 side panel vent hole design.
500WPSU Specifications | PSU Rail Output (max.): | |
| +3.3V: | 28A |
| +5V: | 30A |
| +12V: | 27A |
| -12V: | 0.3A |
| +5VSB: | 2.5A |
| PSU Connectors & Qty: | |
| 20 + 4pin ATX Mainboard: | 1 |
| 4pin +12V CPU: | 1 |
| SATA: | 2 |
| 4pin Molex: | 2 |
| FDD: | 1 |
| : | |
| Chassis Size (Without the Front panel and SidePanel): | (W) 175 x (H) 405 x (D) 330mm |
CaseSpecifications | Form Factor: | Midi Tower |
| Motherboard Support: | ATX, Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Top |
| Gaming Case: | No |
| Water Cooling: | Not Water Cooling Ready
|
| Body Material: | 0.45mm Metal |
| Front Bezel Material: | Plastic |
| Side Panel: | Vented |
| Internal Cable Management Depth: | 21mm |
| External Bays: | 1 x 5.25” External
1 x 3.5” External
|
| Internal Bays: | 3 x 3.5” Internal
3 x 2.5” Internal
|
| Drive Bay Notes: | Can have 3 x 2.5" or 3 x 3.5" or mixture of both |
| Expansion Slots: | 7 x Full Size
|
| Cooling Front: | None |
| Cooling Top: | None |
| Cooling Rear: | Space For 1 x 80mm Fan (1 x 80mm Fan inc.) |
| Cooling Side: | Space For 2 x 80mm, 2 x 92mm or 2 x 120mm Fans |
| Cooling Bottom: | Vent |
| IO Ports: | 2 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
|
| GPU Max Length: | 320mm |
| CPU Cooler Maximum Height: | 145mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | Supports Kensington Lock |
| PSU Included: | Yes |
