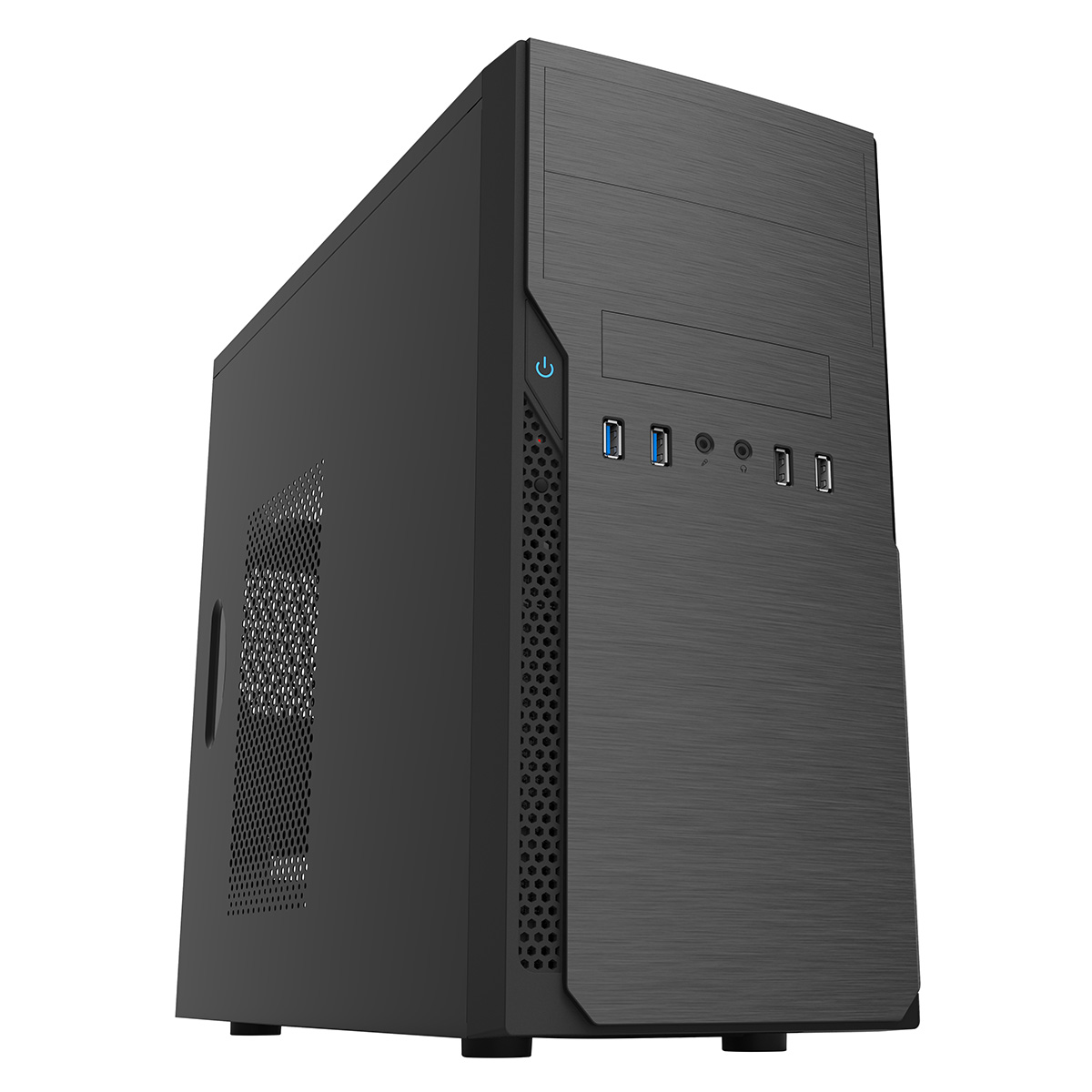

The CiT Classic Micro is a budget focused Micro-ATX chassis aimed atbusiness and home office solutions. The Classic Micro is equipped with2 x USB 3.0 and 2 x USB 2.0 ports on the front I/O panel. The ClassicMicro also includes a rear 80mm fan.
The Classic Micro is an ideal choice for anyone looking to build anoffice or home based PC on a budget.
Key Features - I/O Ports - 2 x USB 3.0, 2 x USB 2.0 ports on front panelgiving the user easy access.
- Cooling - Black chassis with 80mm rear cooling fan included.
- Chassis - Micro ATX Chassis with a simple design.
- Side Panel - Intel Approved TAC2.0 thermal chassis.
- Interior - Black coated interior.
Specifications | PSU Rail Output (max.): | |
| +3.3V: | 26A |
| +5V: | 27A |
| +12V: | 22A |
| -12V: | 0.5A |
| +5VSB: | 2.0A |
| PSU Connectors & Qty: | |
| 20 + 4pin ATX Mainboard: | 1 |
| 4pin +12V CPU: | 1 |
| SATA: | 3 |
| 4pin Molex: | 2 |
| FDD: | 1 |
| : | |
| Chassis Size (Without the Front panel and SidePanel): | (W) 173 x (H) 370 x (D) 365mm |
CaseSpecifications | Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Top |
| Gaming Case: | No |
| Water Cooling: | Not Water Cooling Ready
|
| Body Material: | 0.5mm SPCC |
| Front Bezel Material: | Plastic |
| Side Panel: | Vented |
| Internal Cable Management Depth: | 21mm |
| External Bays: | 2 x 5.25” External
1 x 3.5” External
|
| Internal Bays: | 2 x 3.5” Internal
1 x 2.5” Internal
|
| Drive Bay Notes: | |
| Expansion Slots: | 4 x Full Size
|
| Cooling Front: | Space for 1 x 80mm |
| Cooling Top: | None |
| Cooling Rear: | Space For 1 x 80mm Fan (1 x 80mm Fan inc.) |
| Cooling Side: | None |
| Cooling Bottom: | None |
| IO Ports: | 2 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
|
| GPU Max Length: | 330mm |
| CPU Cooler Maximum Height: | 160mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | Supports Kensington Lock |
| PSU Included: | Yes |
