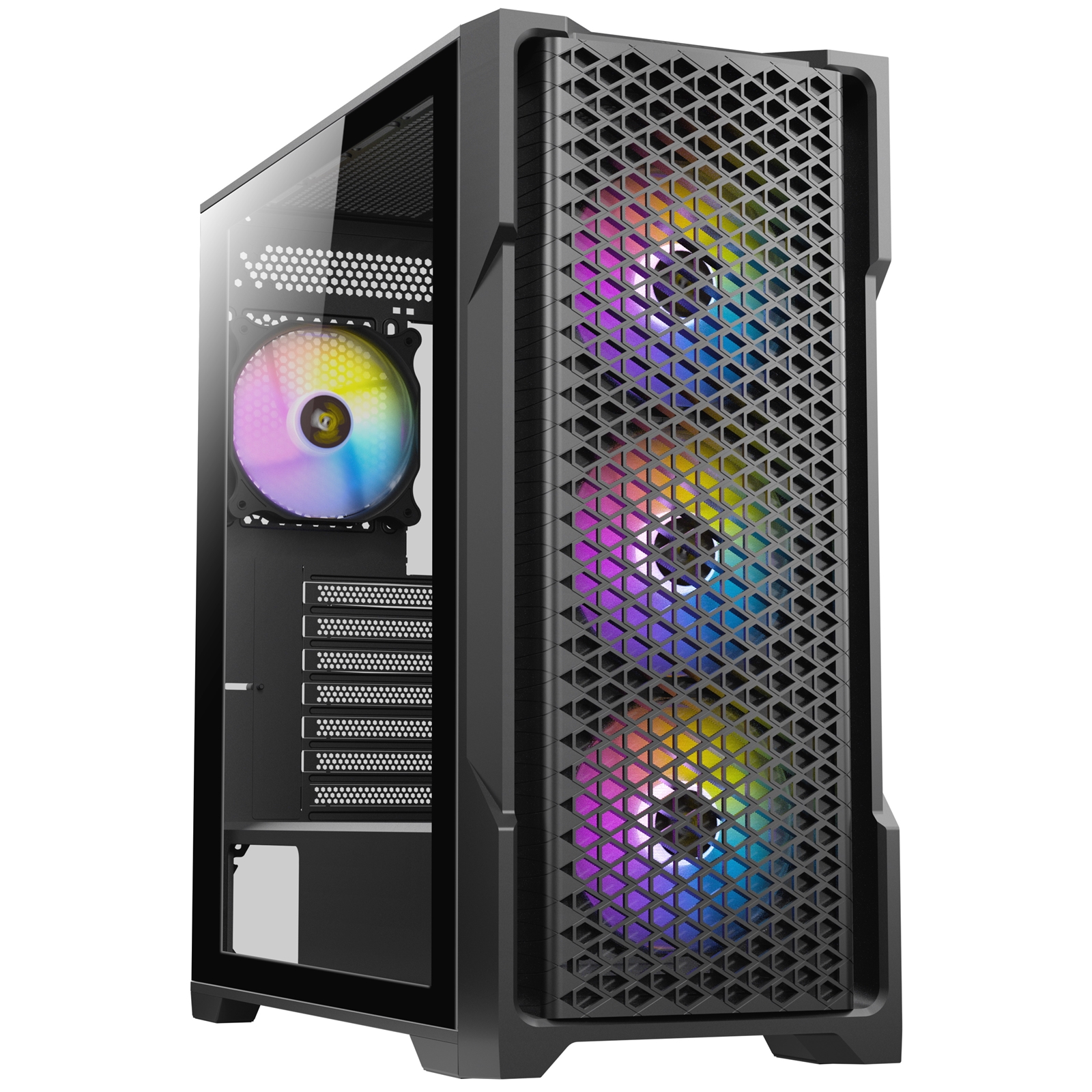

AX90Mid-Tower Gaming Case
Unique Design & Powerful Heat DissipationThe AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.
Diamond-Shaped Mesh Front PanelThe diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
MAXIMUM COOLING POTENTIALThe spacious interior can accommodate both front and upper radiators up to 360mm.
Powerful CoolingSupporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.
High-Airflow Mesh Front PanelEnlarged mesh front panel provides massive airflow.
Pre-Installed 4 x 120mm FansPull in massive air for cooling.
- Front: 3 x 120mm ARGB Fans
- Rear: 1 x 120mm ARGB Fans
In Sync with Motherboard for ARGB LightingThe built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Neat Build within Reach23mm space for cable management ensures your PC build looks neat.
Tempered Glass Side PanelShowcase your personalized hardware and custom water-cooling system.
Form FactorMid Tower
MaterialsSteel
Plastic
Mainboard SupportATX
Micro ATX
Mini-ITX
I/O PanelPower
Reset
LED Control Button
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO
Side Panel4mm Tempered glass
Drive Bays3.5" / 2.5": 2 / 1
2.5": 2
ExpansionSlots: 7
Fan SupportFront: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Power Supply Shroud: 2 x 120mm
Side: 2 x 120mm
Rear: 1 x 120mm
Included FansFront: 3 x 120mm ARGB fans
Rear: 1 x 120mm ARGB fan
Radiator SupportFront: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Side: 120 / 240mm
Rear: 120mm
ClearanceMax GPU Length: = 385mm
Max CPU Cooler Height: = 160mm
Max PSU Length (Include cable) = 220mm (with HDD) / (Include cable) = 410mm (without HDD)
Dust FiltersFront
Top
Bottom
Right Hand Side
Dimensions ( D x W x H )473 x 210 x 486mm
WeightNet: 6.77 Kgs
Gross: 7.93 Kgs
