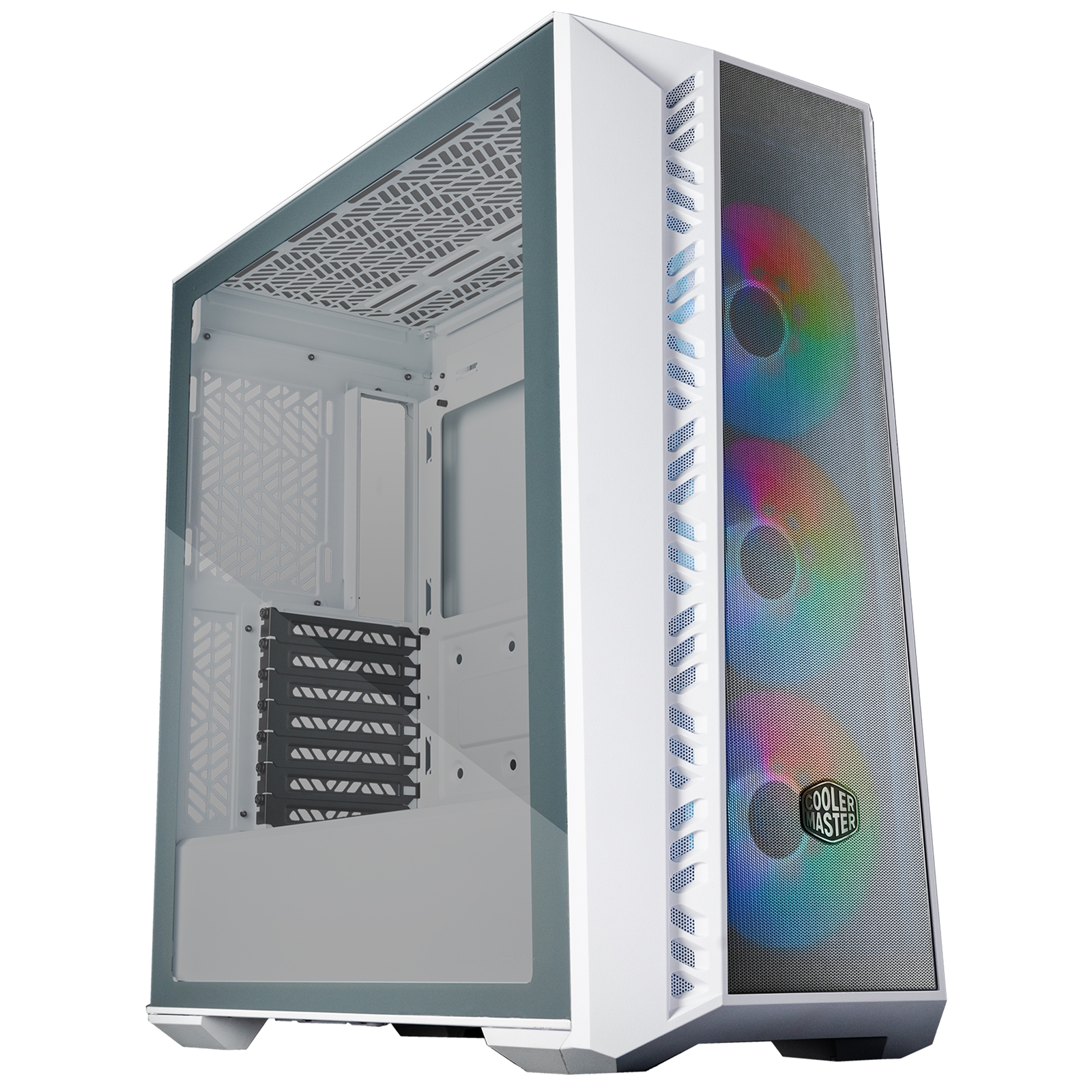

COOLER MASTER MasterBox 520 Mesh Case, White, Mid Tower, 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, Tempered Glass Side Window Panel, FineMesh Performance Front Panel, 3 x CF120 Addressable RGB Fans Included with ARGB & Fan Hub

MASTERBOX 520 MESH
REACHING NEW BRIGHTS
MasterBox 520 Mesh is the ideal chassis for satisfying the needs of both novice and experienced gamers.
- FineMesh Performance Front Panel
- Three CF120 ARGB Fans Included
- ARGB Controller Included
- Removable Top Panel
- Screwless & Tool-Free TG Side Panel
- Removable HDD cage

FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
MasterBox 520 Mesh is available in both black and white so you can choose the color that best matches your setup!

THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.

SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.

VERSATILE COOLING OPTIONS
Supports up to seven 120mm fans and dual 360mam radiators on the top and front panel.

(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.

ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.

RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.

BREATHABLE POWER SUPPLY SHROUD
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.

HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".

Model Number
MB520-WGNN-S00

Form Factor
Mid Tower

Colour
White

Materials
Mesh
Steel
ABS Plastic
Tempered Glass

Motherboard Support
E-ATX*
SSI CEB
ATX
Micro ATX
Mini ITX
(*up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion
Slots: 7

Drive Bays
3.5" Drive Bays: 2
2.5" Drive Bays: 3

I/O Panel
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C
1 x 3.5mm Headset Jack (Audio+Mic)
1 x Reset/ARGB button

Included Accessories
ARGB Fans Hub

Fan Support
Top: 3 x 120mm / 2 x 140mm
Front: 3 x 120mm / 2 x 140mm (3 x CF120 ARGB Fans Included)
Rear: 1 x 120mm

Radiator Support
Top: 120mm / 140mm / 240mm / 280mm / 360mm (recommended maximum thickness -55mm)
Front: 120mm / 140mm / 240mm / 280mm / 360mm
Rear: 120mm

Clearance
CPU Cooler: 165mm
PSU: 200mm (Recommended up to 170mm)
GFX: 410mm

Dust Filters
Bottom
Front
Top

Power Supply Support
ATX

Dimensions ( L x W x H )
502 x 210 x 498mm (Incl. Protrusions)
443 x 210 x 498mm (Body Size)

Volume
50L
