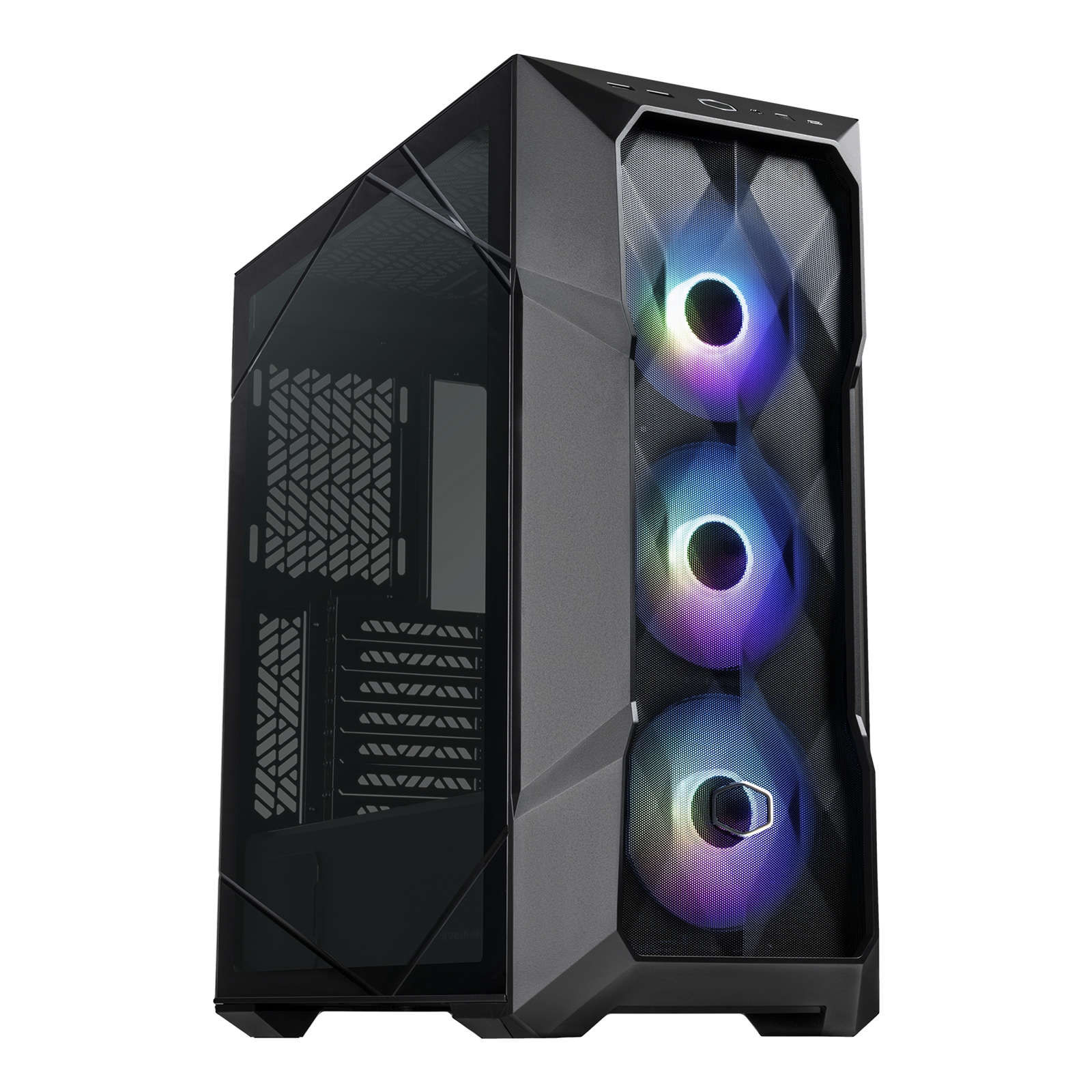

COOLER MASTER MasterBox TD500 Mesh V2 Case, Black, Mid Tower, 2 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C, Tool-Free Crystalline Tempered Glass Side Panel with Polygonal FineMesh Front Panel, 3 x CF120 Addressable RGB Fans Included with ARGB & Fan

MASTERBOX TD500 MESH V2
EXQUISITELY RUTHLESS
MasterBox TD500 Mesh V2?s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
- Polygonal FineMesh Front Panel
- Three CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free Crystalline TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included
- Removable Top Panel
- Removable HDD cage

FINEMESH PERFORMANCE FRONT PANEL
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!

THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 GEN 2 TYPE C SUPPORT
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ARGB/FAN HUB INCLUDED
The included controller allows user to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

TOOL-FREE CRYSTALLINE TG SIDE PANEL
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

VERSATILEF COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

PSU SHROUD WITH REMOVABLE COVER
MasterBox TD500 Mesh V2?s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

HARDWARE COMPATIBILITY
MasterBox TD500 Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".

Model Number
TD500V2-KGNN-S00

Series
MasterBox Series

Size
Mid Tower

Colour
Black

Materials
Steel
Mesh
Plastic
Tempered Glass

Volume
50L (excl. Protrusions)

Motherboard Support
E-ATX (up to 12" x 10.7" motherboards, may impact cable management feature)
SSI CEB
ATX
Micro ATX
Mini-ITX

Expansion
Slots: 7

Drive Bays
3.5": 2
2.5": 3

I/O Panel
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2 Type-C
1 x Audio Jack
1 x ARGB Fan Hub

Pre-Installed Fans
Front: 3 x 120mm CF120 ARGB

Fan Support
Top: 3 x 120mm / 2 x 140mm
Front: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm

Radiator Support
Top: 120mm / 140mm / 240mm / 280mm / 360mm (recommended maximum thickness -55mm)
Front: 120mm / 140mm / 240mm / 280mm / 360mm
Rear: 120mm

Clearance
CPU Cooler: 165mm
PSU: 200mm (Recommended up to 170mm)
GFX: 410mm
Cable Routing: 19mm (Behind Motherboard Tray)

Dust Filters
Front
Top
Bottom

Power Supply Support
Bottom Mount
ATX

Dimensions ( L x W x H )
499 x 210 x 500mm (incl. Protrusions)
430 x 210 x 477mm (excl. Protrusions)
