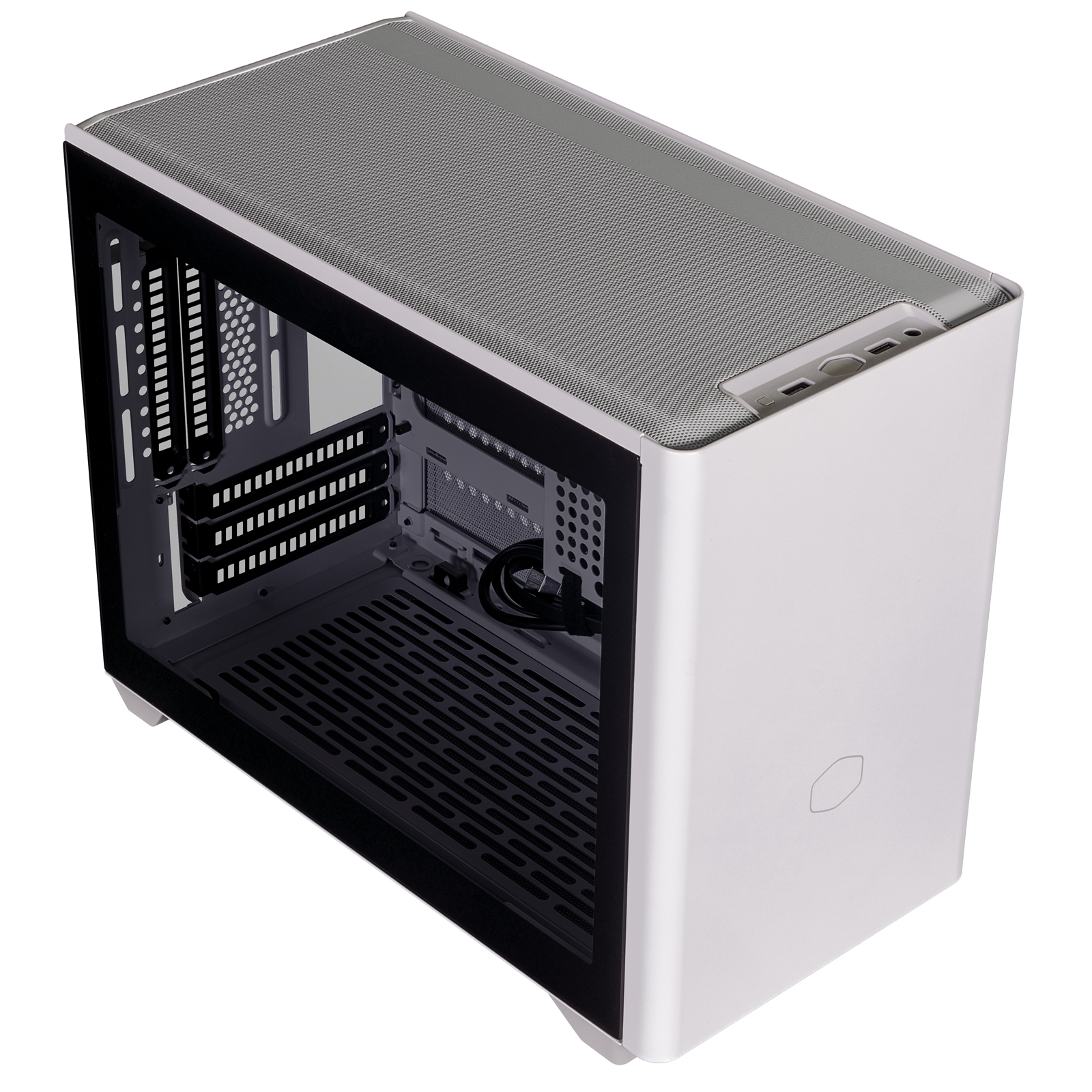

Cooler Master MasterBox NR200P Mini-ITX 2 x USB 3.2 Gen 1 Type-A Tempered Glass Side Window Panel White Case

MASTERBOX NR200P
BIG FEATURES, SMALL SIZE
- Limited Size, Unlimited Options
- Unrestricted Cooling Potential
- Triple-slot GPU support and Included Vertical Riser Cable
- Easy, Tool-free access
- 360 Degree Accessibility
- Multiple motherboard support options
- Out-of-the-box Custom Cooling Support
- High quality materials

STYLE WITHOUT SACRIFICE
The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.
Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilize the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.

LIMITED SIZE, UNLIMITED OPTIONS
The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.

UNRESTRICTED COOLING POTENTIAL
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can?t be held back.

TRIPLE-SLOT GPU SUPPORT AND INCLUDED VERTICAL RISER CABLE
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

EASY, TOOL-FREE ACCESS
All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

360 DEGREE ACCESSIBILITY
Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

HIGH QUALITY MATERIALS
Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions

OUT-OF-THE-BOX CUSTOM COOLING SUPPORT
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.

MULTIPLE MOTHERBOARD SUPPORT OPTIONS
Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.

CUSTOMIZATION - 3D PRINTABLE FEET
During the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought "why not share the iterations with our users?" The team unanimously agreed with this direction.

As a result, end users can 3D print a selection of different shapes and sizes, and even choose the color based on the filament they print with.

CUSTOMIZATION - 3D PRINTABLE ATX PSU BRACKET
Higher Position: Incompatible with front-most top mounted fan. 140/150mm are recommended for maximum compatibility with GPUs longer than 240mm.
Lower Position: Fully compatible with 2x 120mm fans in the top panel.
Max GPU length supported: 240mm

SICKLEFLOW PWM FANS INCLUDED
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.

Model Number
MCB-NR200P-WGNN-S00

Series
MasterBox Series

Form Factor
Mini-ITX

Colour
White

Materials
Steel
Plastic
Mesh
Tempered Glass

Motherboard Support
Mini-DTX
Mini-ITX
Max MB size: 244 x 226mm (L x H)

Expansion
Slots: 3

Drive Bays
5.25": 0
3.5": 1 (Max. 2)
2.5"/3.5" Combo: 1
2.5": 2 (Max. 3)

I/O Panel
2 x USB 3.2 Gen 1 Type-A
1 x 3.5mm Headset Jack (Audio+Mic)

Pre-Installed Fans
Top: 2 x 120mm 650-1800RPM PWM SickleFlow Fans
Front: None
Rear: None
Bottom: None

Cooling Support
Top: 2 x 120mm
Rear: 1 x 92mm
Bottom: 2 x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Side: 2 x 120 / 140mm

Radiator Support
Top: None
Rear: 92mm (not compatible with vertical GPU installation)
Bottom: 120mm / 240mm (recommended for custom loops only)
Side: 120mm / 140mm / 240mm / 280mm (max width 141mm, not compatible with vertical GPU installation)

Clearances
CPU Cooler: 76mm (GPU in vertical position) / 153mm (tempered glass side panel) / 155mm (vented steel side panel)
PSU: 130mm
GFX: L: 330mm (incl. power connector) / H: 156mm (incl. power connector) / W: 60mm (triple slot)

Dust Filters
Top
Bottom
Left side
Right side

PSU Support
SFX
SFX-L

Dimensions( L x W x H )
376 x 185 x 292mm incl. Protrusions
360 x 185 x 274mm excl. Protrusions

Volume
18.25L (Exlc. Protrusions)

Weight
5.1 kg

Accessories
1 x PCIe 3.0 x16 riser cable

Notes
Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
