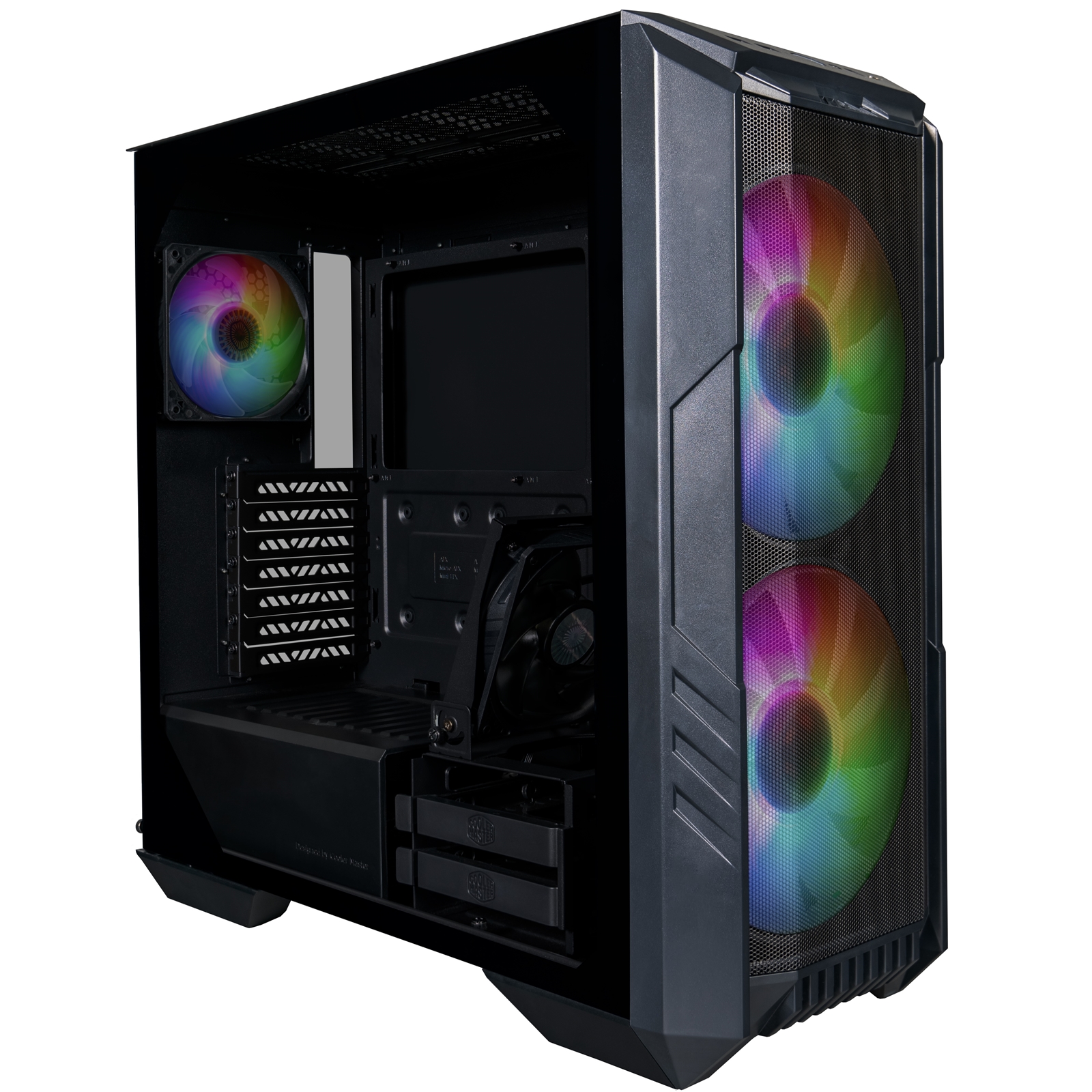

COOLER MASTER HAF 500 Case, Black, Mid Tower, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, Screwless & Tool-Free Tempered Glass Side Window Panel, Mesh Front Panel, Dual 200mm Addressable RGB Fans, Rotatable GPU Fan

HAF 500
HOMECOMING CLASSIC
- Mesh Front Panel
- Dual 200mm ARGB Fans
- Rotatable GPU Fan
- USB 3.2 Gen 2 Type C Support
- Screwless & Tool-Free TG Side Panel Design
- Removable Top Panel
- Versatile Cooling Options

HOMECOMING CLASSIC
Cooler Master?s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.

Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

MESH FRONT PANEL
Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.

DUAL 200MM ARGB FANS
Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.

ROTATABLE GPU FAN
A 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.

SCREWLESS & TOOL-FREE TG SIDE PANEL DESIGN
The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

USB 3.2 GEN 2 TYPE C SUPPORT
USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

VERSATILE COOLING OPTIONS
Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Model Number
H500-KGNN-S00

Form Factor
Mid Tower

Colour
Black

Materials
Steel, Mesh, Plastic, Tempered Glass

Dimensions ( L x W x H )
516 x 224 x 510mm (Incl. Protrusions)

Motherboard Support
E-ATX*
SSI CEB
ATX
Micro ATX
Mini-ITX
*Up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features

Expansion
Slots: 7

Drive Bays
5.25": N/A
2.5" / 3.5" Combo: 2
2.5": 2

I/O Panel
2 x USB 3.2 Gen 1 (Formerly USB 3.0)
1 x USB 3.2 Gen 2 Type-C
1 x Single Audio Jack
1 x Reset/ARGB Button

ARGB Controller
ARGB Hub

Pre-Installed Fans
Front: 2 x 200mm ARGB Fans
Rear: 1 x 120mm SickleFlow PWM ARGB Fan
Top of HDD Cage: 1 x 120mm SickleFlow PWM (GPU Fan)

Fan Support
Top: 3 x 120mm / 2 x 140mm / 2 x 200mm
Front: 3 x 120mm / 2 x 140mm / 2 x 200mm (200mm mounting hold spacing 154 x 154 W / up to 30mm Thickness)
Rear: 1 x 120mm
Top of HDD Cage: 1 x 120mm

Radiator Support
Top: 120mm / 140mm / 240mm / 280mm / 360mm
Front: 120mm / 140mm / 200mm / 240mm / 280mm / 360mm
Rear: 120mm

Clearances
CPU Cooler: 167mm
PSU: 180mm
GFX: 410mm
Cable Routing: 30mm (Behind motherboard tray)

Dust Filters
Top
Bottom

Power Supply Support
Bottom Mount
ATX
