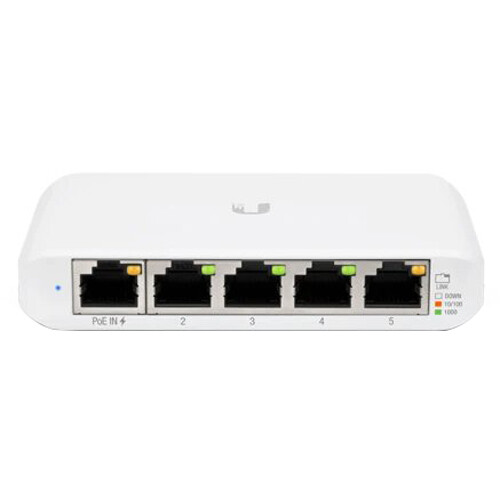

Ubiquiti USW-FLEX UniFi Switch Flex 5 Port Indoor/Outdoor Gigabit PoE Switch

5-Port Layer 2 Gigabit Switch with PoE Support
The UniFi Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.

PoE Flexibility
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Description
5-Port managed PoE switch with (1) 802.3at/bt (PoE+/PoE++) input port and (4) 802.3af (PoE) Gigabit Ethernet ports

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Specifications

Weight
230 g
(8.11 oz)

Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports

Management Interface
Ethernet In-Band

PoE Out
802.3af (Pins 1, 2+; 3, 6-)

Max Power Consumption (Excluding PoE Output)
5W

Max PoE Wattage Per Port
15.4W

Total PoE Power Budget
Powered by 802.3af - 8w
Powered by 802.3at - 20W
Powered by 802.3bt - 46W

Voltage Range
44 - 57V
