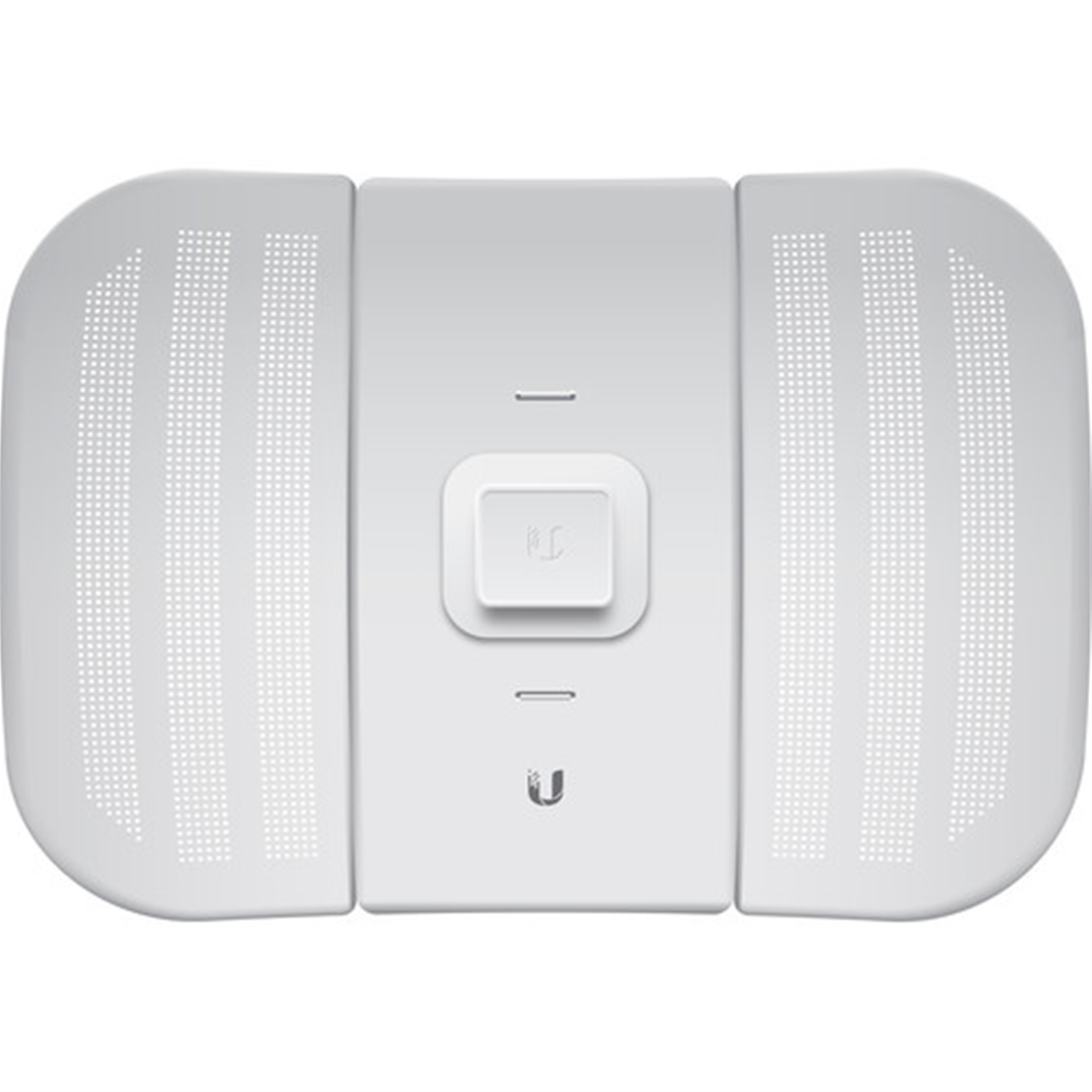

The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.
High-Gain, Directional AntennaThe LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial DesignFeaturing the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in WeightA lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
The Most Cost-Effective airMAX CPE YetSpecificationsThroughput100+ Mbps
Gain23 dBi
Dimensions - No Mount362 x 267 x 184 mm (14.25 x 10.51 x 7.24")
Weight - No Mount750 g (24.11 oz)
Mounting KitPole Mounting Kit (Included)
Maximum Power Consumption4W
Power Supply24V, 0.2A PoE Adapter (Included)
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4
ETSI SpecificationEN 302 326 DN2
ESD/EMP Protection± 24 KV Contact / Air
ProcessorAtheros MIPS 74Kc, 533 MHz
Memory64MB
Network Interface(1) 10/100 Ethernet Port
Operating FrequencyWorldwide: 5150 - 5875 MHz
Output Power25 dBm
Gain23 dBi
Max. VSWR1.5:1
