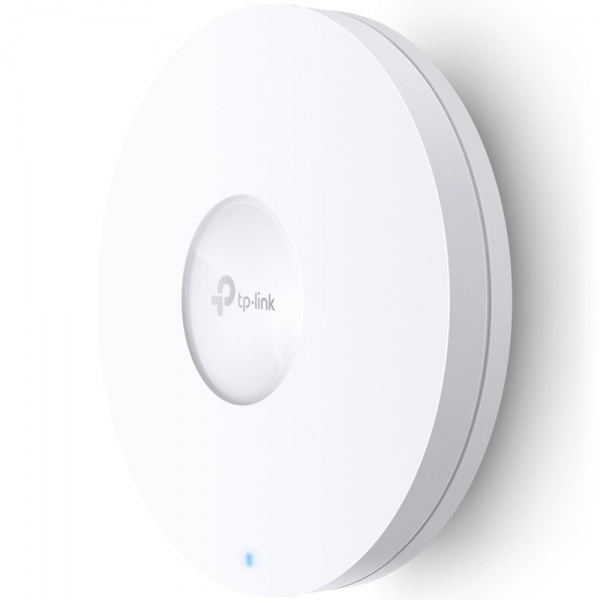

TP-Link Omada EAP660 HD AX3600 Wireless Access Point, Dual Band, Multi-Gigabit, Ceiling Mount, Wi-Fi 6

Ultra-High Performing AX3600 Enterprise Wireless for High-Density Environments

High-Density Connectivity with 4x Increased Capacity
OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks.

Airtime Fairness
Increases average network throughput in heavily congested environments.

Specifications

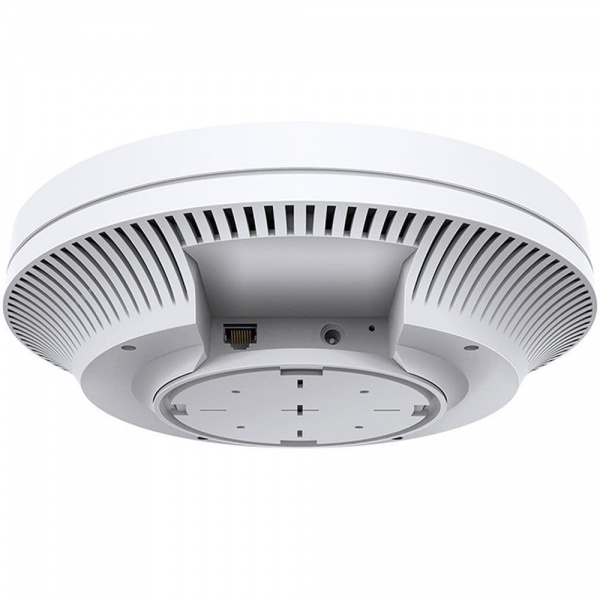

Interface
1 x 2.5 Gbps Ethernet Port (supports IEEE 802.3at PoE+)

Button
Reset

Power Supply
802.3at PoE+
12 V DC

Power Consumption
EU: 18.5 W
US: 21.5 W

Dimensions (W x D x H)
243 x 243 x 64 mm (9.6 x 9.6 x 2.5 in.)

Antenna Type
Internal Omni
2.4 GHz: 4 x 4 dBi
5 GHz: 4 x 5 dBi

Mounting
Ceiling/Wall Mounting (kits included)

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps

Wireless Functions
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

Management
Omada App

Centralised Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300 - sold separately, see accessories tab)
Omada Hardware Controller (OC200 - sold separately, see accessories tab)
Omada Software Controller

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Other Specifications

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux

Environment
Operating Temperature: 0C – 40C (32F – 104F)
Storage Temperature: -40C – 70C (-40F – 158F)
Operating Humidity: 10% – 90% RH non-condensing
Storage Humidity: 5% – 90% RH non-condensing

Package Contents
1 x TP-Link EAP660 HD
1 x Power Adapter
1 x Ceiling/Wall Mounting Kit
1 x Installation Guide
