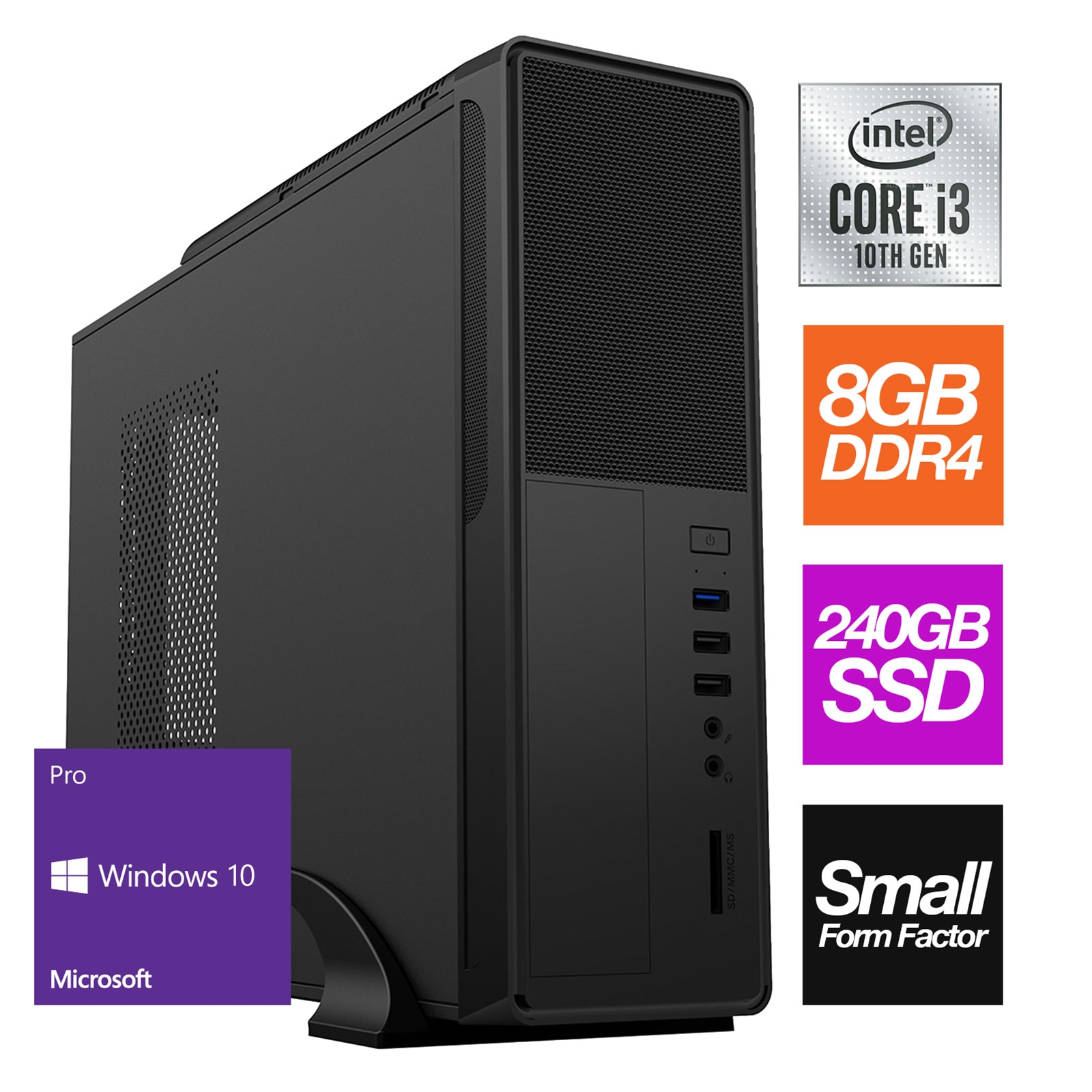

Small Form Factor - Intel i3 10105 Quad Core 8 Threads 3.70GHz (4.40GHz Boost), 8GB RAM, 240GB SSD, No Optical, with Windows 10 Pro - Small Foot Print for Home or Office Use - Pre-Built PC

The refreshed Intel Core i3-10105 quad-core processor with Hyperthreading is optimised for everyday computing, with up to 4.4GHz boost, a low 65W TDP, Intel UHD Graphics and included stock cooling.

Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.


Product Description
Small Form Factor - Intel i3 10105 Quad Core 8 Threads 3.70GHz (4.40GHz Boost), 8GB RAM, 240GB SSD, No Optical, with Windows 10 Pro Installed - Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i3 10105 4 Core Processor Processor 8 Threads, 3.7GHz up to 4.4Ghz Turbo Comet Lake Refresh Socket LGA 1200 6MB Cache

Processor Cores
4

Processor Threads
8

Core Clock Speed
3.70GHz

Core Boost Speed
4.40GHz

Memory
Netac 8GB No Heatsink (1 x 8GB) DDR4 3200MHz DIMM System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Transcend 240GB, 2.5" SATA III SSD

Format
2.5" SSD

Max Read/Write Speeds
Sequential Read (CDM): 500 MB/s
Sequential Write (CDM): 330MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
On-Chip Intel UHD Graphics 610
GPU Base Speed
350 MHz
GPU Max Speed
1.05GHz

Graphics Card I/O
N/A

Operating System
Microsoft Windows 10 Professional 64bit English OEI DVD Operating Software

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
N/A

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Gigabyte H510M S2H Motherboard, Intel Socket 1200, Micro ATX, DDR4, Ultra Durable, PCIe 4.0, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6, HDMI/DVI/VGA/DisplayPort

Expansion Slot
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
* Supported by 11th Generation processors only.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
* The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
7 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
