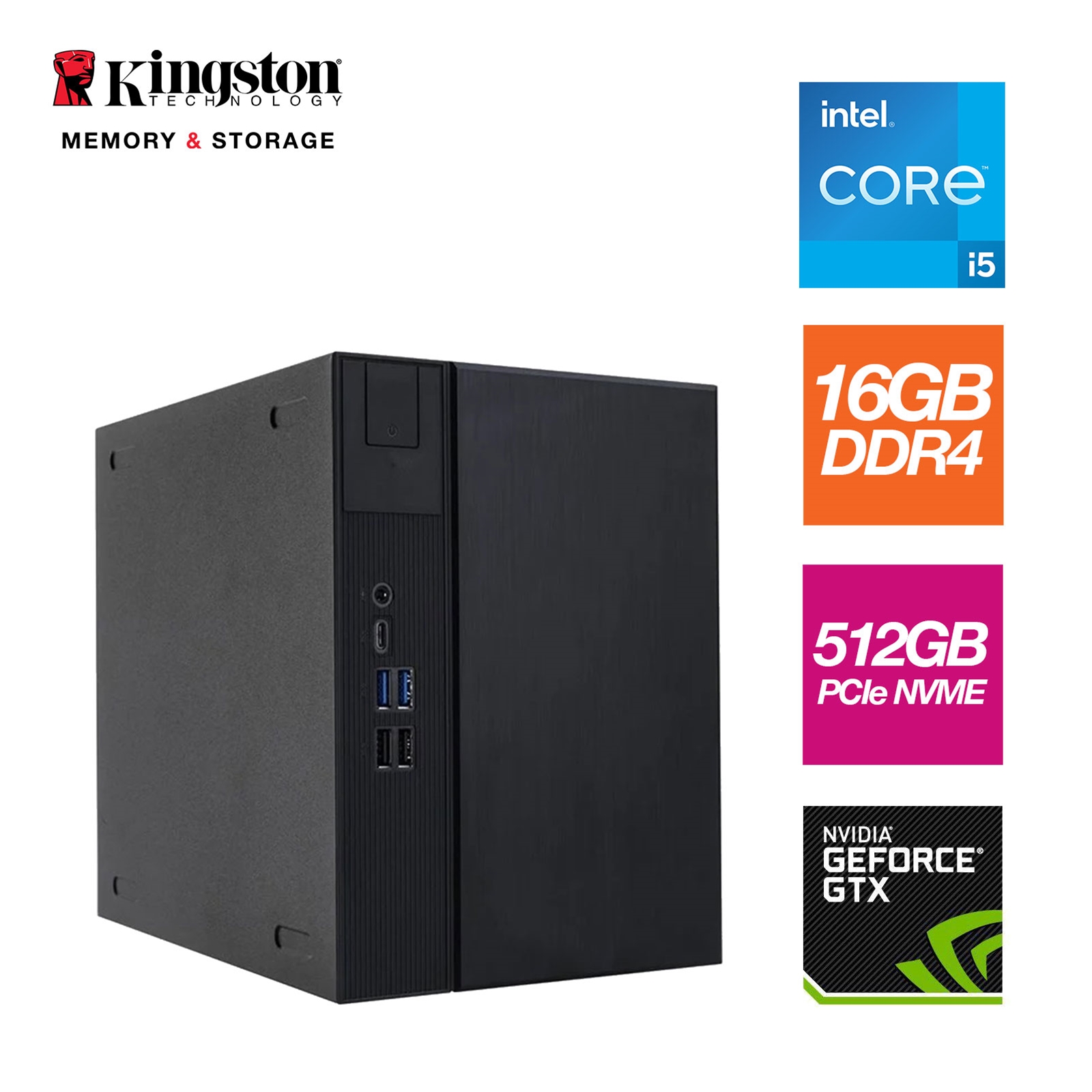

Small Form Desk Meet, Intel i5 13400F 10 Core 16 Thread 2.5GHz (4.6GHz Boost), 16GB Kingston RAM, 512GB Kingston NVMe M.2, 80 Cert PSU GTX1650 4GB Graphics - Prebuilt System

Desk Meet meets power house in this small form 8L chassis. Don't be fooled by it's small size. This PC is a real powerhouse, with more cores and graphics power than meets the eye

Product Description
Small Form Desk Meet, Intel i5 13400F 10 Core 16 Thread 2.5GHz (4.6GHz Boost), 16GB Kingston RAM, 512GB Kingston NVMe M.2, 80 Cert PSU GTX1650 4GB Graphics - Prebuilt System

Processor
Intel Core i5 13400F 10 Core Processor 16 Threads, 2.5GHz up to 4.6GHz Turbo Raptor Lake Socket LGA 1700 20MB Cache, 65W, Maximum Turbo Power

Processor Cores
10

Processor Threads
16

Core Clock Speed
2.50GHz

Core Boost Speed
4.60GHz

Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
2 x 8GB
4 Lanes (2 occupied)

SSD Drive
Kingston KC3000 (SKC3000S/512G) 512GB NVME M.2 PCIe Gen4 x4 NVMe SSD, Read 7000MB/s, Write 3900MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 7000MB/S
Write: Up to 3900MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte GeForce GTX 1650 GDDR6 OC 4GB Single Fan Graphics Card
Core Clock
1635 MHz (Reference Card: 1590 MHz)
CUDA Cores
896
Memory Clock
12000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
192 GB/s

Graphics Card I/O
DisplayPort 1.4 *1
HDMI 2.0b *1
DVI-D *1

Operating System
No O/S

Card Reader
N/A

Networking
N/A

Power Supply
500W power supply (80+ Bronze, peak 550W)

Motherboard
ASRock B660 Pre-Fitted

Expansion Slot
1 x PCIe 4.0 x 16

Storage
3 x SATA3 6.0Gb/s ports
1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Rear I/O
1 x DisplayPort 1.4
1 x HDMI
1 x D-Sub
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)

Chassis
Asrock Deskmeet With B660 Motherboard, Socket 1700,4 x DDR4 DIMM slots (Max. 128GB, Graphics Expansion- 1 x PCIe 4.0 x 16,3 x SATA3 6.0Gb/s ports, 2 x 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes

IO Ports
1 x Headphone/Headset Jack
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A

Dimensions
Motherboard: 5.8" x 5.4" (Mini-STX)
Barebones: 155 x 155 x 80 mm (1.92L)

Package Weight
5 kg

Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
