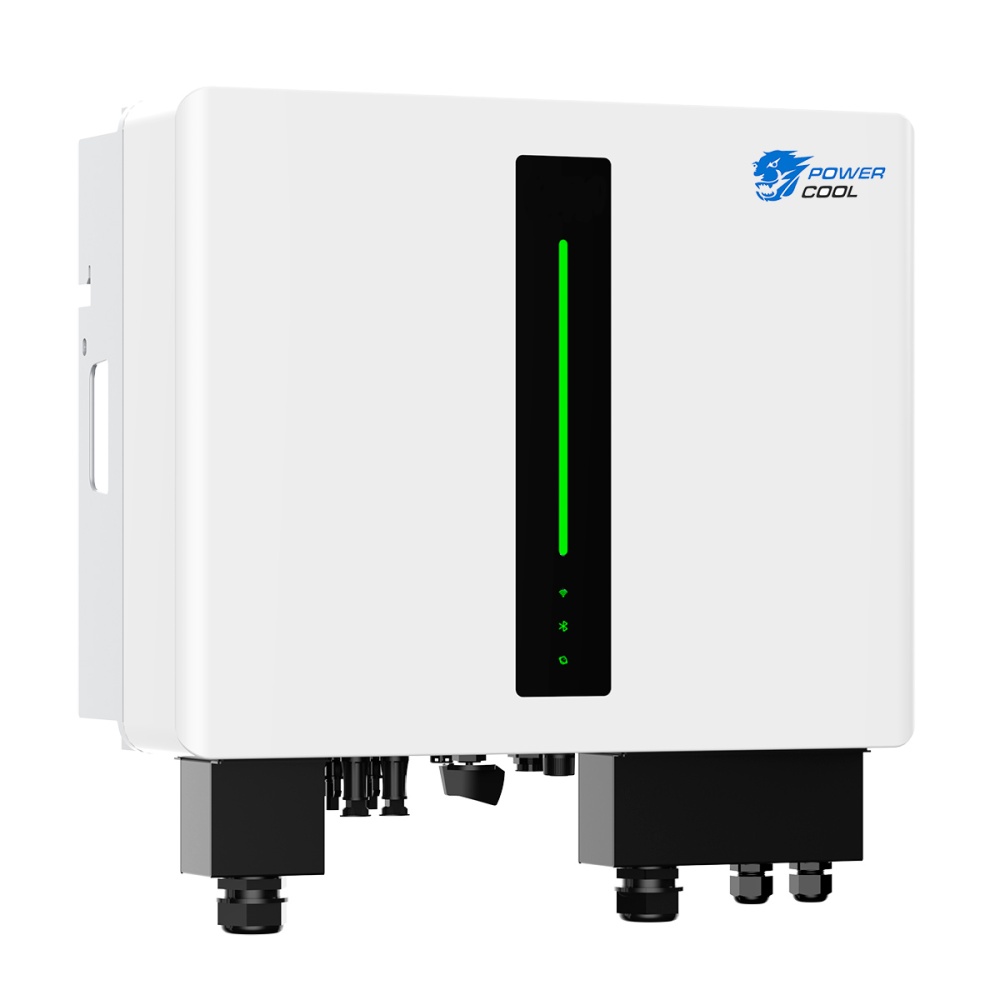

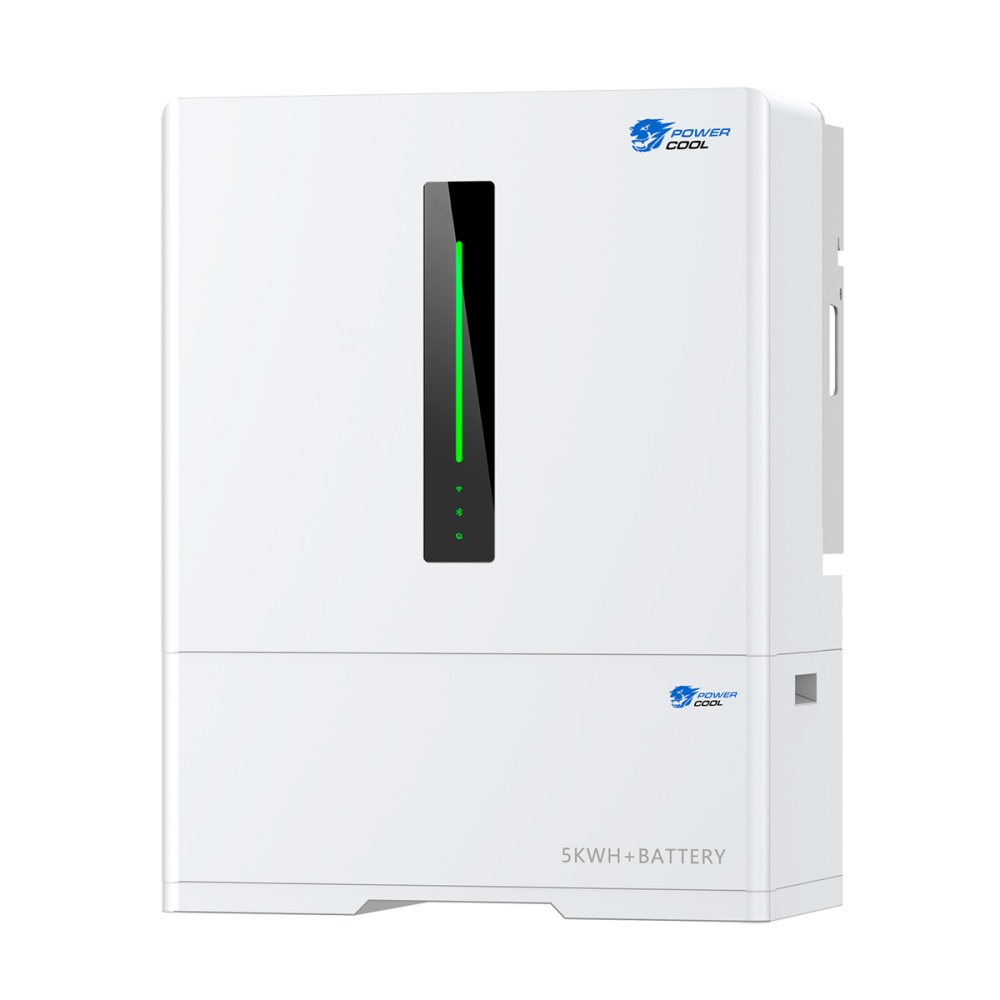

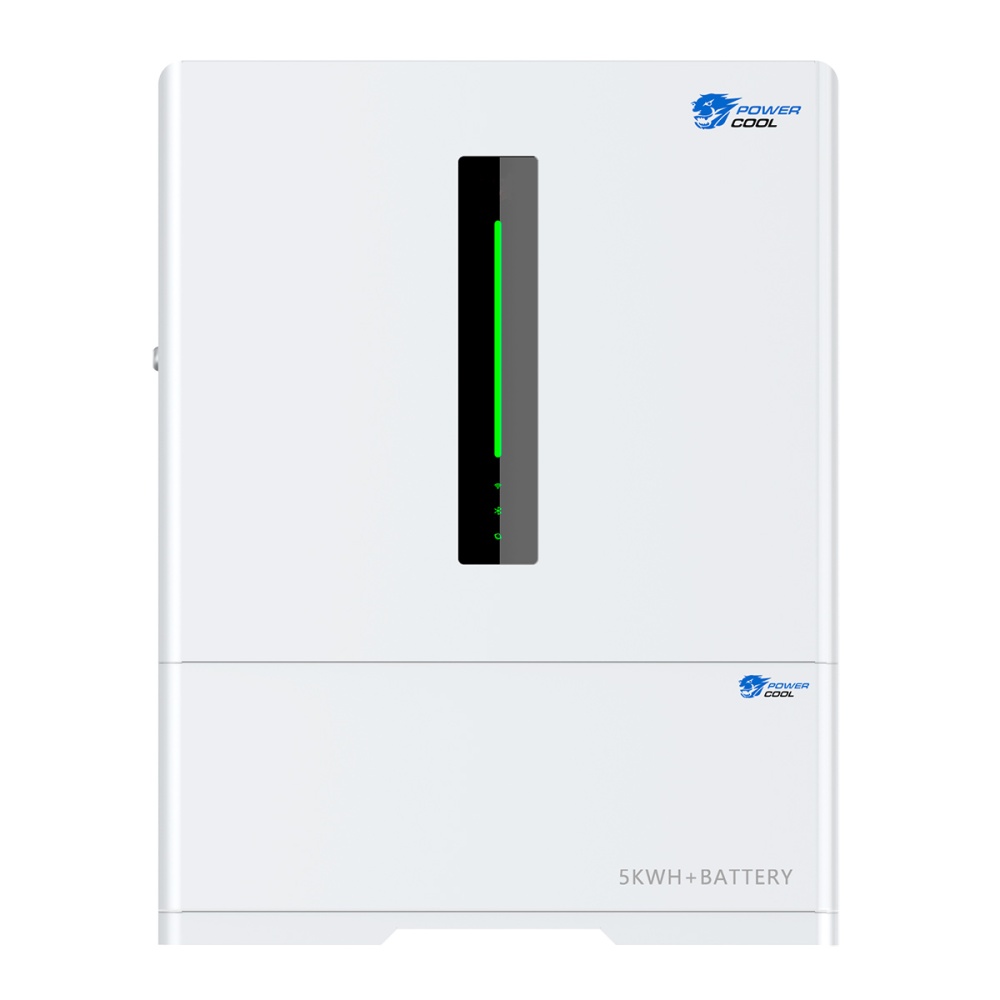

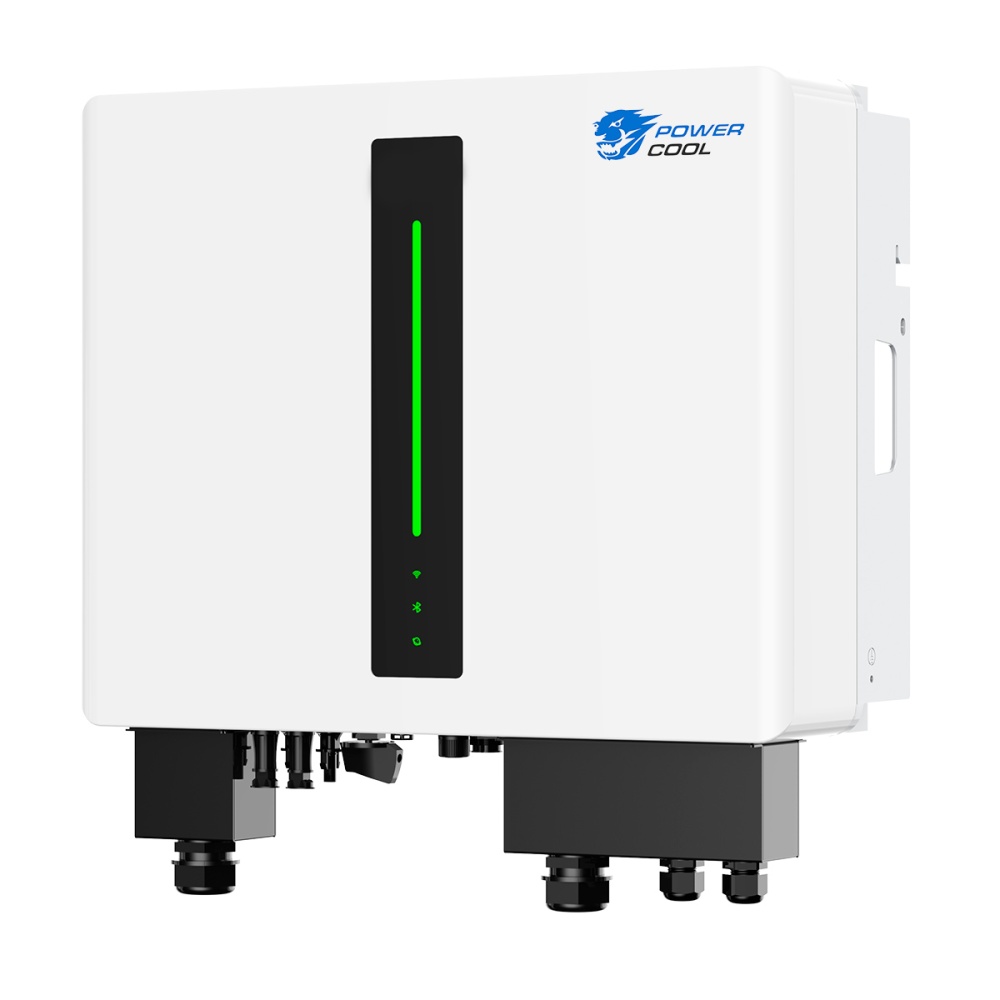

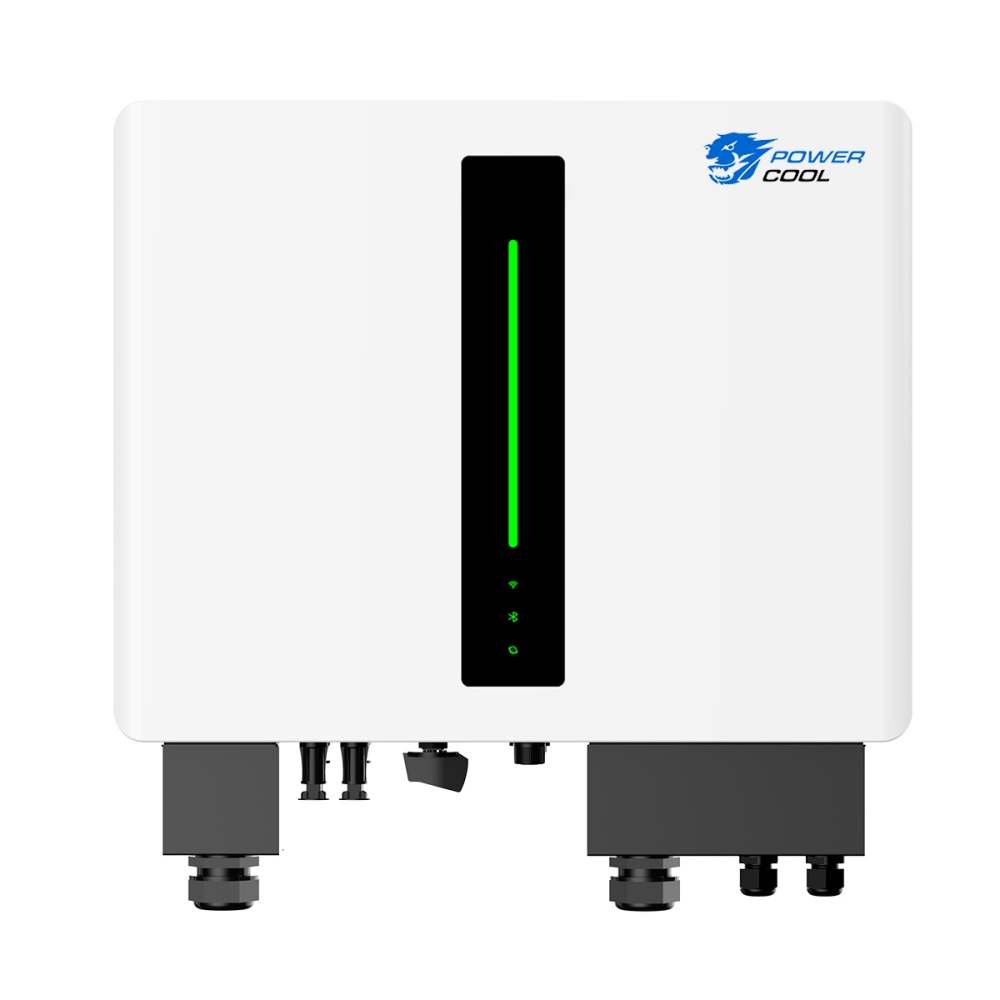

Powercool Solar 6KW Hybrid Solar Inverter All-In-One Energy Storage System Bundle With 1x Powercool Lithium 5.12kWh Battery

NEW

Our Price: £3,828.50

(Inc. 20% VAT)

Availability:

In stock

–+

Information
Specifications
Reviews (0)

Powercool All In One Hybrid Solar Storage system is available with two battery modules and a battery capacity of 10.24kWH. 1 x Powercool Lithium 5.12kWh Battery is included. Used to control and optimise the energy flow in the PV System through an integrated energy management system.

With a 6kw hybrid inverter, this system can charge either from solar with up to 7800w PV input or directly from the grid. The power energy generated in the PV system can be supplied for the load, stored in the battery and outputted to the grid. The inverter supplies the power to support an average to high demand property.

Set up can be utilized as a hybrid inverter to connect up to 7800w of solar to charge from solar or from the grid or as an AC coupled charger to run alongside your existing solar PV system or just from the grid.

Key Features

Integrated streamlined case design with elegant appearance
5.12kWH 100Ah lithium batteries are available to purchase - 1 x 5.12kWH Lithium Battery included
IP66 aluminium alloy enclosure, waterproof and dustproof
Stacking design for easy installation
Module plug-and-play, automatic recognition
Flexible expansion of battery capacity
Flexible setting of multiple working modes according to preferences
Seamless switching of emergency mode to ensure that loads do not power down
Security and stability, 24-hour intelligent monitoring
Using the QR codes download the monitoring software for Hybrid Solar Inverter

Specifications

Model: PCHI-6K10-SL-S
Number Of Batteries Modules: 2
Battery Capacity: 10.24kWH
Rated Power: 6000W
Operating Mode: Supporting Monitoring Software

PV Input:

Max. Input Power: 7800W
Max. Input Voltage: 550 Vdc
Rated Input Power: 360 Vdc
Start-Up Voltage: 100 Vdc
Min. Operating Voltage: 150 Vdc
MPPT Voltage Range (Full Load): 100-540 Vdc (250-450 Vdc)
Max. Input Current: 16 A / 16 A
Number Of MPPTs: 2

Grid-Connected Output:

Output Grid: Single Phase (L Plus N Plus PE)
Rated Output Power: 6000 VA / 6000 W
Rated Output Voltage: 230 Vac
AC Voltage Range: 184-276 Vac
Rated Frequency: 50 / 60 Hz
Frequency Range: 50 Plus/Minus 5 / 60 Plus/Minus 5
Rated Output Current: 27.3A / 26.1A
Power Factor: 1.0 (Leading) - 1.0 (Lagging)
THDi (@ Rated Power): Less Than Or Equal To 3 Percent

Off-Grid Output:

Rated Output Power: 6000 VA / 6000 W
Rated Output Voltage: 230 Vac (208 / 220 / 240 Vac Settable)
Rated Output Current: 26.09 A
AC Voltage Range: 184-276 Vac
Frequency Range: 50 / 60 Hz Plus/Minus 1 Percent
THDv: Less Than Or Equal To 3 Percent (Linear Load)
Overload Capacity: 110 Percent, 60S / 120 Percent, 30S
Transfer Time: Less Than Or Equal To 20 ms

Battery:

Battery Type: LFP
Rated Voltage: 48 Vdc
Battery Voltage Range: 42-58 Vdc
Max. Charging Current: 100 A
AC Charge: Support
Max. Charging Voltage: 58 V (Settable)
Max. Discharging Current: 120 A
Charging Curve: BMS (Lithium Battery)

Efficiency:

Max. Efficiency: 97.8 Percent
MPPT Efficiency: 99.9 Percent
Battery Charge Discharge Efficiency: 94 Percent

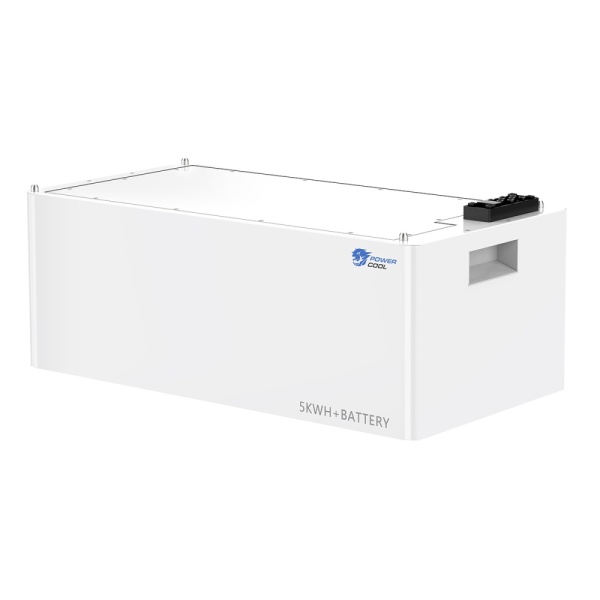

5.12kWH 100Ah Lithium Battery:
Dimensions: 600 x 220 x 305
Package Dimensions: 695 x 335 x 395
Net Weight: 50.5KGs
Gross Weight: 52.5KGs

Others:

Protections: Over / Under Voltage, Over / Under Frequency, Overload, Output Short-Circuit, Over Temperature, Leakage Current, Insulation Resistance, Anti-Islanding, PV and Battery Input Reverse Polarity, Output Over Current Protection
Communications: USB / RS485 (Standard) Wi-Fi / GPRS (Optional)
Warning: Buzzer, Warning Light
Display: Null
Standard: EN 62109-1, IEC62109-2, EN 61000-6-2, EN 61000-6-3, VDE-AR-N 4105, DIN VDE 0126-1-1, DIN VDE V 0124-100, CEI 0-21,G83
IP Rating: IP 66
Operating Temperature: -20-55 Degree Celsius

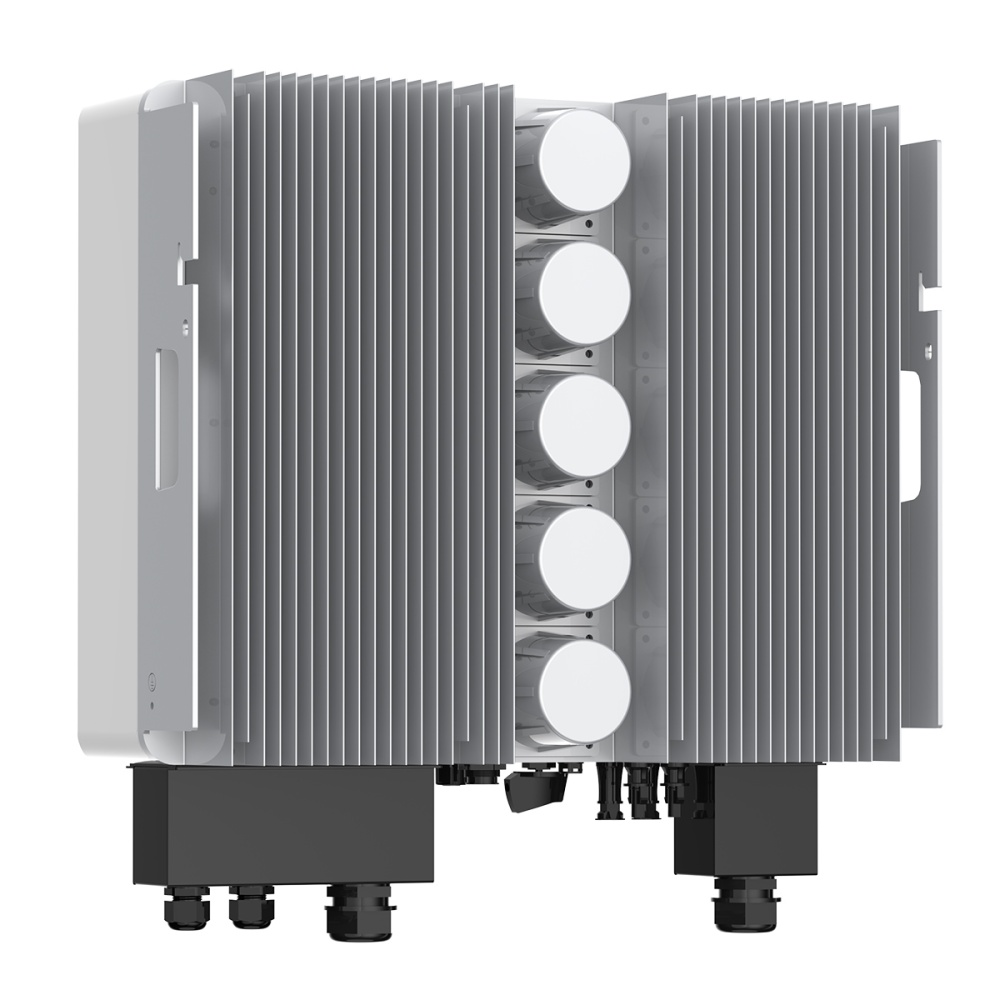

Cooling: Natural Cooling
Installation Method: Module Stacking, Floor-Mounted Wall Fixing
Relative Humidity: Less Than Or Equal To 95 Percent
Altitude: Less Than Or Equal To 3000m (Greater Than 3000m Derating)
Noise: Less Than Or Equal To 25 dB
Topology: High Frequency Isolation (For Battery)

What's In The Box: Inverter, Accessories
Unit (Product) Dimensions (mm): 600mm x 530mm x 305mm (W x H x D)
Packaging Dimensions (mm): 810mm x 630mm x 430mm (W x H x D)
Net Weight (KGs): 36.3 KGs
Gross Weight (KGs): 47.9 KGs

Model: PCHI-6000-SL-S
Bar Code: 5055492414236
Part Number: PCHI-6000-SL-S
Brand: POWERCOOL
