The Powercool UPS range provides stable and reliable power protection with scalable run time It is ideal for PC users or small business companies, as well as for small telecom applications. The Powercool UPS is compact and provides stable power protection against surges and spikes. Its embedded microprocessor controller guarantees high reliability. It can automatically shut down without any load and restart while AC power is recovering.
Key Features - Built in AVR
- DC Cold Start
- Audible Alarm
- USB Connectivity
- Intelligent CPU Control
- Wide Input Range
- Software Monitoring
- Compatible with generators
- Strong EMI compatibility, no EMI to load
- Protection against Surge, Over / Under Voltage
Specifications - Power: 720W
- Noise: <45db (1 metre)
- Temperature: 0 - 40°C
- Humidity: 20% - 90% (Non-condensing)
- Input - Phase: Single & GND
- Input - Voltage Range: 230 / 240VAC
- Input - Frequency: 50Hz ± 10%
- Output - Voltage Range: 230 / 240VAC
- Output - Wave Form: Sine Wave (AC Mode) Square Wave (Inverter)
- Output - Frequency: 50Hz ± 1% (Battery Mode)
- Output - Crest Factor: 3:1
- Output - Transfer Time: <= 6ms
- Protection - Energy Rating: 320 Joules instantaneous response
- Protection Test Standard: IEEE 587 Cat. A & B
- Protection - LAN: RJ45 Surge protection
- Noise Filtering - EMI / RFI: Full time suppression
- Communication: USB

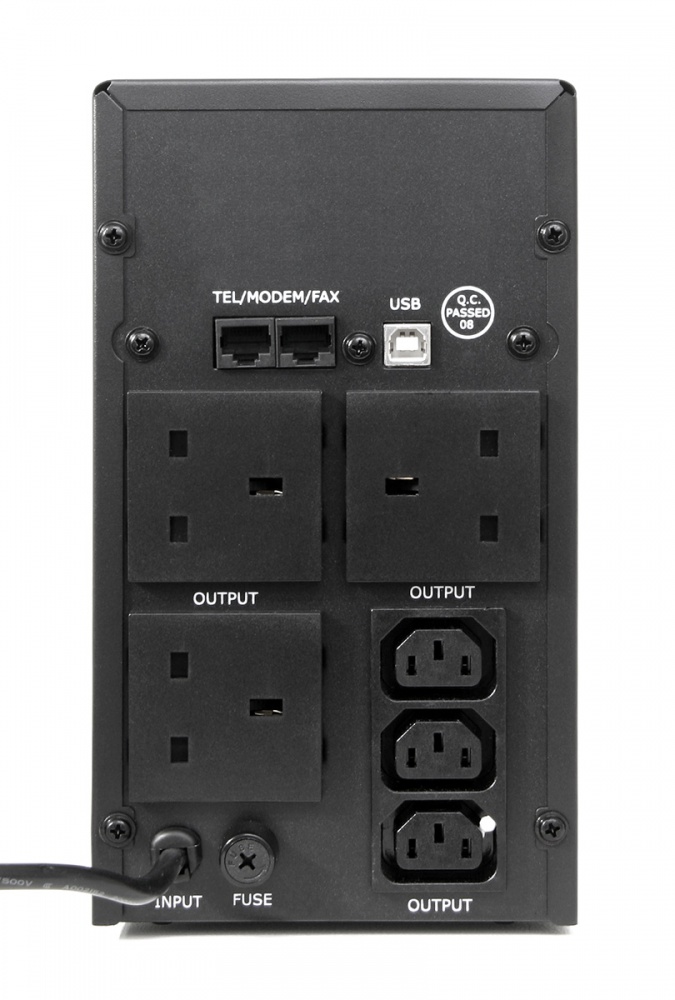

- I/O Ports - UK Mains Socket: Three
- I/O Ports - RJ45: Two (In / Out)
- I/O Ports - USB: One (For USB Monitoring)
- I/O Ports - IEC Socket: Three
- Battery - Type: Sealed Lead-Acid, Maintenance Free
- Battery - Quantity: 12V7AH x 2
- Battery - Recharge Time: 90% capacity after 8 hours
- Battery - Backup time: 15-20 minutes (dependent on load)
General Specifications - Manufacturer Part Number: PC 1200VA
- EAN Number: 5055492403124
- Has Mains Plug: No
- Colour: Black
- Unit (Product) Dimensions (mm): 125mm x 230mm x 340mm (W x H x D)
What's In The Box: - Mains Cable (IEC C13 to IEC C14)
- USB Cable (A to B)
- Software - UPSmart 2000R (Serial # on CD Sleeve)
- Manual
- 2 x UPS Fuse
