Mercusys MW305R 300Mbps Wireless N Cable Router

300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads
Three 5dBi antennas greatly increase wireless signal strength, size and stability
Intuitive webpage guides you through the setup process in minutes

Convenient , Compact Design
Advances in R&D have allowed us to create a router that fits in the palm of your hand, without compromising its performance. High quality components, including the MediaTek Chipset, sit at the core of the router, allowing it to be as powerful as it is small.

Specifications

Dimensions W X D X H
147 mm x 115 mm x 34 mm

Reception Sensitivity
270M: -70dBm@10% PER • 11M: -87dBm@10% PER
130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
54M: -74dBm@10% PER • 1 M: -94dBm@10% PER

Wireless Security
WPA-PSK/WPA2-PSK

External Power Supply
5VDC/0.6A

Antenna Type
3 x 5dBi fixed omni directional antennas

Signal Rate
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)

Button
Reset/WPS button

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
2.4 - 2.4835GHz

Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port

Package Contents

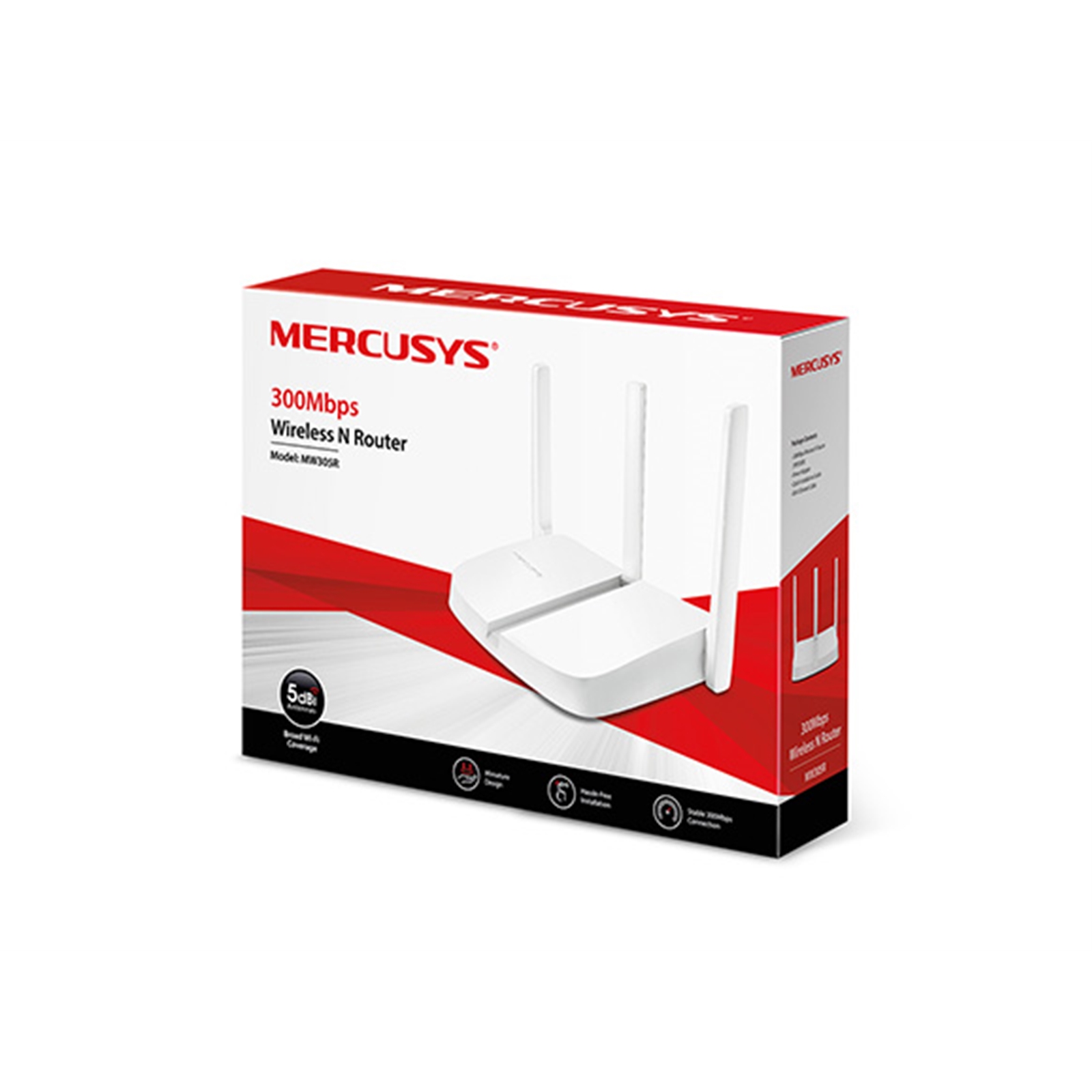

300Mbps Wireless N Router MW305R
Power adapter
Quick installation guide
Ethernet cable

Transmission Power
<20dBm

Wireless Functions
WDS bridge

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Parental Control
Access control
Local management
Remote management

DHCP
Server

Port Forwarding
Virtual server, UPnP, DMZ

Dynamic DNS
DynDNS?NO-IP

Firewall Security
IP and MAC address binding

Protocols
IPv4

Guest Network
2.4GHz guest network
