The 4-in-1 TVI/CVI/AHD/CVBS Mini Dome camera is compatible with 4 mode HD-TVI, AHD, CVI, and CVBS/960H analog DVRs. For 5MP you will need a DVR that can handle 5MP cameras.
5 Megapixel dome surveillance CCTV camera, made with CMOS sensor, output up to 2592 x 1944 pixels ultra HD image and high resolution live streaming offers you a crystal clear picture.
3.6mm wide viewing angle, with 5pcs built-in infrared LED light for night vision up to 10m, which could provide clear images even in the night.
Specifications
- Video Output mode: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps
- Image Sensor: 1/3" CMOS Sensor
- Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080
- TV System: PAL/NTSC
- Electronic Shutter: AUTO
- Scanning System: Progressive Scan
- Focus Length: 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- Night Vision: 20M
- IR Cut Filter: YES
- Infrared LED: 12PCS
- Infrared Distance: 10M
- IR Status: AGC Auto Control
- Starlight: No
- Day/Night: YES
- OSD Menu: YES
- WDR: DWDR
- UTC: YES
- Noise Reduction: DNR
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- Housing: Metal
- Bracket: NO
- Operation Temperature: -10 C ~ +60 C RH95% Max
- Storage Temperature: -20 C ~ +60 C RH95% Max
- Power Source: DC12V±10%, 400mA

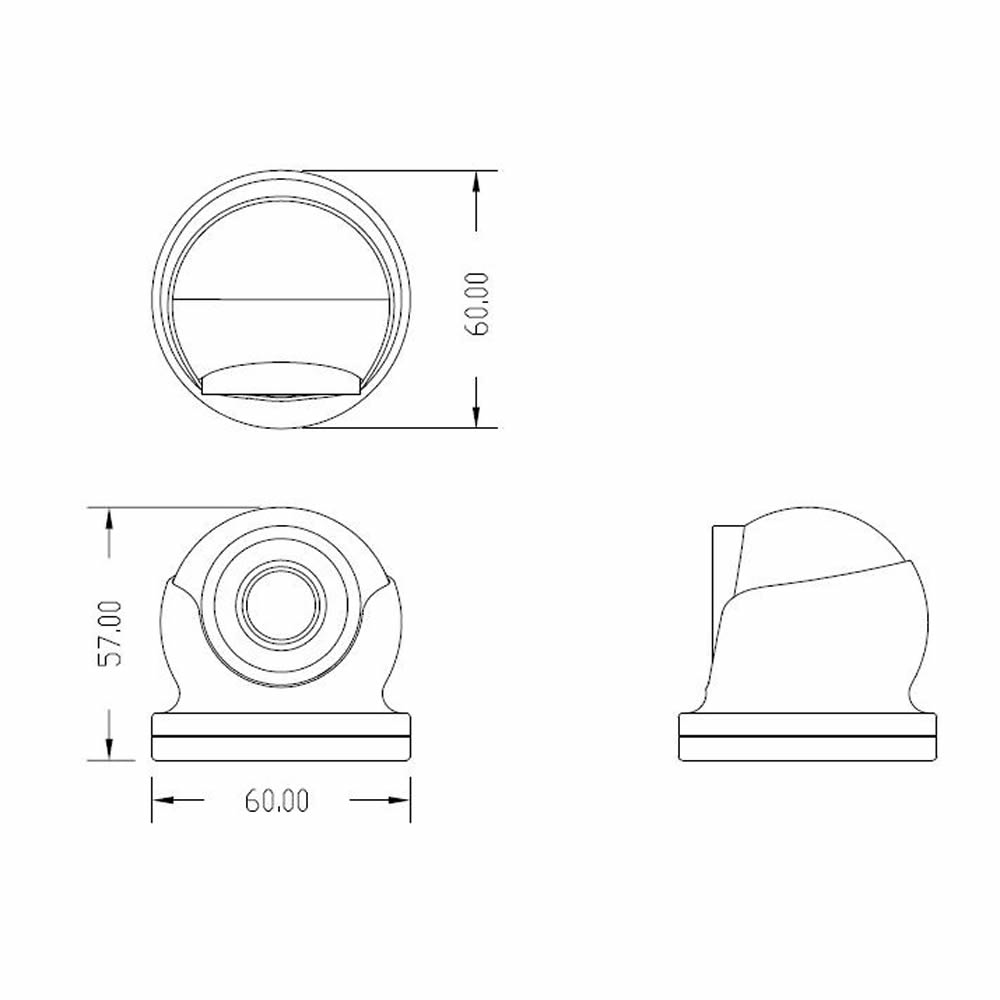

- Dimension: ~59x 55(H) mm
- Weight: 300g
