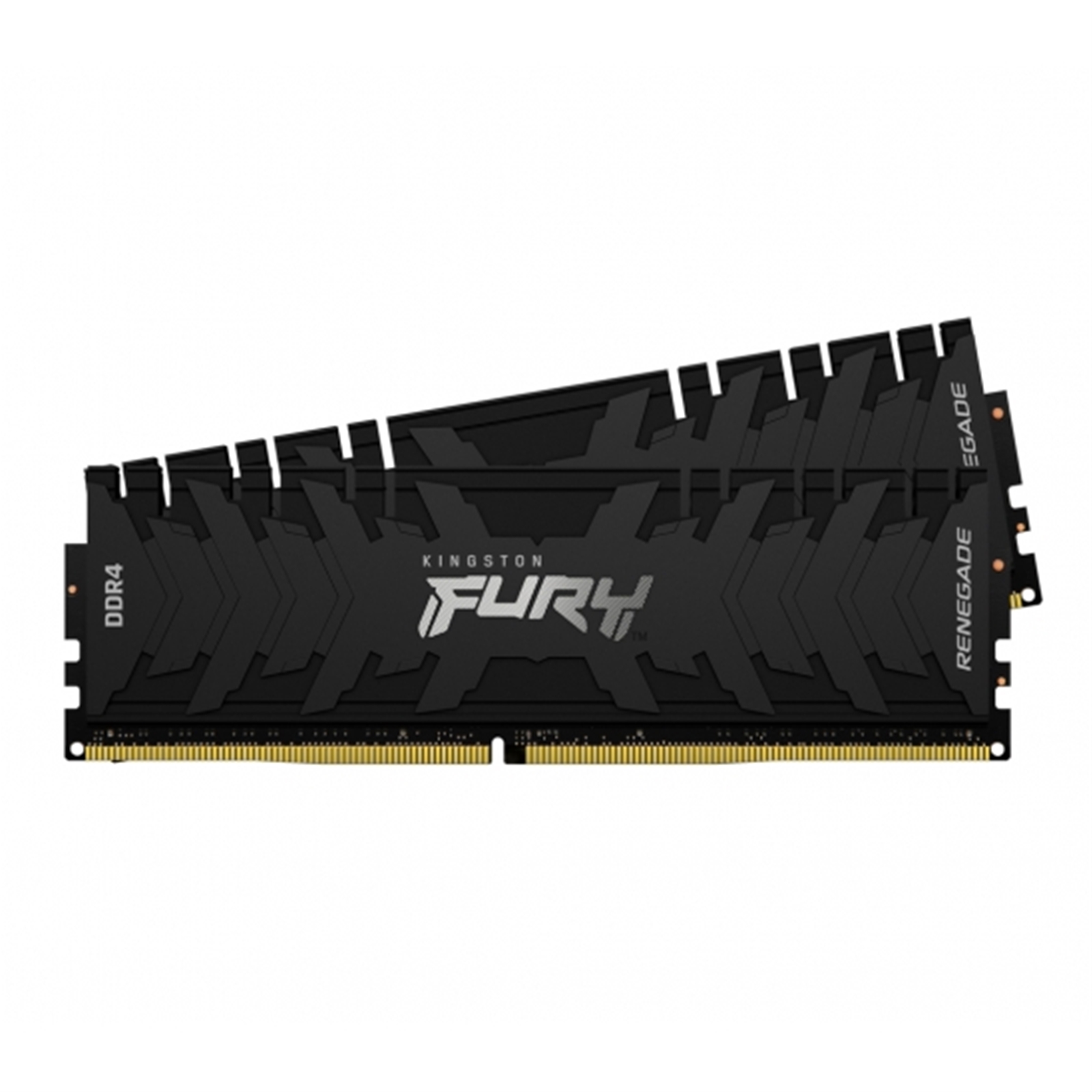

Kingston FURY Renegade 32GB 3200MHz (2x16GB) DDR4 CL16 DIMM Black System Memory

Kingston FURY Renegade 32GB (2 x 16GB) DDR4 3200MHz DIMM System Memory

This is a kit of two 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.661 (42.20mm)

Memory Capacity
32GB (2 x 8GB)

Memory Type
DDR4

Module Type
DIMM

Memory Speed
DDR4-3200MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
CL16-18-18 @1.35V

Heat Sink
Yes (Black)

Working Voltage
1.35 V
