Key Features - Cooling: 12cm Fan
- CE Approved
- ATX 12V Compliant for all Types of CPU and Mainboard
- 20 + 4 Pin Motherboard Connector, 4+4-pin CPU Connector
- 3 x SATA Connectors , 2 x 4-Pin Molex Connectors, 1 xFloppy Connector
PSU SpecificationsAC Input: 22V230V, 4A, 50Hz
DC Output:
+3.3V: 15A,
+5V: 15A
+12V1: 30A
-12V: 0.5A
+5VSB: 2.5A
Max Output: 500W
Dimensions (mm): 149mm x 87mm x 141mm (W x H x D)

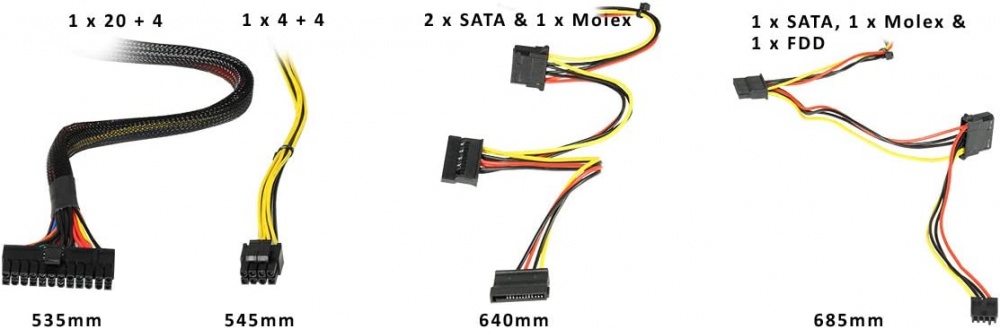

Connectors: - 24-Pin (20+4 Pin) Main Connector: x 1
- 8-Pin (4+4 Pin) 12V Connector: x 1
- SATA Connector: x 3
- 4-Pin Molex Connector: x 2
- Floppy Drive Connector: x 1
