Features

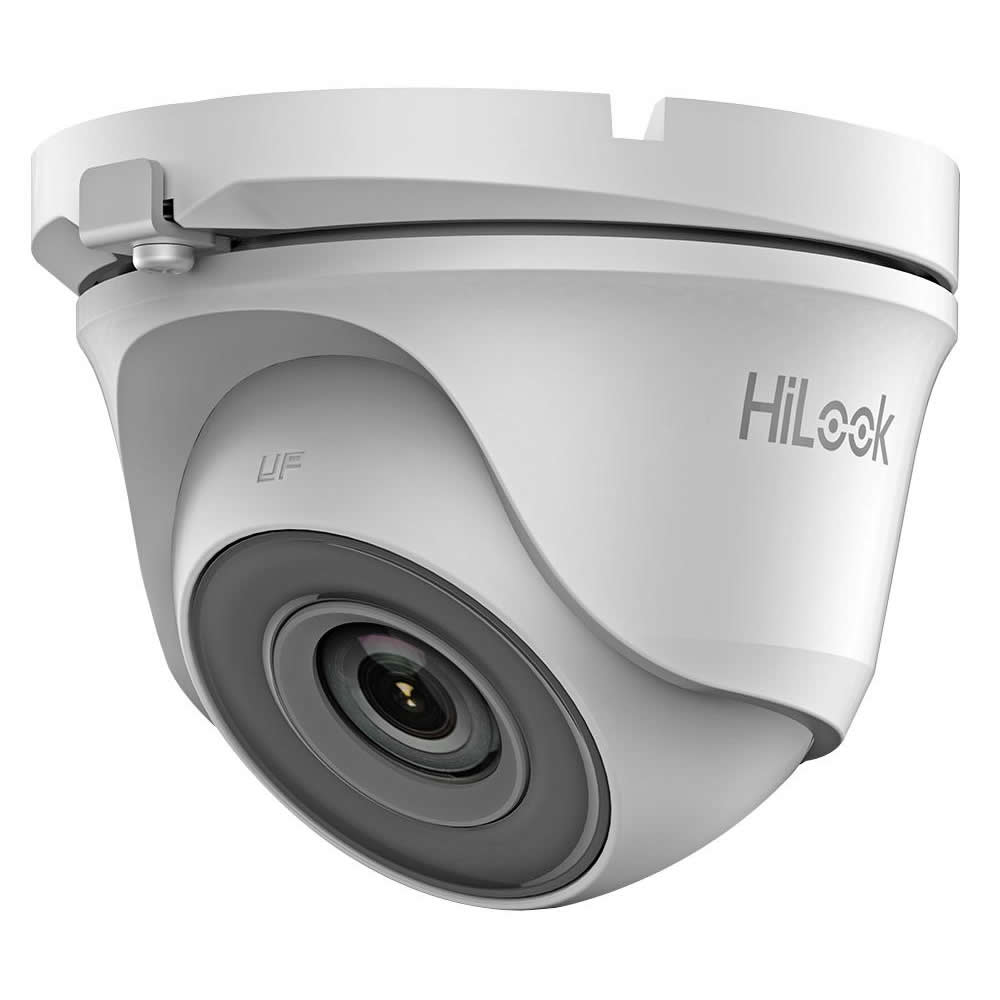

- 5 MP Fixed Turret Camera
- High quality imaging with 5 MP, 2560 1944 resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)

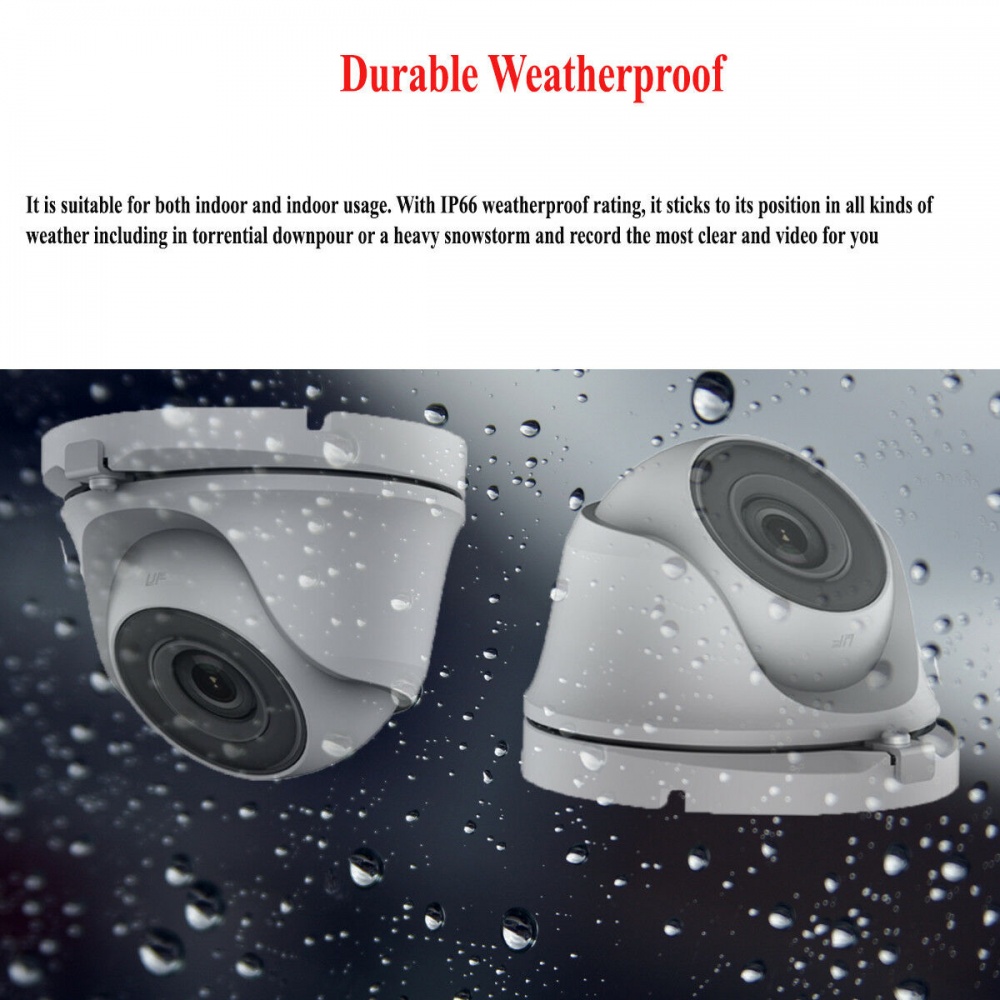

- Water and dust resistant (IP66)
Specifications
Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360 ; Tilt: 0 to 75 ; Rotate: 0 to 360
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85 , vertical FOV: 63 , diagonal FOV:110
Lens MountM12
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR, AGC
Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps
CVI: 4 M @ 30 fps, 4 M @ 25 fps
CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
Interface
Video Output: HD analog output
General
Material: Metal
Dimension 82.6 mm 69.66 mm ( 3.25" 2.74")
Approx. 230 g (0.51 lb.)
Operating Condition-40 C to 60 C (-40 F to 140 F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC 25%
Consumption: Max. 4.3 W
IR RangeUp to 20 m
Waterproof Approval
Protection IP66
