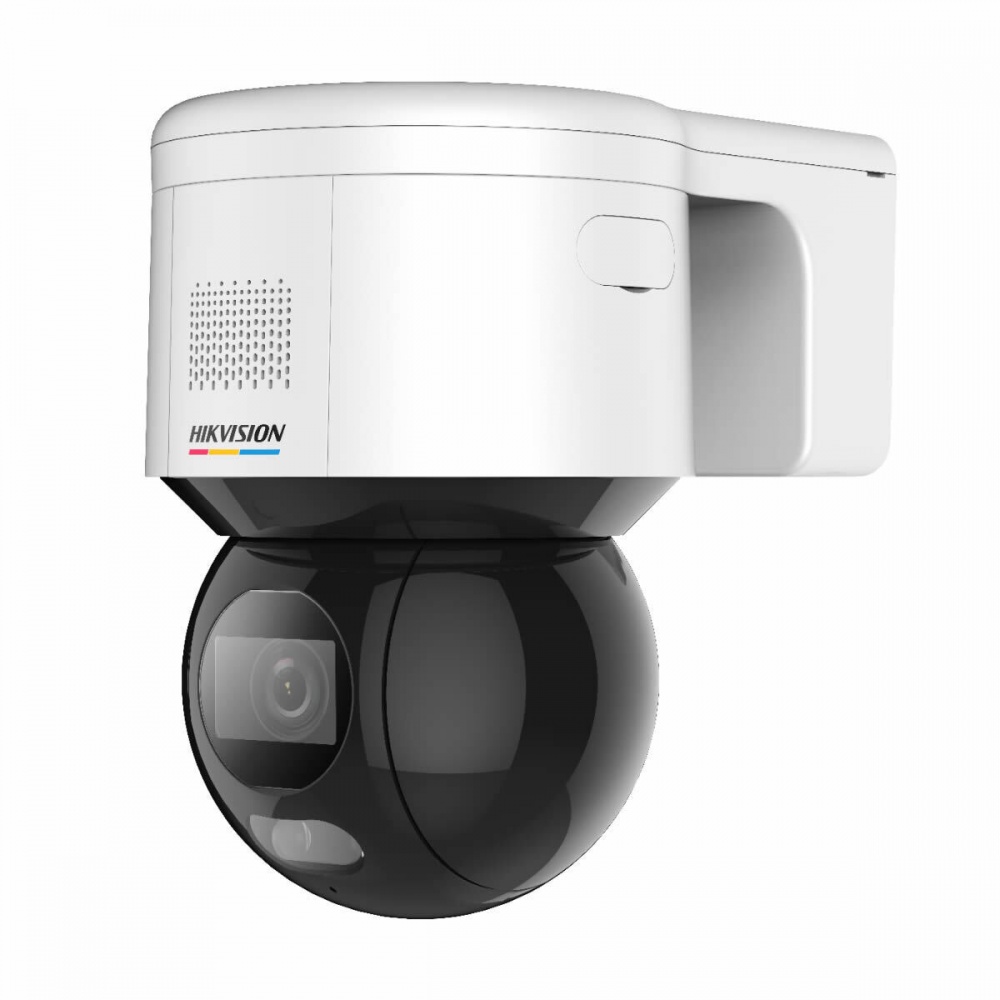

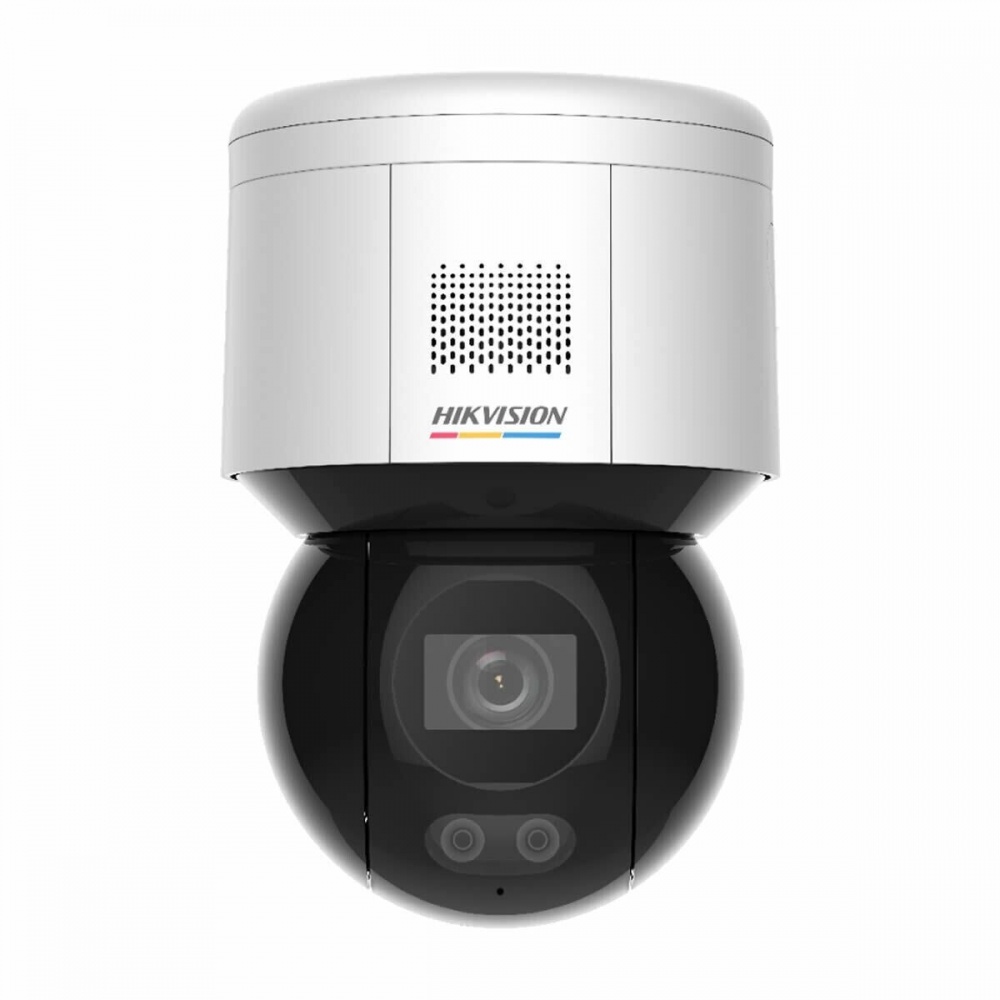

Hikvision 4MP DS-2DE3A400BW-DE Colorvu PTZ CCTV IP PoE Camera

Zoom

Our Price: £179.00

(Inc. 20% VAT)

Availability:

No stock

Notify me when this item is available

Information
Specifications
Reviews (0)

Hikvision’s DS-2DE3A400BW-DE(F1)(S5) 4 MP ColorVu PT Camera can be widely used in multiple indoor and outdoor scenes such as malls, stores, parks, factories, scenic areas, entrances, and exits.

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to the front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Features

Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm
Face capture: face tracking and grading; automatic selection of best shot; up to 5 faces detected and captured at the same time

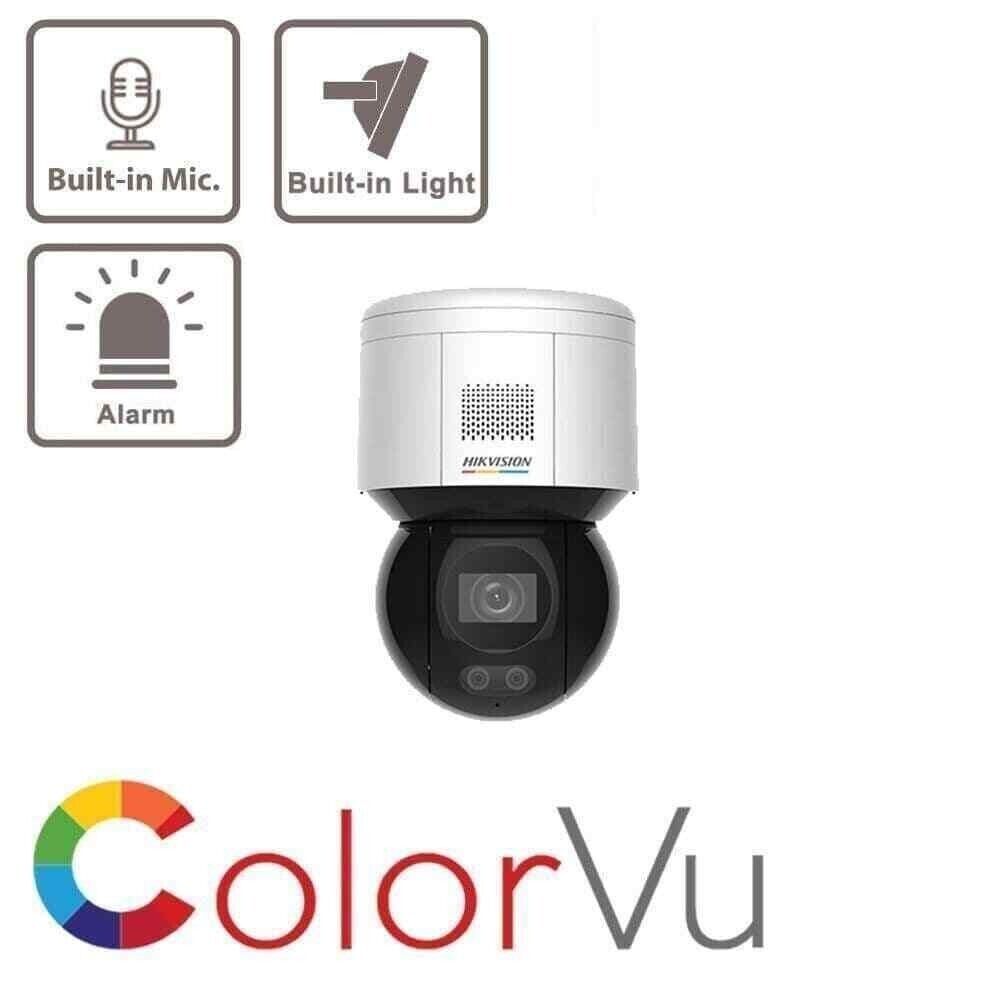

Linked audible and visual alarm. Built-in microphone and speaker
Up to 2560 × 1440 @ 30 fps
Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
24/7 colorful imaging with low power consumption. Up to 30 m white light distance
120 dB WDR, 3D DNR, HLC, EIS

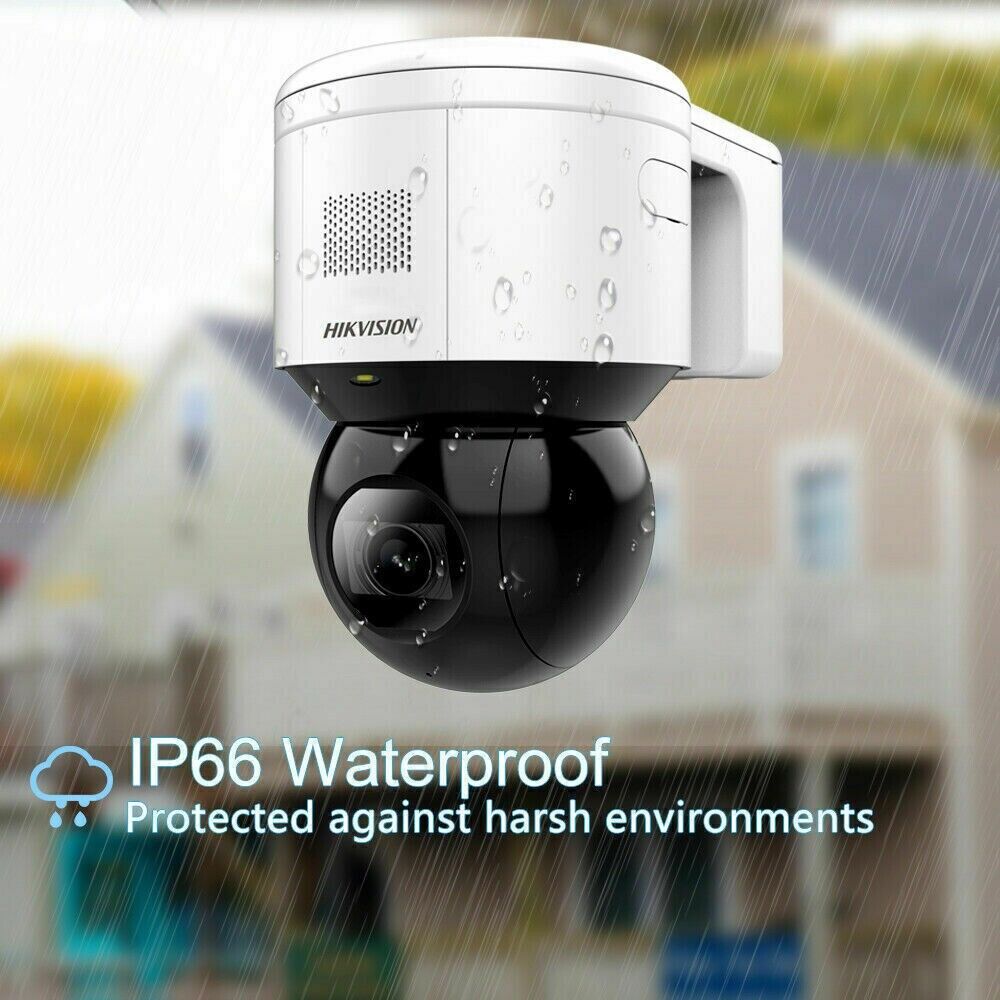

IP66 waterproof; PoE

Specifications

Performance
Preset points	Yes
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Design
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling/wall
International Protection (IP) code	IP66
Camera
Viewing angle, diagonal	105°
Viewing angle, horizontal	88.7°
Viewing angle, vertical	46.5°

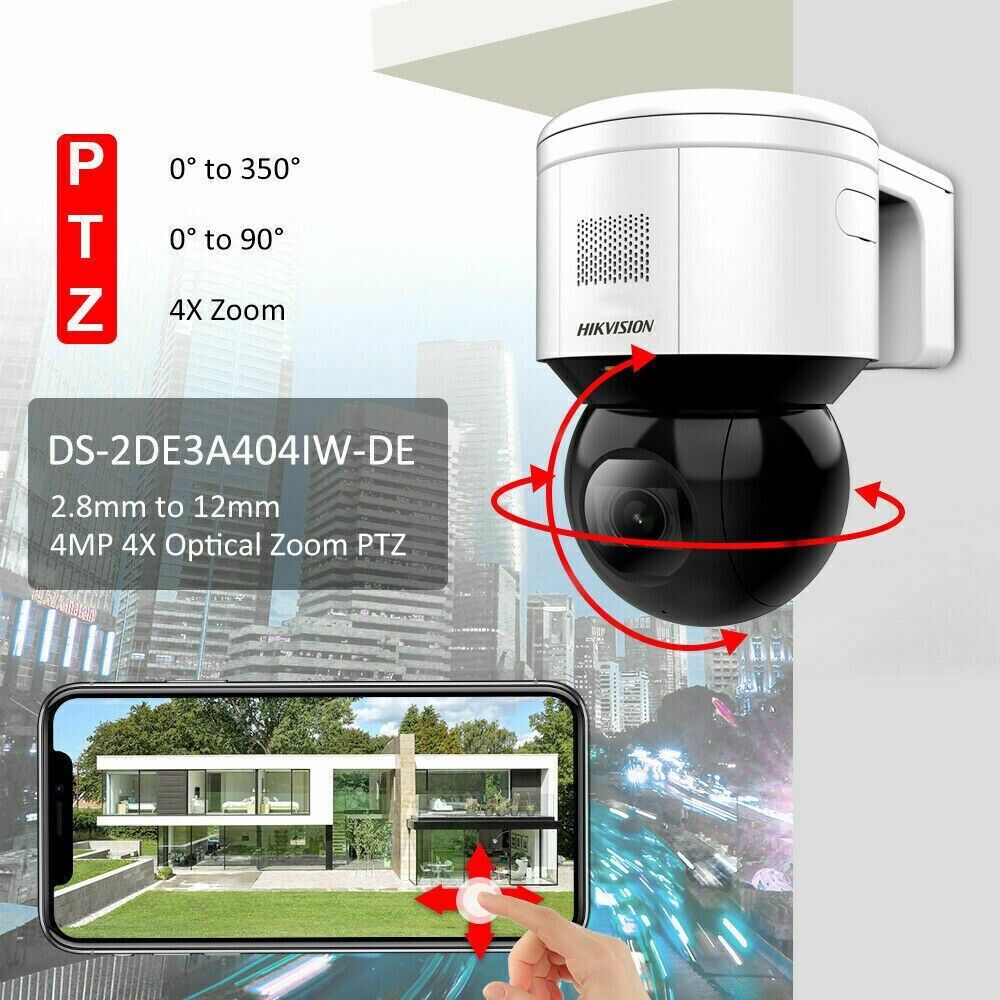

Tilt angle range	0 - 90°
Tilt speed	50 °/sec
Pan range	0 - 350°
Pan speed	60 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Camera shutter speed	1/1 - 1/30000 s
Camera pan control	Yes
Camera tilt control	Yes
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	1
Zoom capability	Yes
Digital zoom	16x
Fixed focal length	4 mm
Night vision
Night vision	Yes
Night vision distance	30 m
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Gain control type	Auto
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264,H.264+,H.265,H.265+,M-JPEG
Maximum resolution	2560 x 1440 pixels
Video formats supported	H.264,H.264+,H.265,H.265+,M-JPEG
Supported graphics resolutions	352 x 240,352 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440
Supported video modes	240p,480p,576p,720p,1080p,1440p
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
Audio
Built-in speaker(s)	Yes
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Audio codecs	G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;AAC;PCM
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at
Quality of Service (QoS) support	Yes
Number of users	32 user(s)
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Digital watermark	Yes
Management features
Web browser	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Unattended baggage detection
Power
Power source type	DC, PoE
Power consumption (max)	14 W
DC output voltage	12
DC output current	0.6 A
Operational conditions
Operating temperature (T-T)	-30 - 65 °C
Weight & dimensions
Width	120 mm
Depth	182 mm
Height	179.3 mm
Weight	1.12 kg
Package width	169 mm
Package height	224 mm
Package depth	256 mm
Packaging content
Number of cameras	1
Other features
Video compression formats	H.264,H.264+,H.265,H.265+,M-JPEG
Audio codecs	G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;AAC;PCM

Model: 1006536
Bar Code: 6941264074588
Part Number: DS-2DE3A400BW-DE
Brand: Hikvision
Form Factor: PTZ
Indoor or Outdoor: Indoor/Outdoor
Max. Resolution: 4 MP
Night Vision Type: Colour
