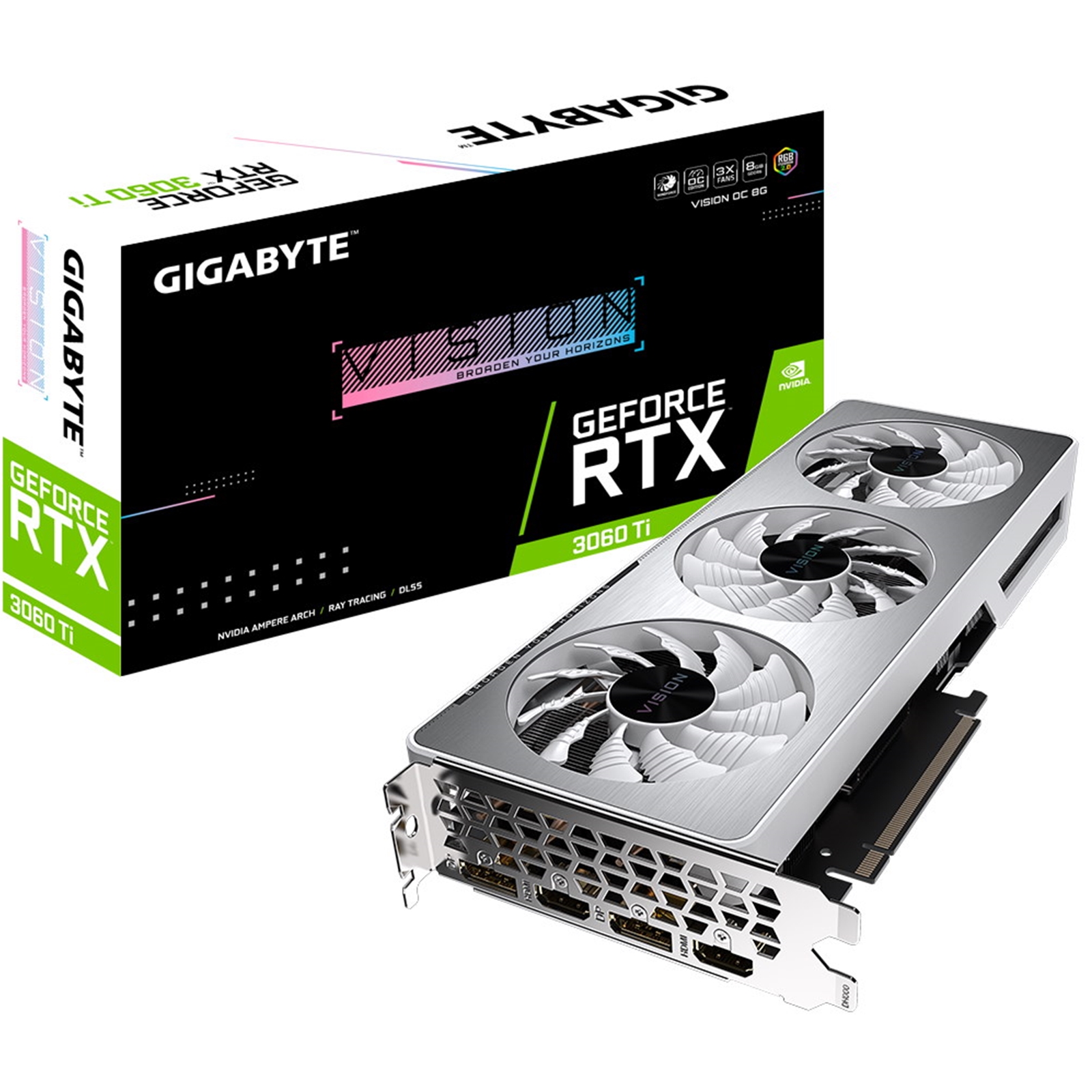

Gigabyte Nvidia GeForce RTX 3060 Ti VISION OC 8GB LHR Triple Fan RGB Graphics Card

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.

Features
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0
Protection metal back plate
LHR (Lite Hash Rate) version

Core Clock
1755 MHz (Reference card: 1665 MHz)

Specifications

Graphics Processing
GeForce RTX 3060 Ti

Core Clock
1755 MHz (Reference card: 1665 MHz)

CUDA Cores
4864

Memory Clock
14000 MHz

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
256 bit

Memory Bandwidth (GB/sec)
448 GB/s

Card Bus
PCI-E 4.0 x 16

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
L=281 W=115 H=40 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8-pin x 1
6-pin x 1

Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2

SLI Support
N/A

Accessories
Quick Guide
