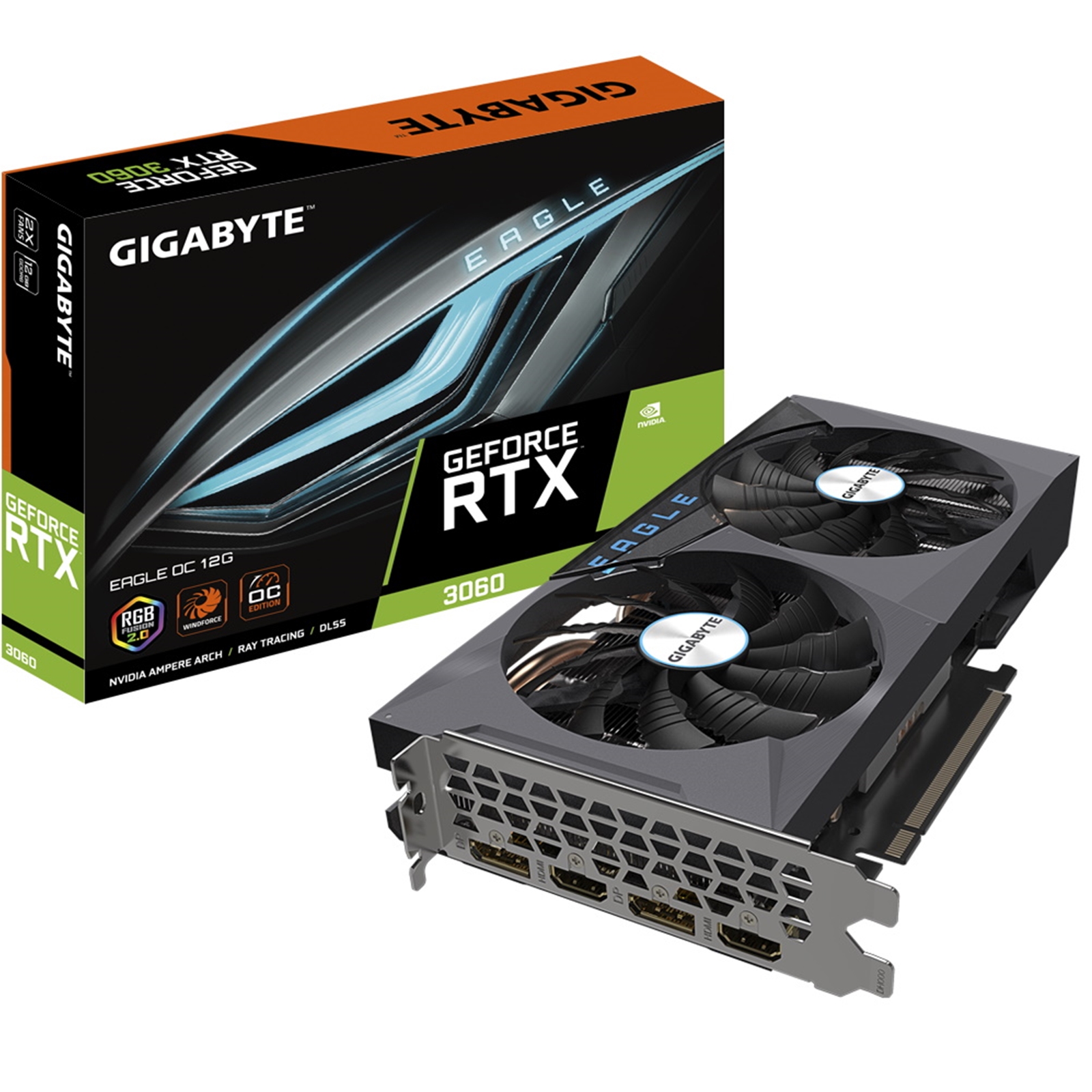

Gigabyte Nvidia GeForce RTX 3060 EAGLE OC 12GB Dual Fan Graphics Card

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.

Features
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0
Protection back plate
Limited Hash Rate version

Core Clock
1807 MHz (Reference Card: 1777 MHz)

Specifications

Graphics Processing
GeForce RTX 3060

Core Clock
1807 MHz (Reference Card: 1777 MHz)

CUDA Cores
3584

Memory Clock
15000 MHz

Memory Size
12GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth (GB/sec)
360 GB/s

Card Bus
PCI-E 4.0 x 16

Digital Maximum Resolution
7680 x 4320

Multi-View
4

Card Size
L=242 W=124 H=41 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8-pin x 1

Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2

SLI Support
N/A

Accessories
Quick Guide
