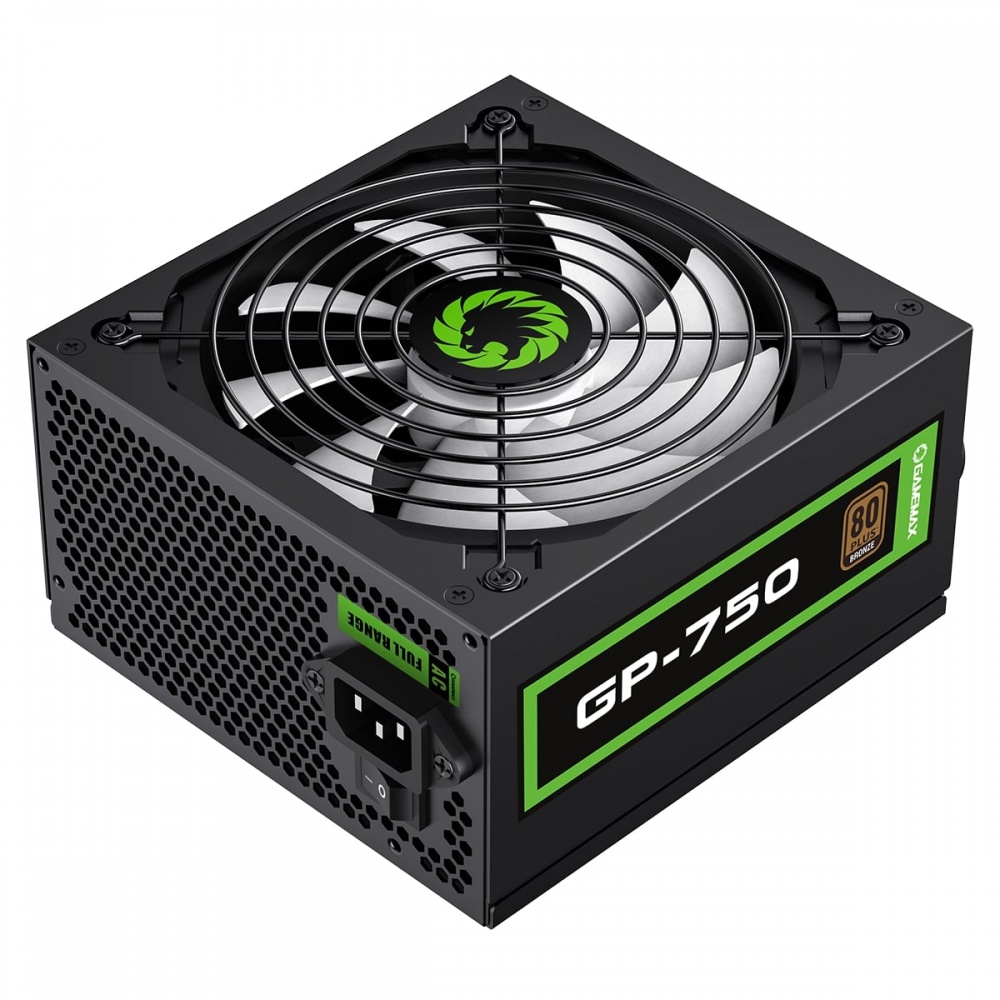

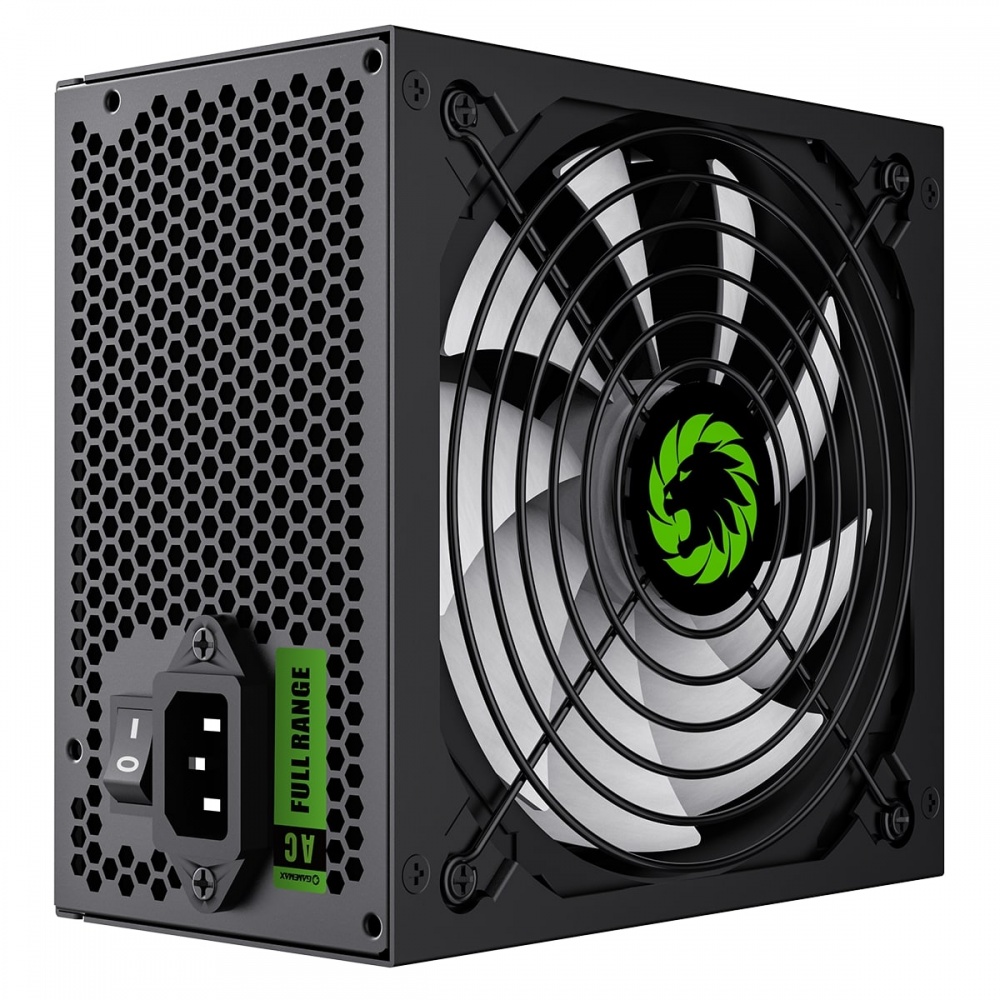

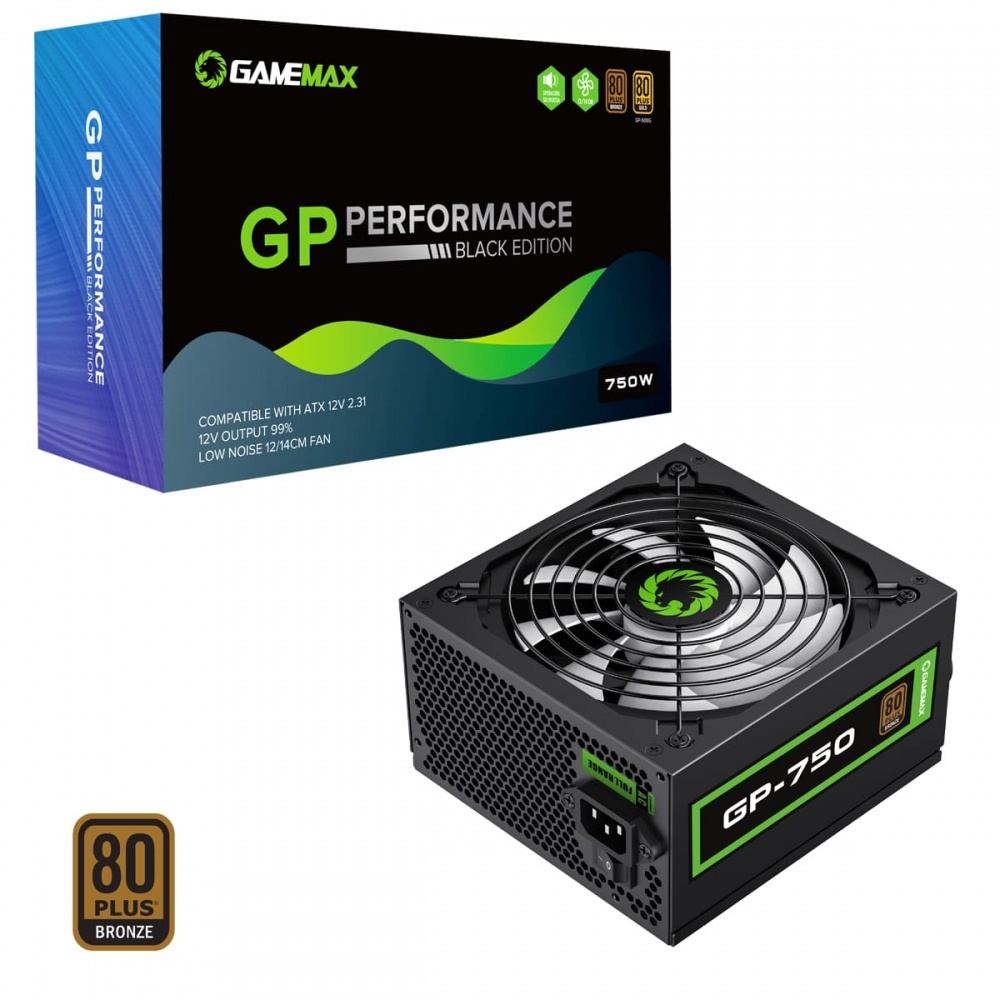

GameMax GP750 750W PSU Desktop-PC-Power Supply 80 Plus 14cm Fan

GameMax GP750 750W PSU Desktop-PC-Power Supply 80 Plus 14cm Fan
  Zoom
GameMax GP750 750W PSU Desktop-PC-Power Supply 80 Plus 14cm FanGameMax GP750 750W PSU Desktop-PC-Power Supply 80 Plus 14cm FanGameMax GP750 750W PSU Desktop-PC-Power Supply 80 Plus 14cm Fan
Our Price:  £46.00
(Inc. 20% VAT)

Availability:



In stock

+


GAMEMAX

The GameMax GP-Series performance range power supplies are perfect forpowering a home or office computer and with an 80 PLUS Bronzeefficiency rating and 54A single rail which guarantees to seamlesslydeliver full wattage to your PC system. The GP power supply housing a140mm ultra silent white fan offers both cooling and low noise.

Offering a straightforward and reliable way to power your system with asingle +12v rail, active PFC and a full suite of top tier circuitprotections, this PSU is built for purpose and can handle all your maincomputing needs, just plug it in and get to work.

The smooth elegant all-black casing and all black cable configurationallows the PSU to fit seamlessly into your PCs theme and supported by atwo-year warranty. For an excellent mid-tier computing experience thenthe GP-Series is the power supply to deliver.

Key Features

  • 80 Plus Certification - The GameMax GP-Series is 80 PLUS Bronzecertified for high efficiency delivering up to 85 percent efficiency orhigher for less heat and lower energy costs.
  • All Black - The all-black PSU casing and cable configuration theGP-750 effortlessly fits and blends into the rest of your system to adda sleek and stealth finish.
  • High and Stable Output - The GP-Series delivers continuous powerat full capacity, and it does not matter which wattage variant youchoose.
  • Single 12V Rail Output - Single 12V rail for high compatibilityand extreme high current output.
  • Ultra-Silent 14cm Fan - The GP-Series includes a 14cm silentwhite fan with a smart thermal control circuit so the fan only spins athigh speed when your power supply is under heavy stress, slowing downfor a quieter operation at lower loads.
  • Longer Cable Lengths - Longer 20 + 4 and 4 + 4 cables up to 550mmin length for easy high-end tower chassis installation.
  • Hardware Protection - A full line up top tier circuit protectionskeeps your build running strong and your hardware safe - OVP (OverVoltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), UVP (Under VoltageProtection) & OTP (Over Temperature Protection).


PSU Specifications

AC INPUT: 100-240 VAC 15-5A50-60Hz
DC Output
+3.3V    +5V    +12V1   -12V    +5VSB
18A       18A    54A        0.5A     2.5A

Max   750W


Connectors
  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors: 1
  • SATA Connectors: 7
  • 4-Pin Molex Connectors: 3
  • 6+2 Pin PCI-e Connectors: 4


Detailed Specifications
  • Dimensions:150mm x 85mm x 160mm (W x H x D)
  • Input Voltage:100-240 VAC
  • Input Current:15-5A
  • Input Frequency Range:50-60Hz
  • PFC:Active PFC >.99
  • Power Good Signal:100-500ms
  • Hold Up Time:>17ms
  • Efficiency:85%
  • MTBF:> 100,000 Hours
  • Protection:OVP / UVP / SIP / OCP / OLP / OPP / SCP
  • Power:750W
  • Operation Temperature:0-40°C
  • Safety:CE / UKCA / FCC / CB / cTUVus / TUV / EAC / RoHS
  • Cooling:140mm Ultra Silent Fan
  • Noise:<25dBa
  • 80 Plus Certified:Yes - 80 Plus Bronze

Model:  1006834
Bar Code:  6931858724029
Part Number:  GP-750
Brand:  GAMEMAX
80 Plus Rating:  80 Plus Bronze
Wattage:  750 W
PSU Form Factor:  ATX
Modular Cable:  None
Colour:  Black
LED Colour:  None
