GameMax Semi-Modular Series is a semi-Modular PSU with a compact andquiet engineering, with semi-modular cables for easy maintenance,allowing you to only connect cables that your system needs. Fewercables allows it to be tidy and better airflow inside your case. High80 Plus efficiency, reduced ripple and electrical instabilities andbetter efficiency and protection gives the user durability and totalconfidence in your next system build. 100 percent 6th GenerationSkylake Ready!
Key Features - Elegant black PSU casing with full black mesh cables
- ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
- High efficiency PSU, up to 85 percent efficiency
- Single 12V Rai lfor high compatibility and extreme highcurrent output
- Longer 20 + 4 and 4 + 4 pins up to 600mm is easy forhigh-end tower chassis installation

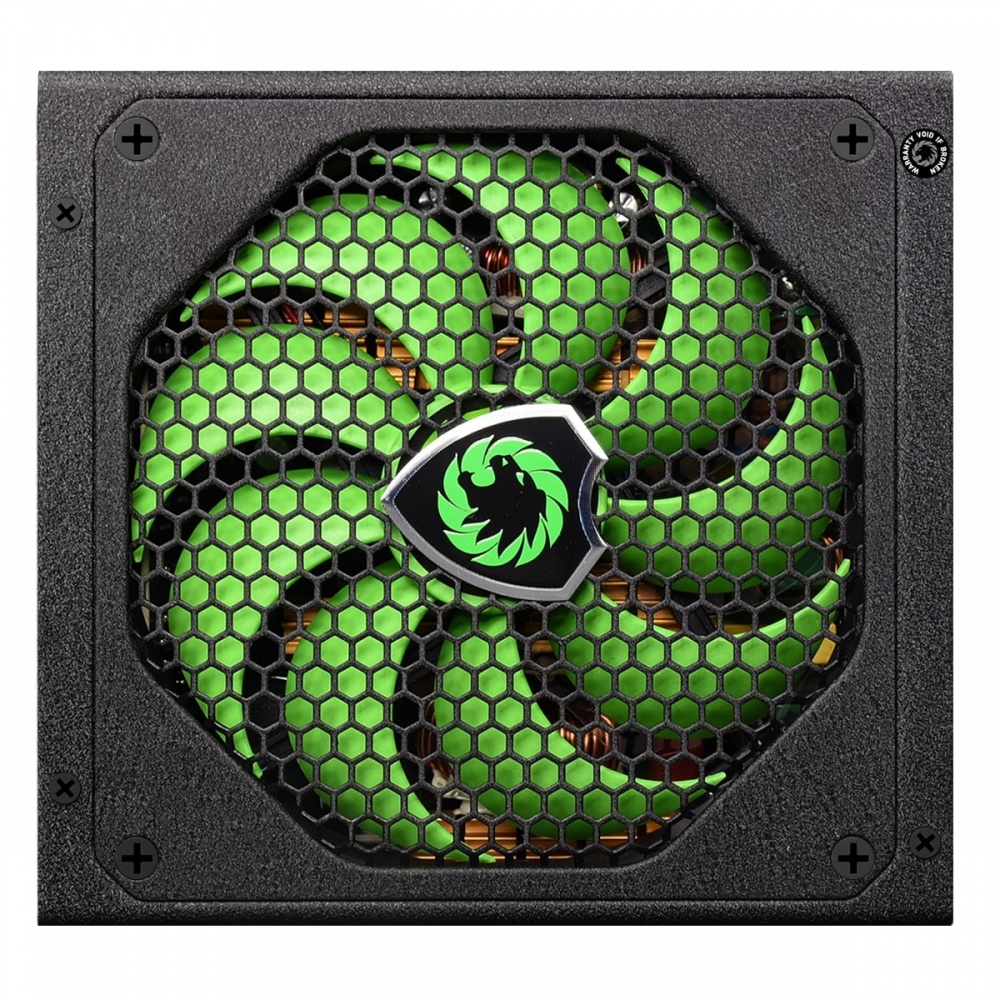

- 14cm silent black fan with smart thermal fan speed controlcircuit
- Full protection functions with OVP / UVP / OPP / SCP / SIP
- Safety and EMC certified by CE
- ECO friendly by RoHS and Erp 2013 directives

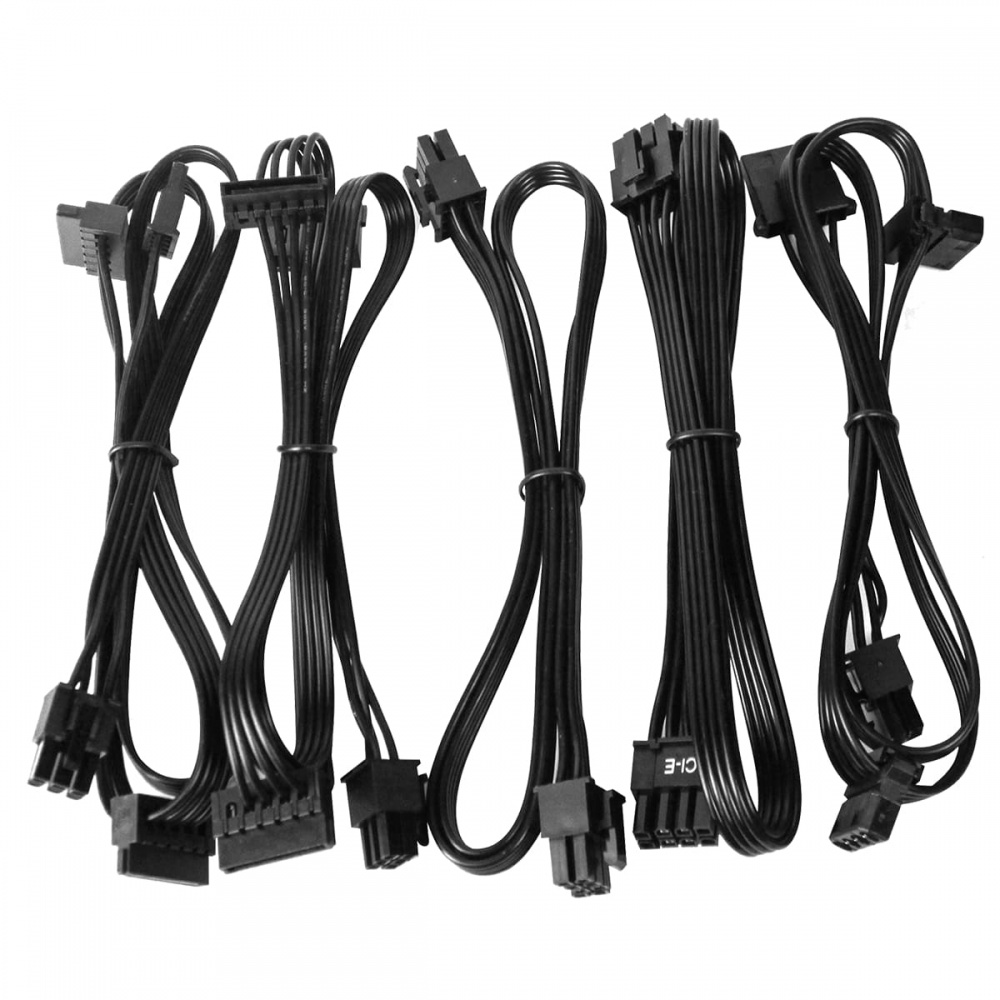

- Semi-modular cables for easy maintenance
- Warranty - The GameMax GM PSU range comes with 2 yearwarranty for units bought after 1st Jan 2023.

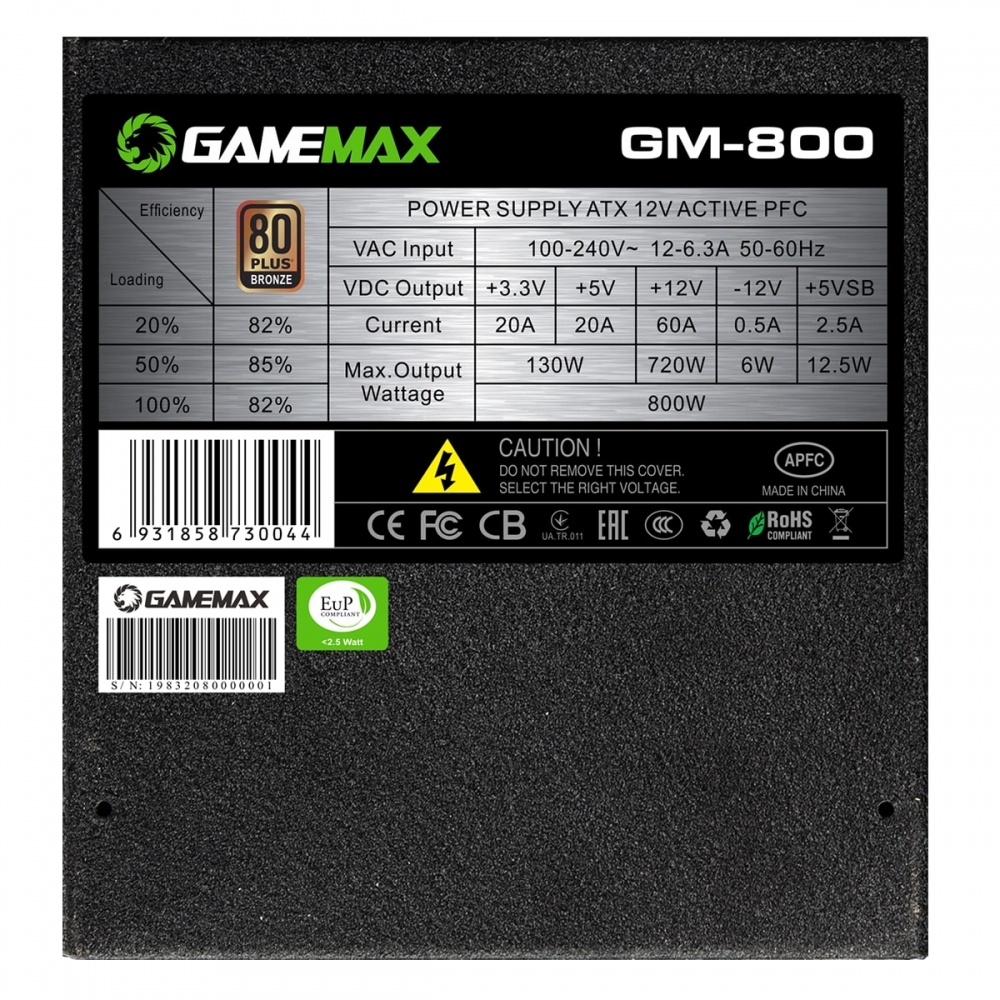

PSU SpecificationsAC INPUT: 100-240 VAC 6.3-12A 50-60Hz
DC
Max Output: 800W
+3.3V +5V +12V1 +12V2 -12V +5VSB
20A 20A 30A 30A 0.5A 2.5A
Connectors - 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 8
- 4-Pin Molex Connectors: 3
- 6+2 Pin PCI-e Connectors: 2
Detailed Specifications - Dimensions: 160mm x 85mm x 150mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 6.3-12A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC >.99
- Power Good Signal: 100-500 ms
- Hold Up Time: >17ms
- Efficiency: > 81% (85% max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
- Power: 800W
- Operation Temperature: 0-40°C
- Safety: CE / FCC / CB
- Cooling: 140mm Ultra Silent Fan
- Noise: <25dBa
- 80 Plus Certified: Yes - 80 Plus Bronze
