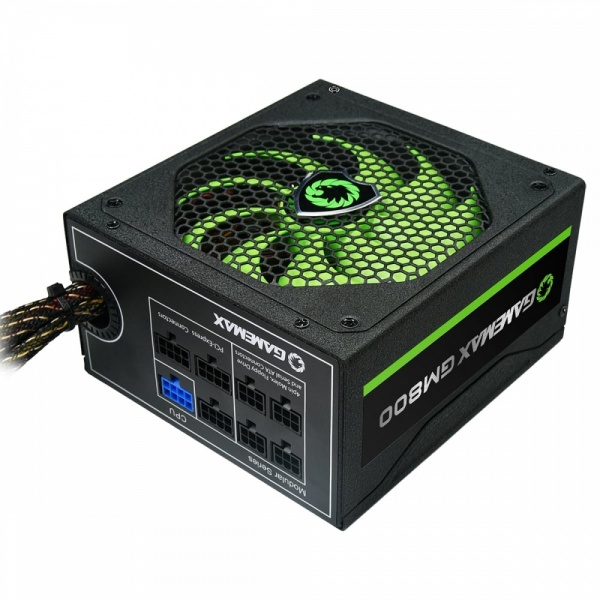

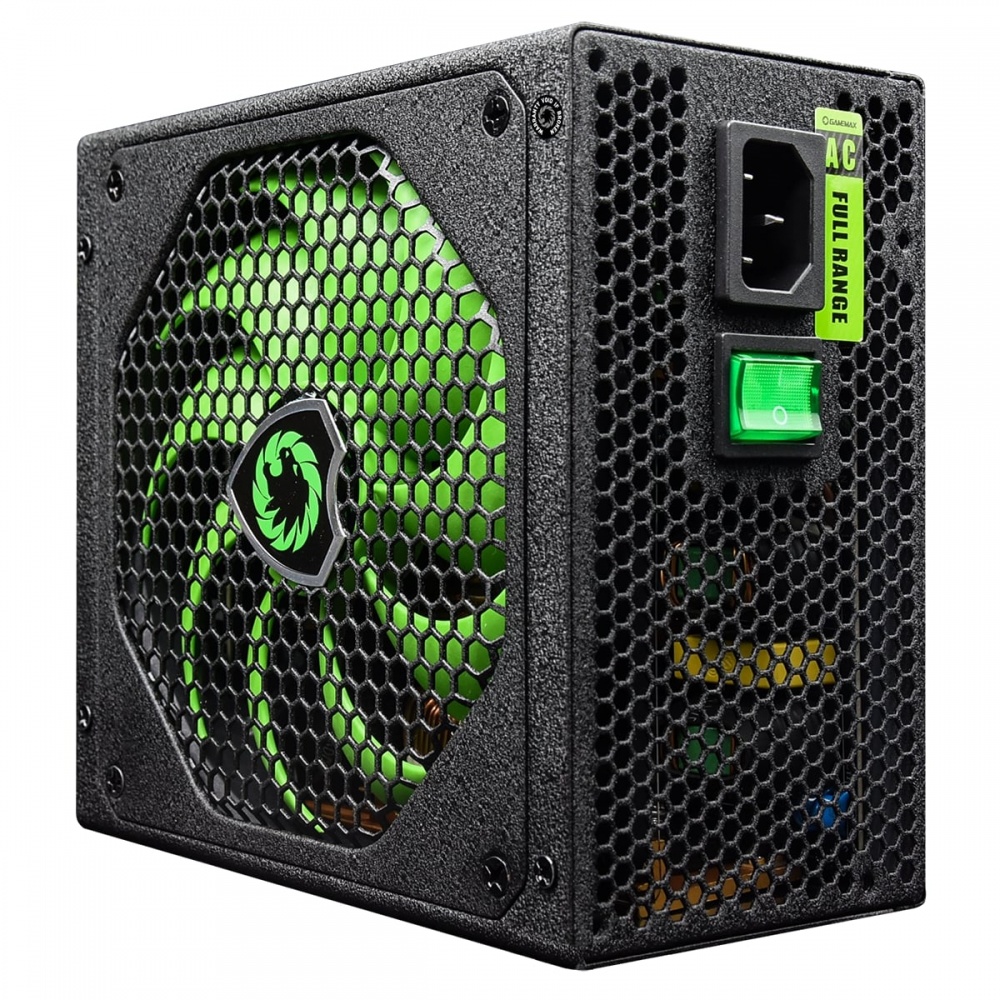

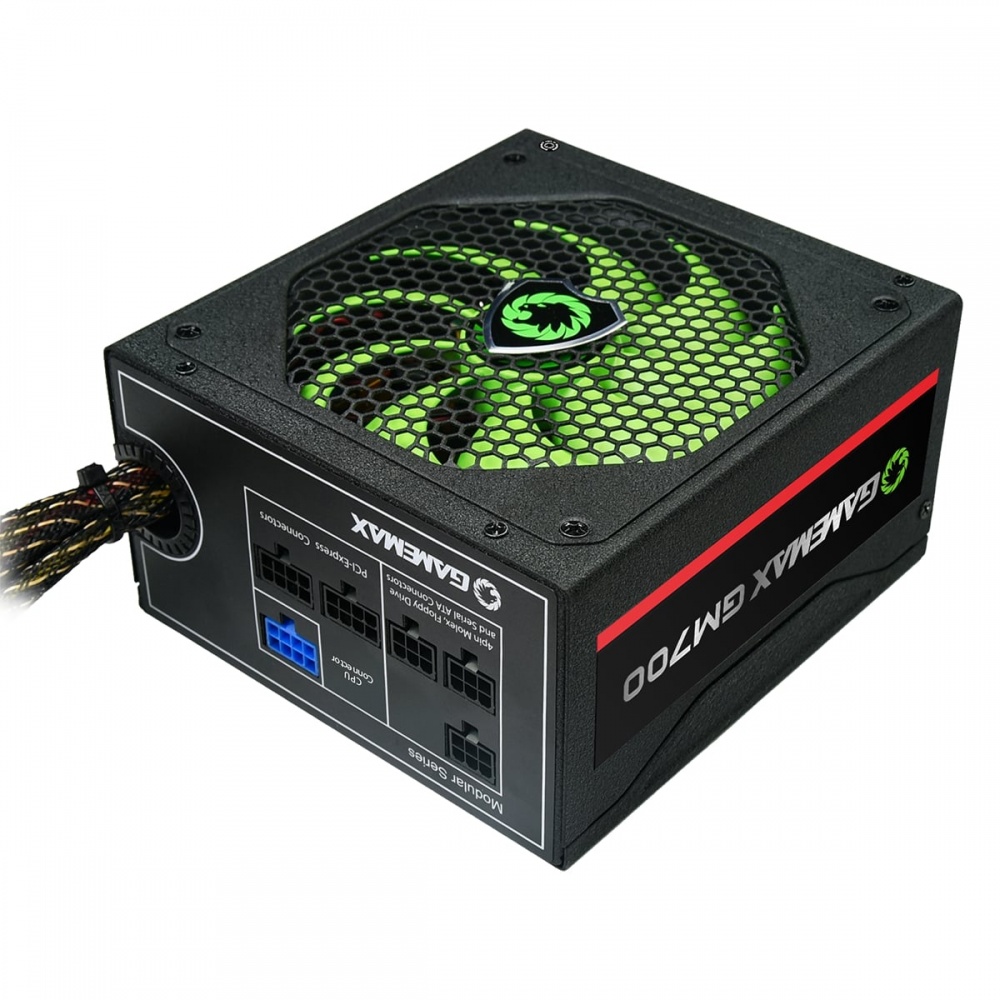

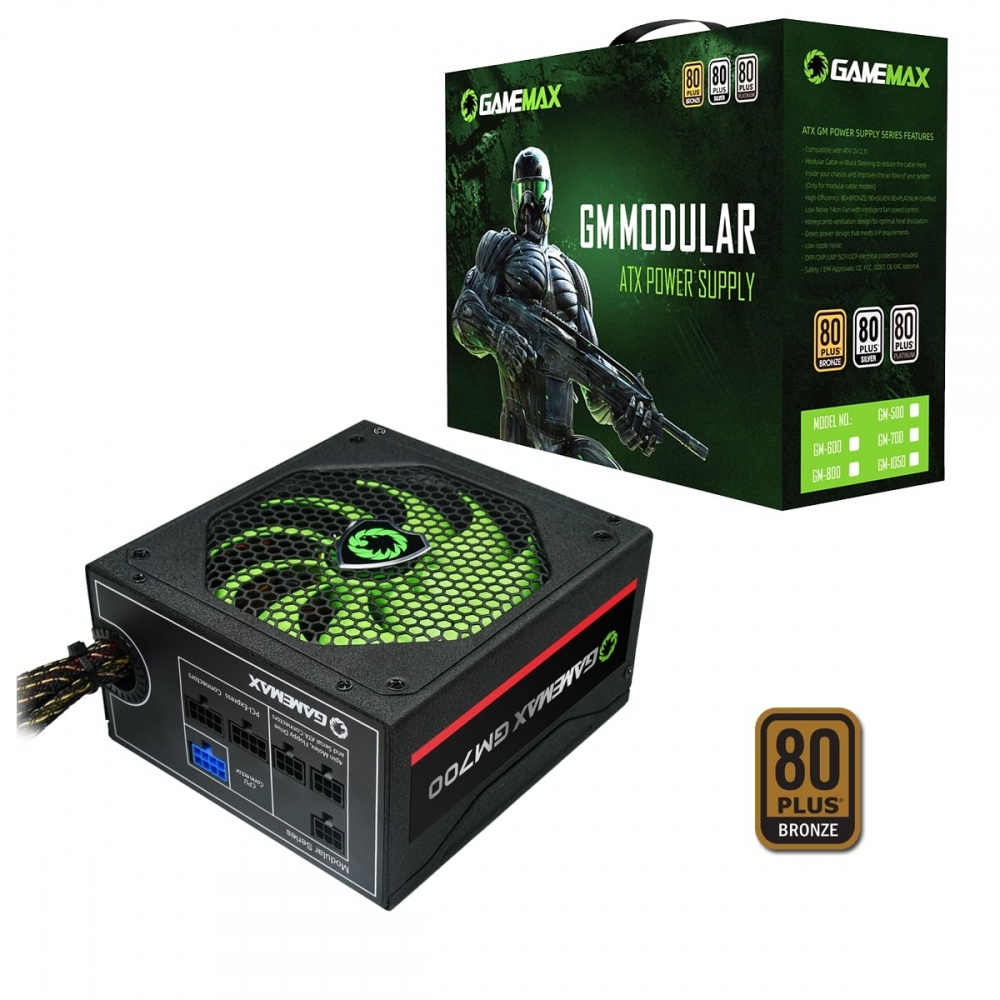

GameMax Semi-Modular Series is a semi-Modular PSU with a compact andquiet engineering, with semi-modular cables for easy maintenance,allowing you to only connect the cables that your system needs. Fewercables allow it to be tidy and have better airflow inside your case. High80 Plus efficiency, reduced ripple and electrical instabilities andbetter efficiency and protection give the user durability and totalconfidence in your next system build.
Key Features- Elegant black PSU casing with fully black mesh cables
- ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
- High-efficiency PSU, up to 85% efficiency
- Single 12V rail for high compatibility and extremely high currentoutput
- Longer 20 + 4 and 4 + 4 pins up to 600mm are easy for high-endtower chassis installation
- 14cm silent black fan with smart thermal fan speed control circuit
- Full protection functions with OVP / UVP / OPP / SCP / SIP
- Safety and EMC certified by CE
- ECO friendly by RoHS and Erp 2013 directives

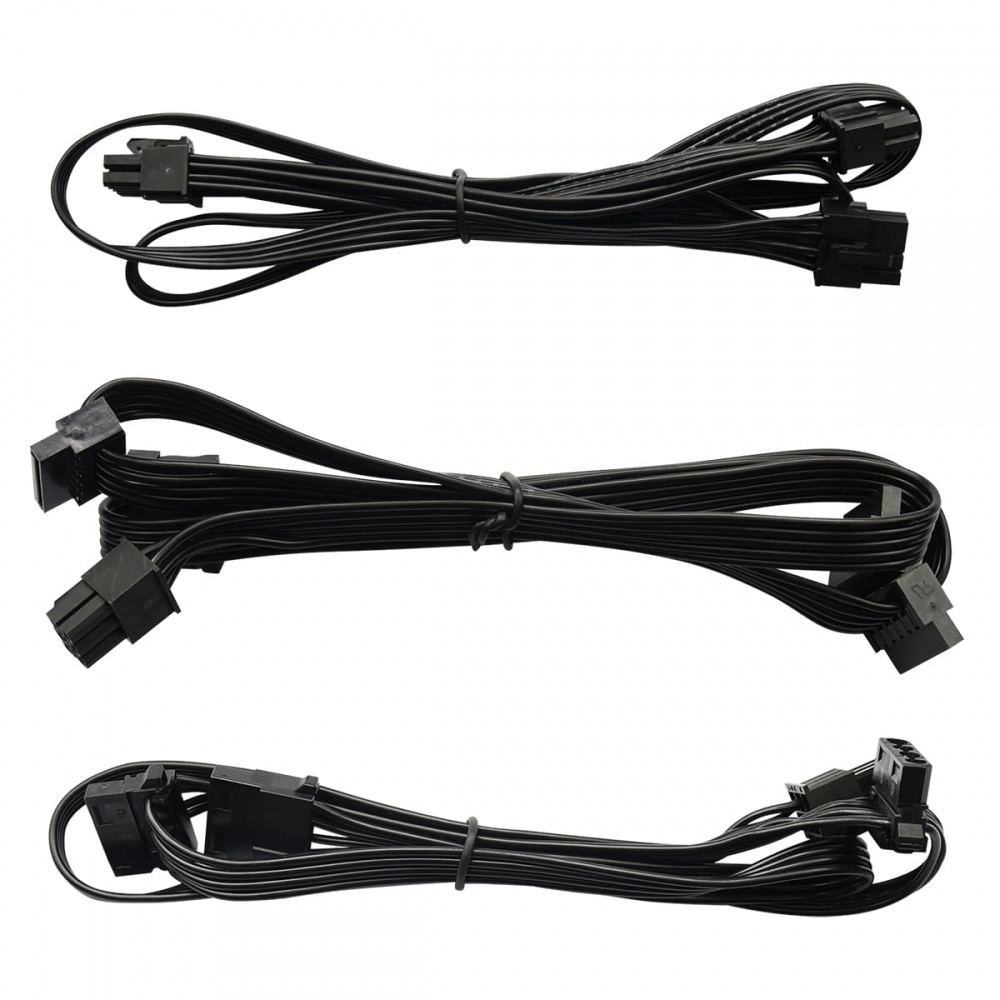

- Semi-modular cables for easy maintenance

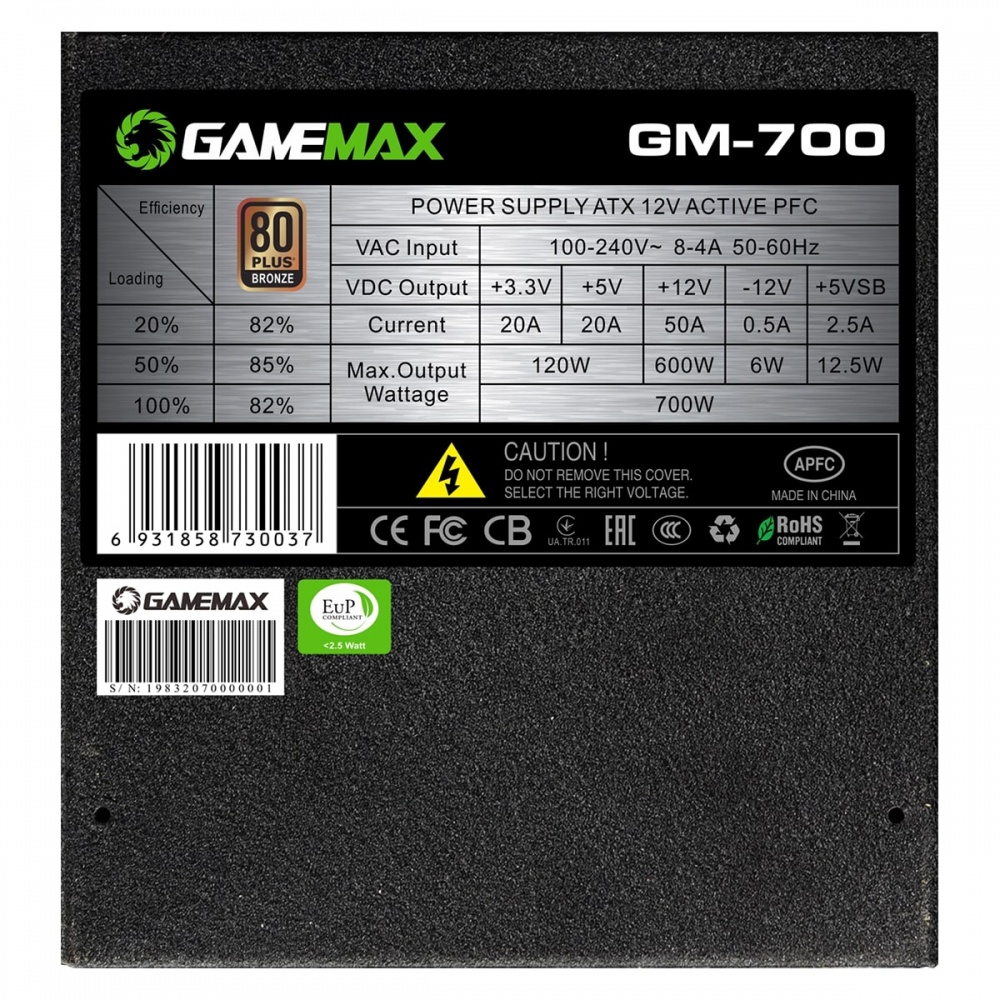

PSU SpecificationsAC INPUT: 100-240 VAC 5-10A 50-60Hz
DC Output Max
+3.3V +5V +12V1 +12V2 -12V +5VSB
20A 20A 25A 25A 0.5A 2.5A
700W
Connectors- 20+4 Pin Main Connectors: x1
- 4+4 Pin 12V Connectors: x1
- SATA Connectors: x6
- 4-Pin Molex Connectors: x3
- 6+2 Pin PCI-e Connectors: x2
Detailed Specifications- Dimensions: 160mm x 85mm x 150mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 5-10A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC (>.99)
- Power Good Signal: 100-500 ms
- Hold Up Time: >17ms
- Efficiency: > 81% (85% max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
- Power: 700W
- Operation Temperature: 0-40°C
- Safety: CE / FCC / CB

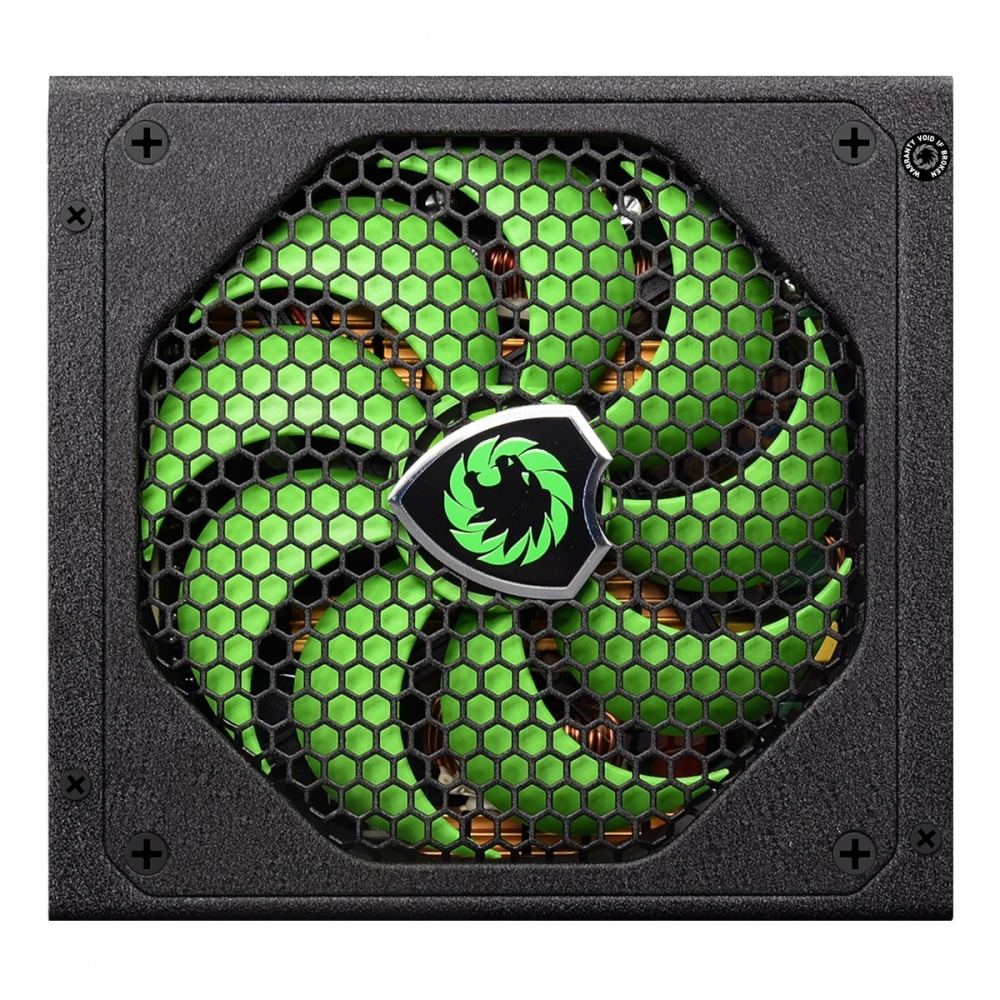

- Cooling: 140mm Ultra Silent Fan
- Noise: <25dBa
- 80 Plus Certified: Yes - 80 Plus Bronze
