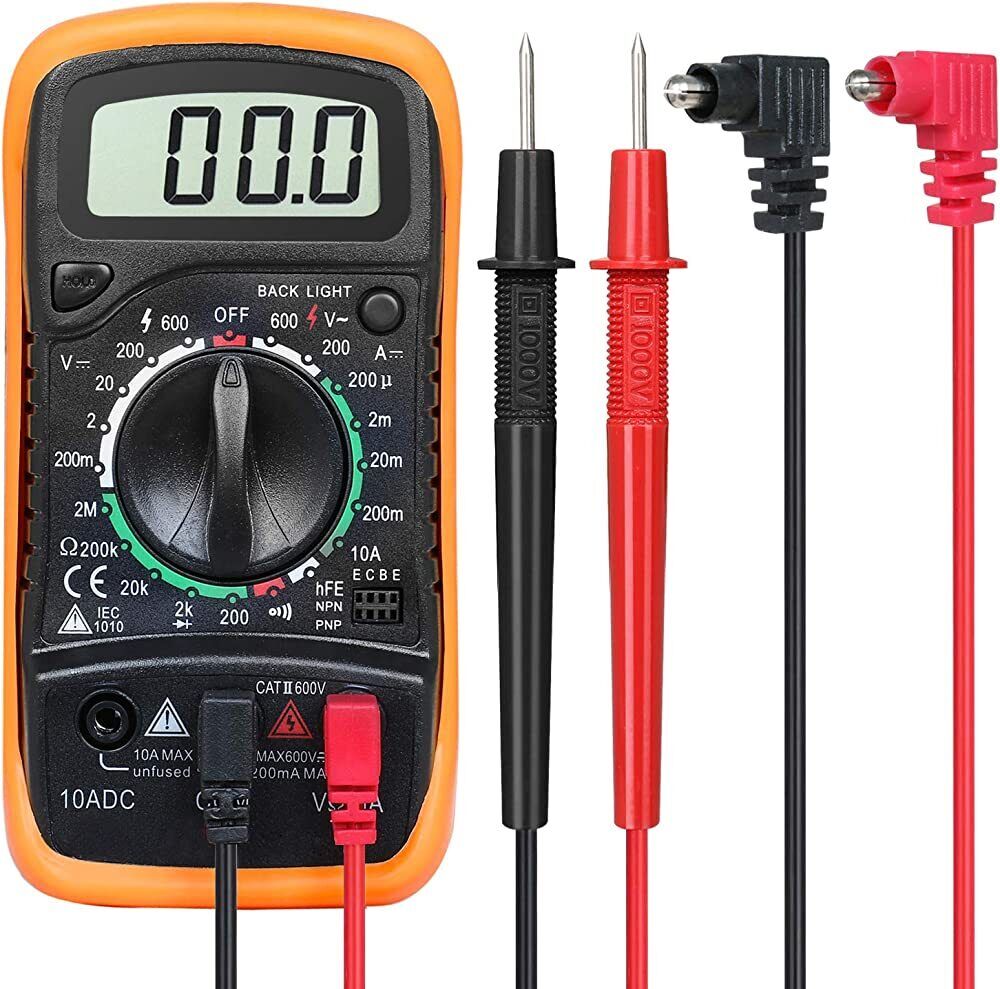

LCD Digital Multimeter Voltmeter Ammeter AC-DC-OHM Current Circuit Tester Buzzer
Features:
This Multi tester can be used for AC/DC voltage test, DC/AC current tests, electric current resistance, (DC amplification) test, Frequency test, two-electrode valve test, NPN PNP transistor test, etc.
Digital LCD multi-meter, can be used for Ohm AC/DC volt test and overhaul all kinds of circuit boards Auto polarity display/Diode test/Transistor P-N junction test/Transistor HFE test
3 ½ Inch Display
Blue LCD Backlight, 1999 counts, updates 2-3/sec
Data hold funtion
Low battery voltage indication
Continuity test with buzzer sound in circuit
Overload protection on all ranges.
You can use the Multimeter in more places, such as factories, school labs, home hobby, machine repair, etc.
Specifications:
Measuring method: Dual-slope integration A/D Converter
Operating Environment:0 to 40 °C
Power: 9V Battery (Included)
Fuse Protection: 200mA/250V
Size: 138mm x 69mm x31mm
Weight: Approx. 280g
Measurement Range 200VmV-600V ±0.5% of rdg ± 2 digits
Overload Protection: 250V rms
AC Voltage:
Measurement Range 200V-600V ±1.2% ± 10digits
Overload Protection: 600 VDC or rms
DC Current:
Measurement Range DC 2000-10A
±1% of rdg ± 2 digits
Overload Protection: F 200mA / 250V fuse(10A range unfused)
Resistance:
Measurement Range 200 Ohms - 2M Ohms ±0.8%of rdg ± 3 digits
Maximum Open Circuit Voltage: 3.2V
Overload Protection: 250V DC or rms
Transistor: Measurement Range hFE T
Package Contents:
Digital Multi Meter Voltmeter AC DC Current with 9 Volt Battery
With Testing Leads
User Manual
