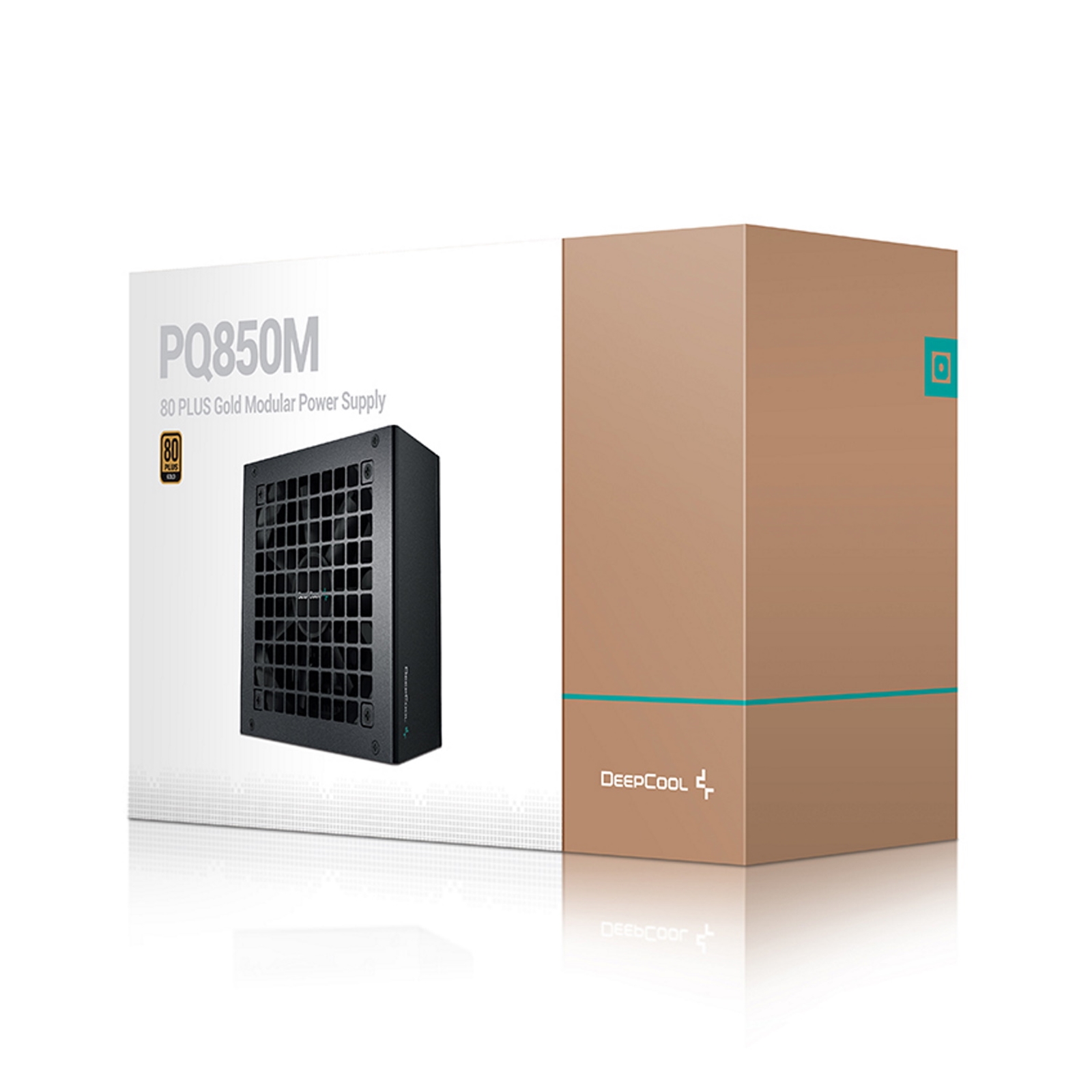

DeepCool PQ850M 850W Power Supply Unit, 120mm Fluid Dynamic Bearing (FDB) Cooling Fan with Hybrid Fanless Mode, 80 PLUS Gold, Fully Modular, UK Plug, Flat Black Cables, Full Japan Electrolytic Capacitors

PQ850M
80 PLUS Gold Modular Power Supply
Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.

A NEW GENERATION
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.

GO FOR GOLD
Certified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The PQ-M Series achieves 90% efficiency at 50% system loads.

BUILT SOLID
Carefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.
- Dual EPS12V & Triple PCIe
- All 105°C Japanese Capacitors

SILENCE IS GOLDEN
A fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.
- Optimized thermal performance.
- Reduced noise levels overall
- Longer lasting lifespan

BEST OF THE BEST
Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.

Type
ATX12V V2.4

Product Dimensions ( W x L x H )
150 x 140 x 86 mm

80 PLUS Certifications
GOLD

Fan Size
120mm

Fan Bearing
FDB

Topology
Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors
Full Japan Electrolytic Capacitors

Power Good Signal
100-500ms

Hold Up Time
=16ms (90% load)

Efficiency
=90% Under Typical Load (50% Loading)

Protection
OPP/OVP/SCP/OTP/OCP

Operation Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

Regulatory
CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA

Erp Regulation
ErP 2013

MTBF
100,000 Hours

Connections
1 x Main Power Connector 24-Pin (20+4) (x1)
2 x EPS 12V Connector 8-Pin (4+4) (x2)
3 x PCIE 6+2 Pin (x1)
2 x SATA (x4)
1 x SATA (x2) & 4-Pin Peripheral (x2)
1 x 4-Pin Peripheral (x3)

Master Carton Quantity
5
