CWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCs

CWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCs
  Zoom
CWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCsCWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCsCWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCsCWT Black Slim 300W TFX Size PSU Power Supply Mini PSU For Slimline PCs
Our Price:  £36.50
(Inc. 20% VAT)

Availability:



In stock

+

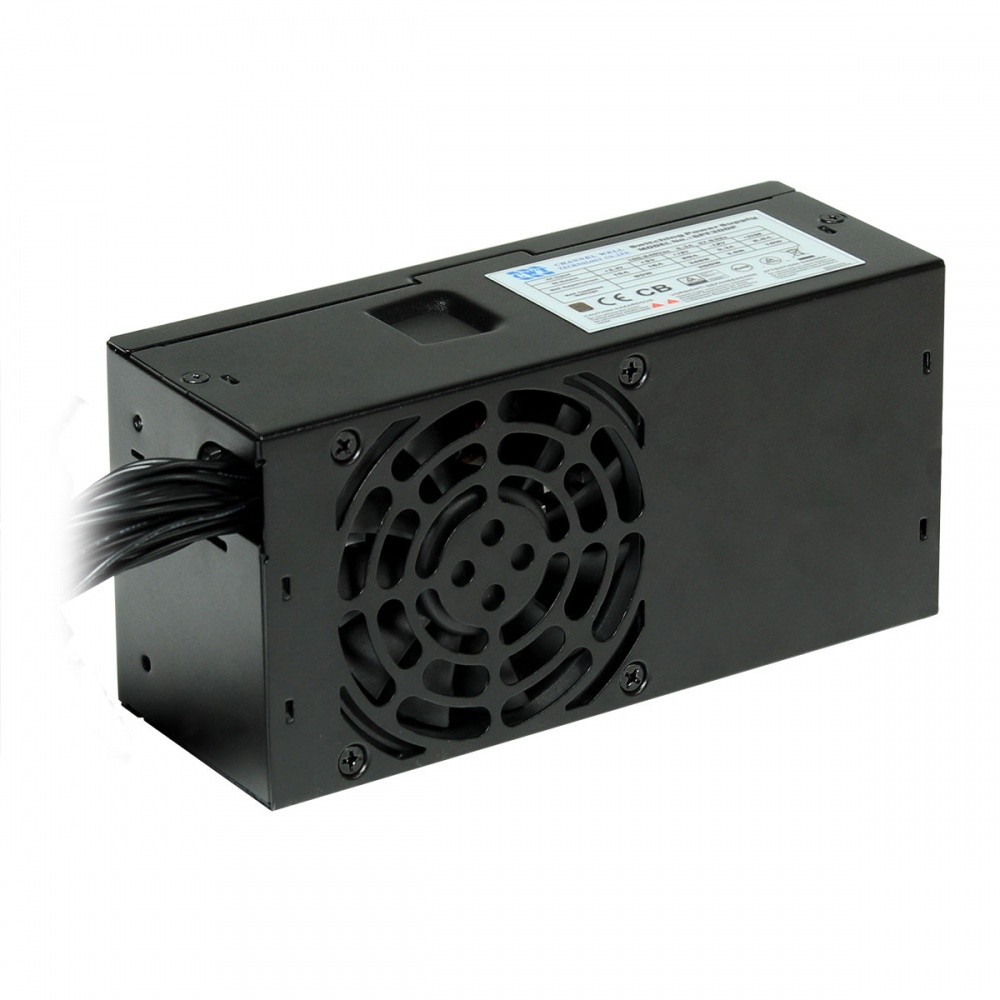

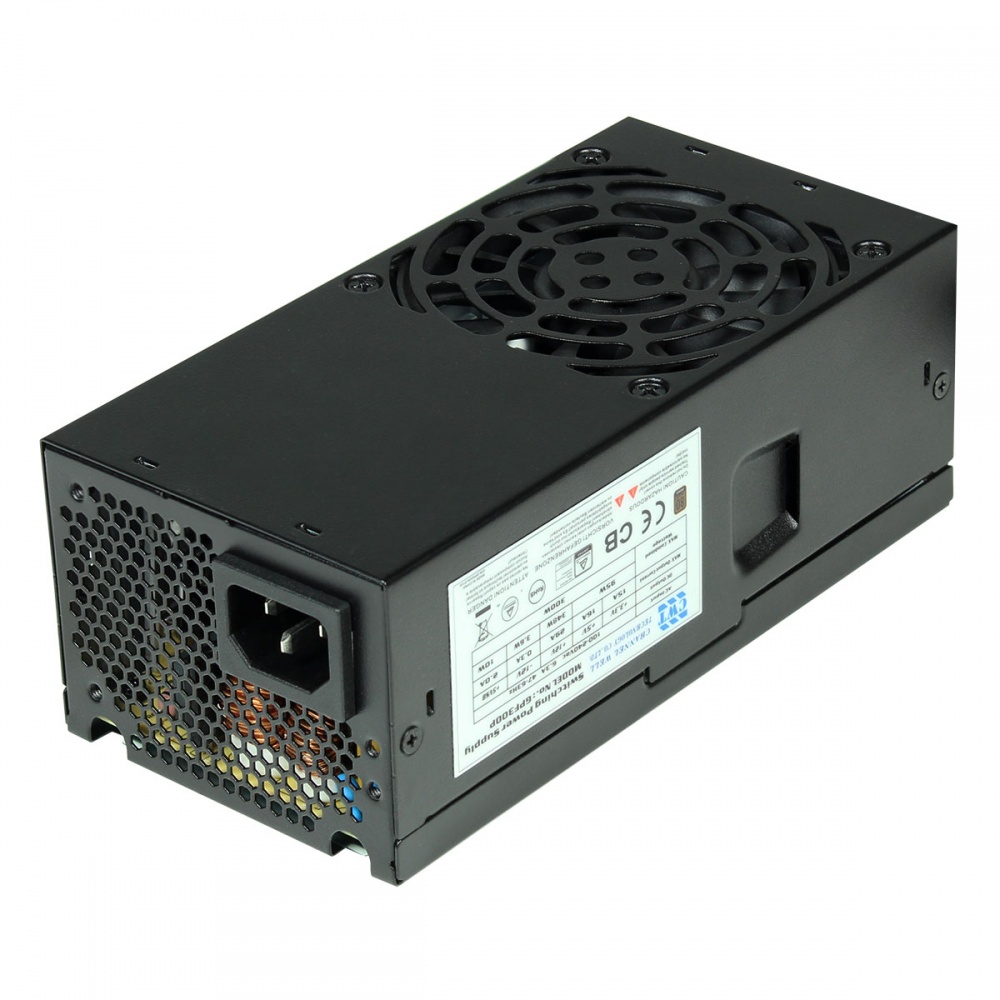

The CWT 300W TFX power supply is excellently designed with thevalue-conscious user in mind. Certified for 80 Plus Bronze, this activePFC unit runs at up to 85 percent (or higher) efficiency whiledelivering a 50 percent load, so you know your saving energy and moneyon your power bills month after month. With 300W of total output powerthere is plenty of juice for the most home or office situations.Featuring short circuit protection, the CWT 300W TFX power supplyprovides the maximum reliability. Cooling is handled by an 80mm fan.Complete with a hexagonal grid pattern on the back panel, it remainscool and operates at peak performance consistently.

L-Shaped SATA Connectors

Thanks to their L-shape, the Sata power connectors can only connect theright way.

Key Features
  • 3 x L-Shaped SATA Connectors
  • 80 Plus Bronze Certified
  • Super low noise fan control
  • High efficiency and reliability
  • Low ripple & noise
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • Warranty - The CWT 300W TFX PSU comes with 2 year warranty forunits bought after 1st Jan 2023.


PSU Specifications

AC INPUT: 100-240 VAC 6.3A47-63 Hz
DC Output:
+3.3V    +5V    +12V1   -12V    +5VSB
15A       16A    29A        0.3A     2A
Max: 300W

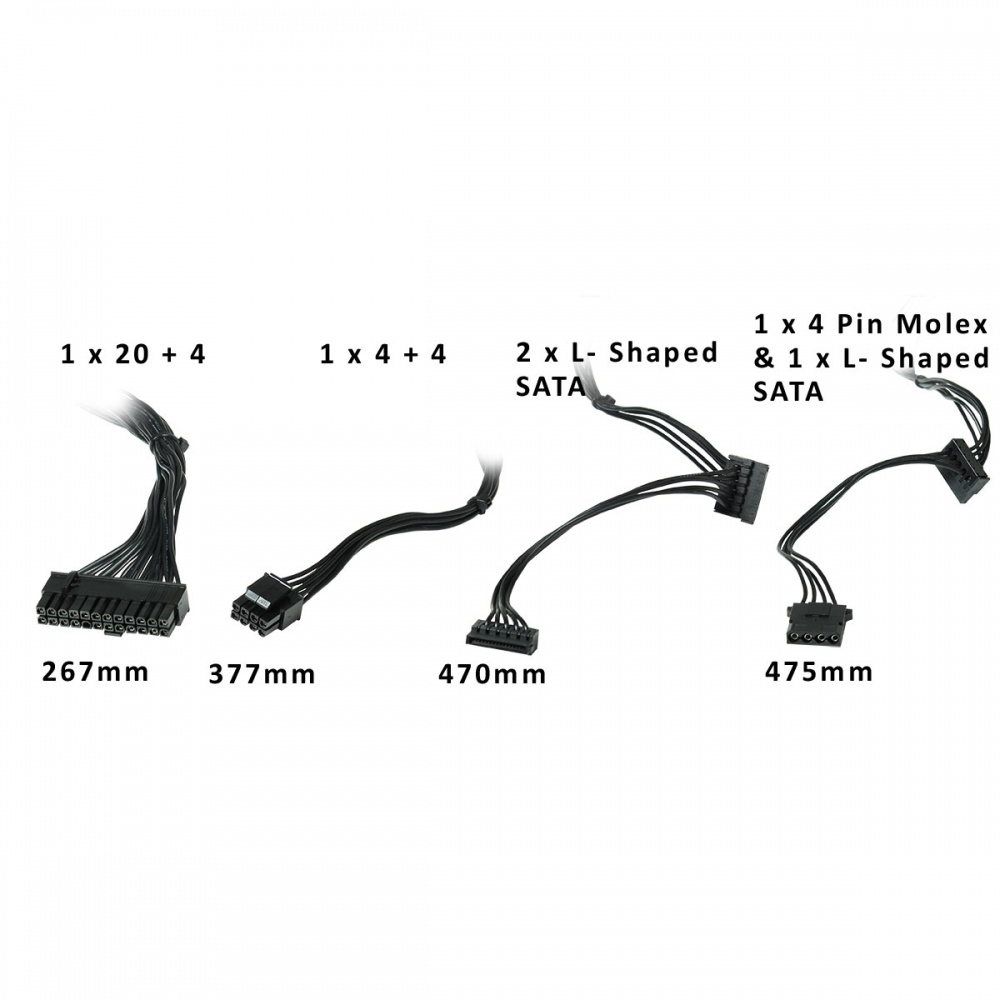

Connectors
  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors:1
  • SATA Connectors:3
  • 4-Pin Molex Connectors:1

Detailed Specifications

  • Dimensions: 85mm x 65mm x 175mm (W x H x D)
  • Input Voltage: 100-240 VAC
  • Input Current: 6.3A
  • Input Frequency Range: 47-63 Hz
  • PFC: Active PFC>0.99
  • Power Good Signal: 100-500ms
  • Hold Up Time: >17ms
  • Efficiency: >81% (85% max)
  • MTBF: 80,000 Hours
  • Protection: OVP/OPP/SCP/UVP
  • Power: 300W
  • Operation Temperature: 0-50°C
  • Safety: CB/CE/TUV
  • Cooling: 8cm fan
  • Noise: <34 dBA
  • 80 Plus Certified: Yes - 80 Plus Bronze

Model:  1006729
Bar Code:  5055492408204
Part Number:  GPF300P
Brand:  CWT
80 Plus Rating:  80 Plus Bronze
Wattage:  300 W
PSU Form Factor:  TFX
Modular Cable:  None
Colour:  Black
LED Colour:  None
