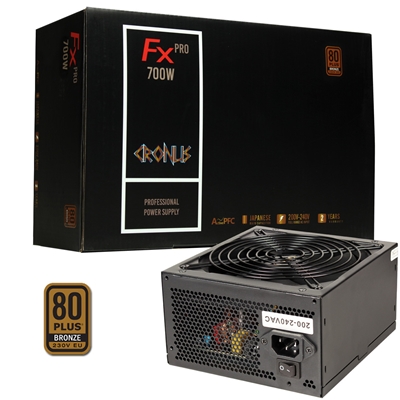

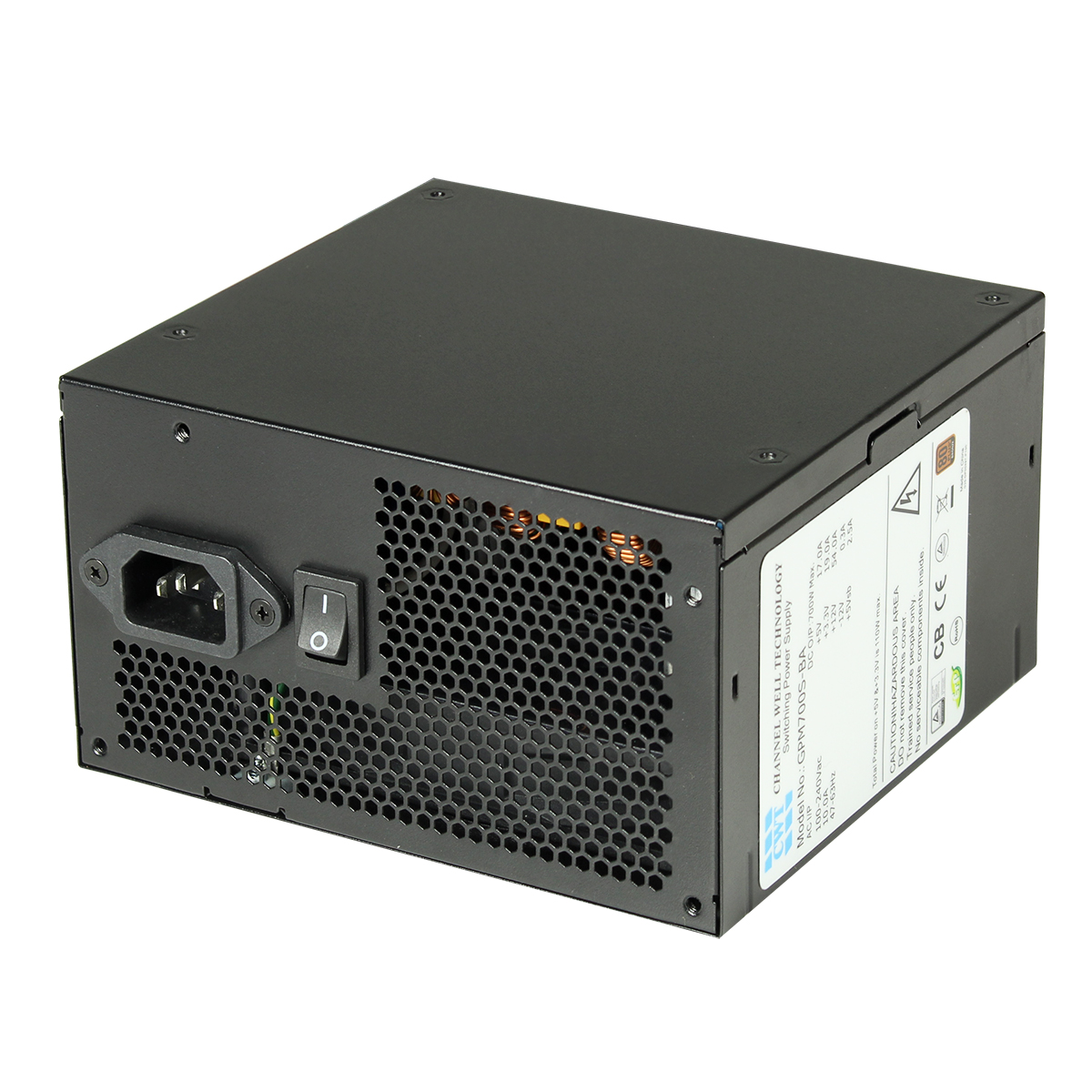

CWT 700W PSU 80+ Bronze Full Range White Box

• Compatible with Intel ATX 12V v.2.3 and EPS 12V v.2.92standards.
• Single +12v 54A rail provide more stability and safer poweroutput.
• Quad PCI-E connectors, up to 4 graphics cards SLI /Crossfire ready!

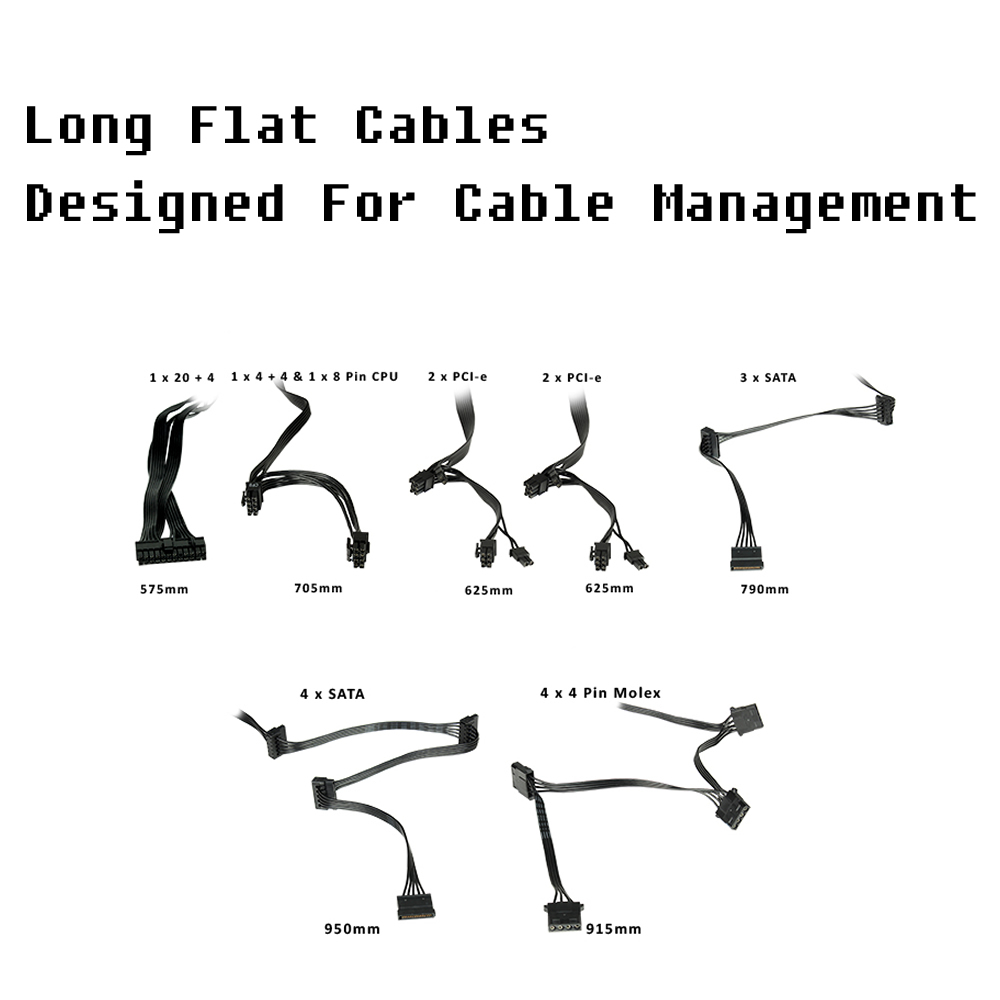

• Long & Flat cables, best for cable management.

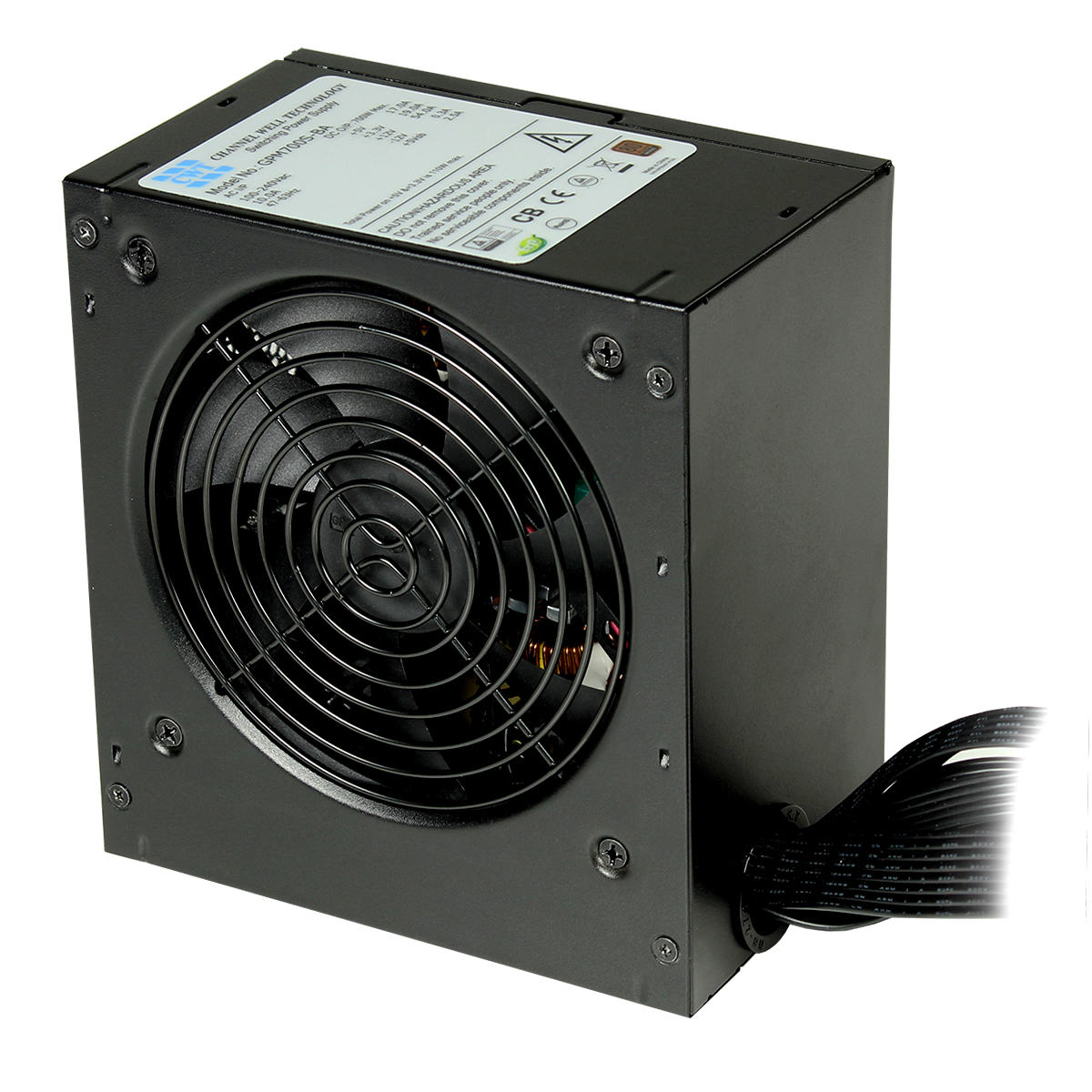

• Silent FDB 120mm fan for the best overall airflow and heatdissipation.
• Over voltage protection, Over power protection, shortcircuit protection and thermal overload cut-off protection.
• Safety agency approval: CE & CB.
• Low noise and ripple. Longer flat designed cables foreasier cable management.
• This 12V ATX PC power supply is the best choice for yourdesktop computer.
• 80+ Bronze Certified.

• AC Input:  200-240Vac 4.0A 47-63HZ
• DC Output:  +3.3V 17A, +5V 19A, +12V1 54A, -12V0.3A, +5VSB 2.5A
• Max Output: 700W
• Dimensions: 150mm x 86mm x 140mm (W x H x D)
• PFC: Active PFC
• Power Good Signal: 100-500ms
• Hold Up Time:  10msec min at 80%
• Efficiency: < 85%
• MTBF: 100,000 Hours
• Safety Protection: OPP/OVP/UVP/SCP
• Operation Temperature:    0-40°C
• Safety Certificates:  CB/CE/TUV/ERP
• Cooling:  120mm Fan
• Noise: < 42dBA
• 80 Plus Certified: Yes 80 Plus Bronze Efficency

• 1x 24-Pin (20+4 pin)
• 1x 8-Pin 12V (4+4 pin)
• 7x SATA
• 4x 4-Pin Molex
• 4x 8-Pin PCI-E (6+2 Pin)
• 1x Floppy

Model:  1005928
Bar Code:  5055492408556
Part Number:  CWT700W
Brand:  CWT
80 Plus Rating:  80 Plus Bronze
Wattage:  700 W
PSU Form Factor:  ATX
Modular Cable:  Semi-Modular
