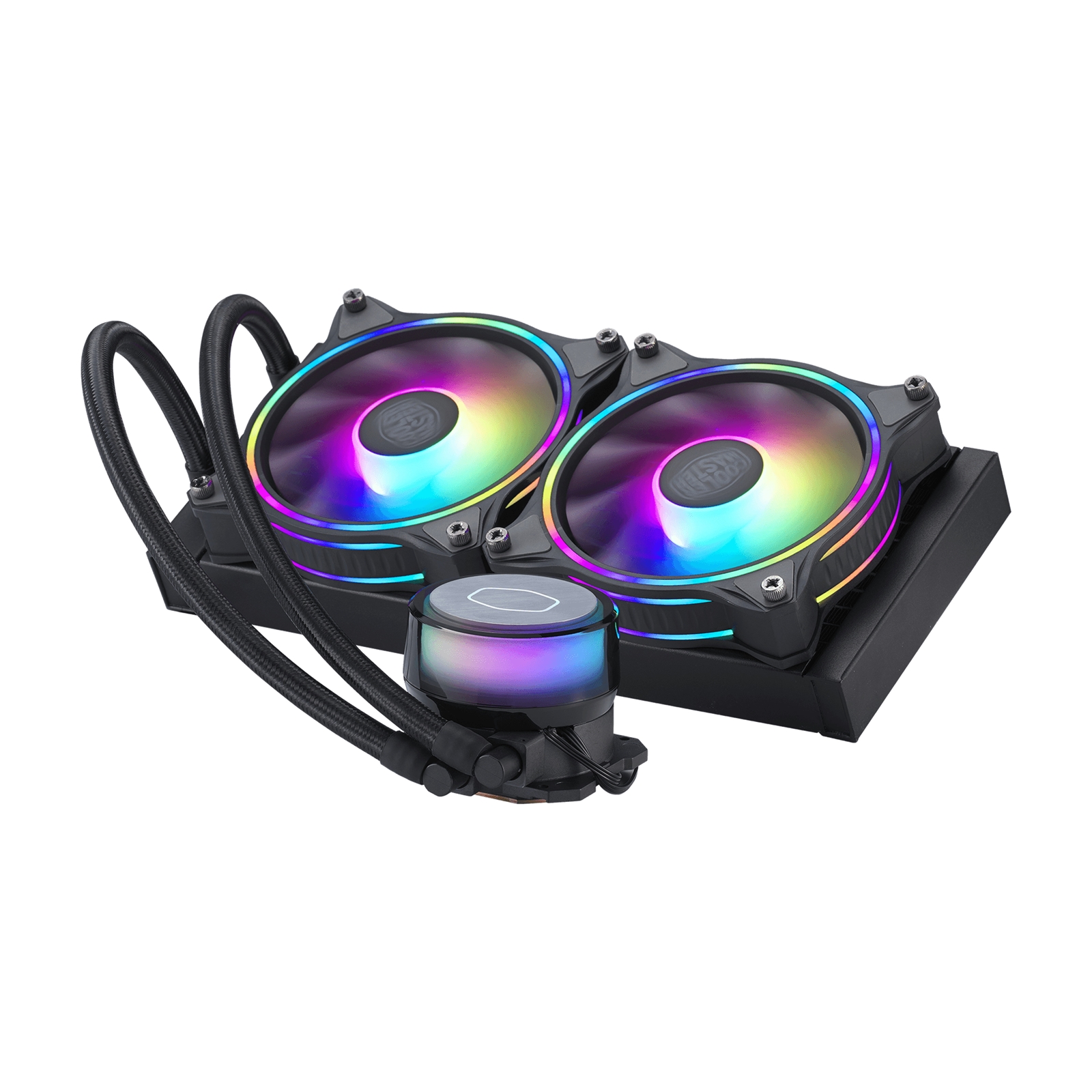

Cooler Master MasterLiquid ML240 Illusion Universal Socket 240mm PWM 1800RPM Addressable Gen 2 RGB LED AiO Liquid CPU Cooler with Wired ARGB Controller

MASTERLIQUID ML240 ILLUSION
- Translucent Dome
- Optimized Dual Chamber Pump
- Expanded Dissipation Surface Area
- MasterFan MF120 Halo
- MasterPlus+ Software

SEE IT TO BELIEVE IT
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.

TRANSLUCENT DOME
Stunning lighting visuals with translucent water chamber dome compatible with software customization

NEW 3RD GEN DUAL CHAMBER PUMP
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.

EXPANDED DISSIPATION SURFACE AREA
Widened radiator water channels for increased cooling surface area.

MASTERFAN MF120 HALO
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color

NEW ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more - all from an intuitive, convenient interface

Model Number
MLX-D24M-A18P2-R1

Exterior Colour
Black

Socket Compatibility
Intel: LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156
AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

Radiator
Size: 240mm
Material: Aluminum
Dimensions: 277 x 119.6 x 27.2 mm

Pump
Dimensions: 81.4 x 76 x 57.8 mm
MTTF: 70,000 Hours
Noise Level: < 10 dBA
Connection: 3-Pin
Rated Voltage: 12 VDC
Power Consumption: 2.36 W

Fan
Dimensions: 120 x 120 x 25 mm ( L X W X H )
Fan Quantity: 2
LED Type: Addressable Gen 2 RGB
Speed: 650-1800 RPM ± 10%
Airflow: 47.2 (Max)
Noise Level: 6 - 30 dBA
Pressure: 1.60 mmH2O (Max)
Life Expectancy: 160,000 Hours
Power Connection: 4-Pin (PWM)
Rated Voltage: 12VDC
Rated Current: 0.25A
