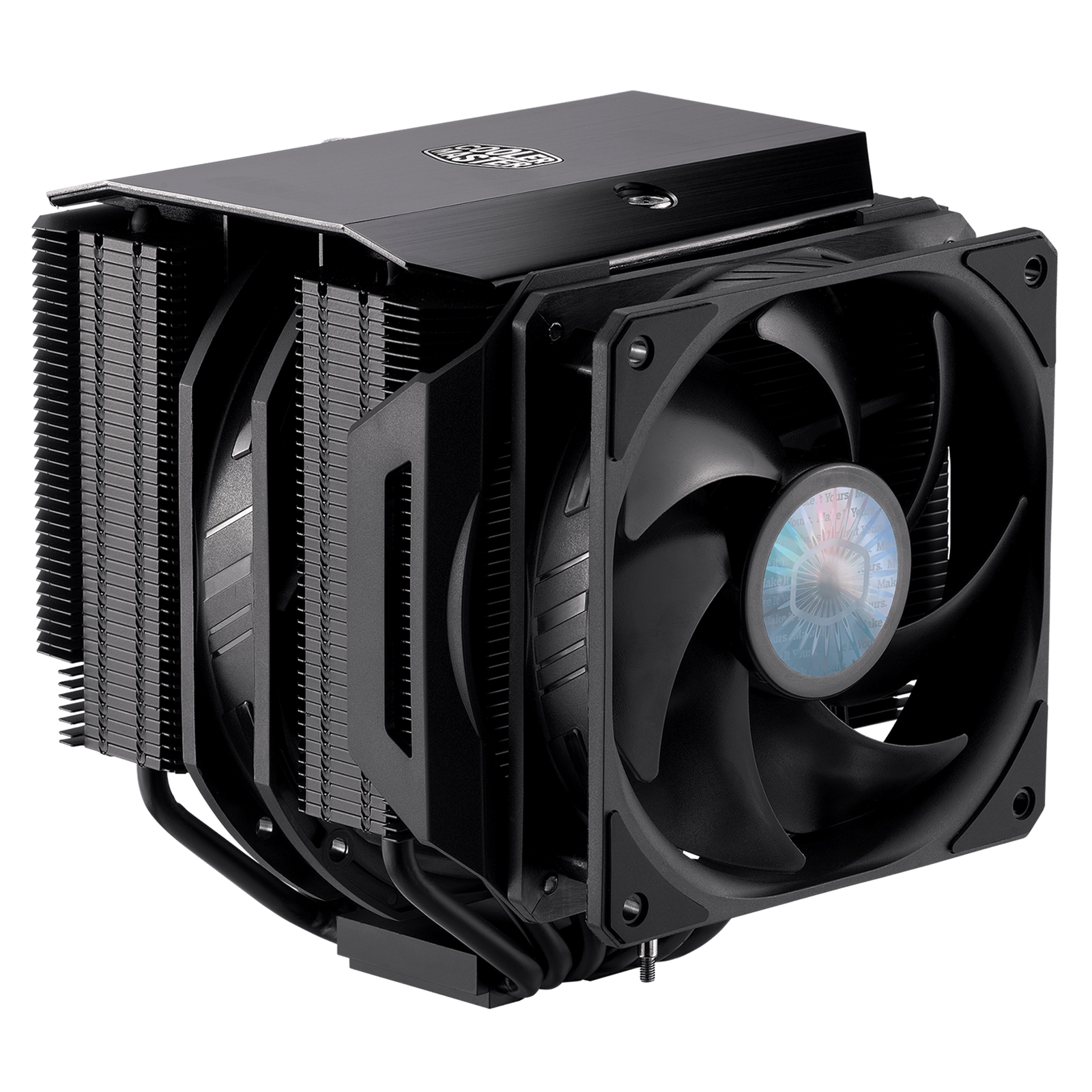

COOLER MASTER MasterAir MA624 Stealth Fan CPU Cooler, Universal Socket, Dual 140mm SickleFlow PWM with Additional 120mm Fan for RAM Clearance, 1400RPM, 6 Heat Pipes with Nickel Plated Base, Premium Aluminum Black Top Cover

MASTERAIR MA624 STEALTH
DUAL TOWER DUAL FAN TWICE THE PERFORMANCE
- Premium Aluminum Black Top Cover
- Dual Tower Heat Sink
- 6 Heat Pipes with Nickel Plated Base
- Dual SickleFlow 140 Fan
- 3rd 120 mm fan for RAM Clearance
- Easy Mounting System

PREMIUM AESTHETICS
Stealth black aluminum top cover matches all-black hardware throughout to offer a premium finish

RELENTLESS COOLING POWER
6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation.

TWICE THE SURFACE AREA
Dual tower heatsinks provide twice the surface area for better cooling
Best combination of fin thickness and distance between layers ensures maximum airflow through the heatsink

QUIET AND POWERFUL
Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels
- Noise Level: 27 dBA (Max)
- Air Flow: 67 CFM
- Air Pressure: 2.25 mmH2O

INCLUDES DUAL SICKLEFLOW 140 & ONE SICKLEFLOW 120
Optional 3rd SickleFlow 120 fan included for necessary RAM clearance

COMPATIBILITY & CLEARANCE
Optimized design for graphic cards' compatibility on ATX and M-ATX platforms.

Fan Configuration
- SickleFlow 120 x 1 & SickleFlow 140 x 1
- Allows 40mm RAM height for clearance and compatibility.

SickleFlow 140 x 1
- Concave heatsink design provides up to 70mm RAM compatibility.

EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation

PREMIUM ALUMINUM BLACK TOP COVER
Black aluminum top cover offers a premium finish

DUAL TOWER HEAT SINK
Dual tower heatsinks provide twice the surface area for better cooling

6 HEAT PIPES WITH NICKEL PLATED BASE
6 heat pipes and nickel- plated base provides optimal coverage for exceptional cooling

DUAL SICKLEFLOW 140 FAN
Twin fans utilize Push-Pull setup for optimal airflow and pressure

RAM CLEARANCE OPTION
Optional 3rd SickleFlow 120mm fan included for necessary RAM compatibility and clearance

EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation

Series
MasterAir

Exterior Colour
Black

CPU Socket Compatibility
Intel: LGA1700 / LGA1200 / LGA2066 / LGA2011-v3 / LGA2011 / LGA1151 / LGA1150 / LGA1155 / LGA1156 / LGA1366
AMD: AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

Heat Sink Material
6 Heat Pipes
Aluminum Fins

Fan Dimensions ( L x W x H )
140mm Fan: 140 x 140 x 25 mm
120mm Fan: 120 x 120 x 25 mm

Fan Quantity
140mm Fan: 2
120mm Fan: 1

Fan Speed
140 mm Fan - 650-1400 RPM (PWM) ± 5%, 120 mm Fan - 650-1800 RPM (PWM) ± 5%

Fan Airflow
140 mm Fan - 67 CFM (Max), 120 mm Fan - 62 CFM (Max)

Fan Noise Level
140 mm Fan - 10 ~ 27 dBA, 120 mm Fan - 8 ~ 27 dBA

Fan Air Pressure
140 mm Fan - 2.25 mmH2O (Max), 120 mm Fan - 2.5 mmH2O (Max)

Fan MTTF
160,000 Hours

Fan Power Connector
4-Pin (PWM)

Fan Rated Voltage
12VDC

Fan Rated Current
0.15A

Fan Safety Current
140 mm Fan - 0.4A, 120 mm Fan - 0.37A

Fan Power Consumption
1.8W

Cooler Type
Air Cooler

Heatpipes
6

Dimensions ( L x W x H )
144.9 x 153.2 x 160 mm
