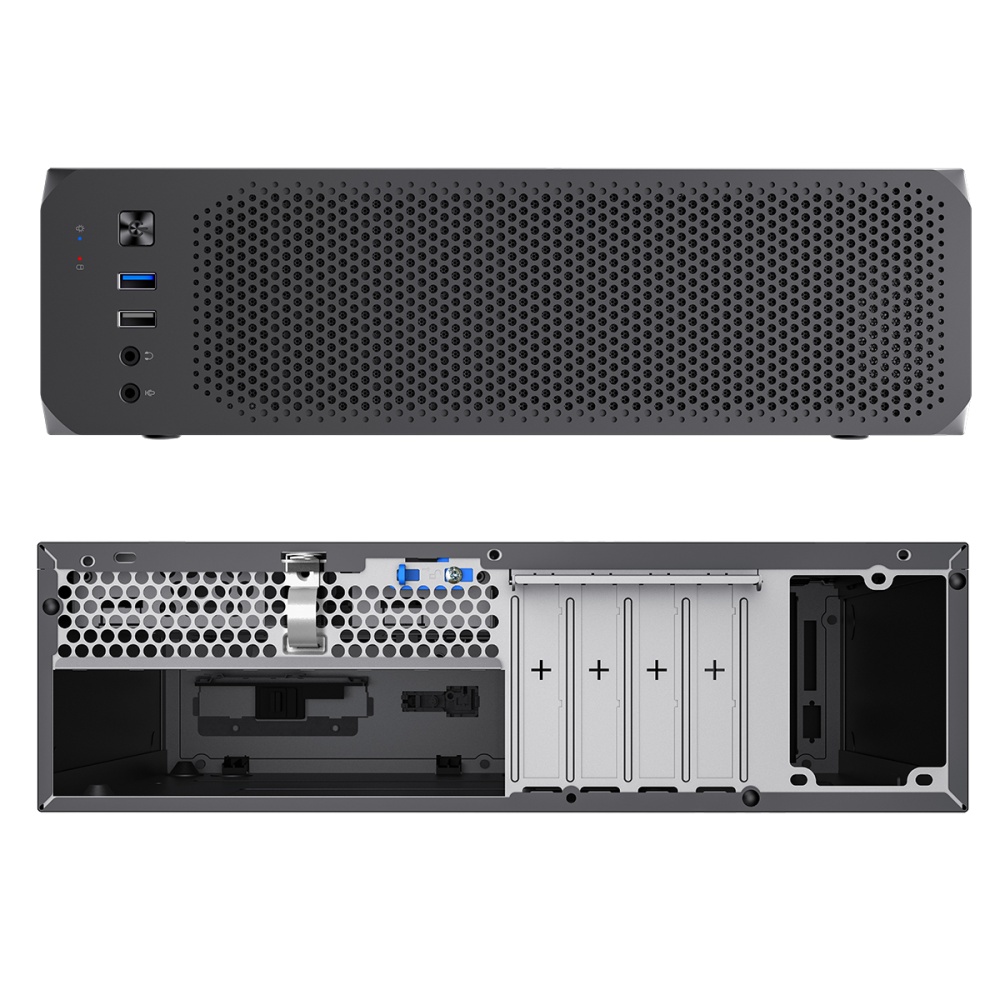

The S8 designed by CiT is a stylish, compact & high performanceMicro-ATX case designed to complement any home, office, and school.Depending on your space requirements, the case is designed forhorizontal or vertical use.
An all-black exterior and a highly expandable interior with adetachable drive cage allows for multiple drives to be installed alongwith a quick release side panel and fully tool-less design guaranteesquick and easy installation.
With a height/width of precisely 95mm, the CiT S8 is unusually compact- it allows you to set the orientation depending on the spaceavailable. Exceptional flexibility and scalability make it a brilliantchoice for use in offices and schools thanks to the enhancedmulti-functional applications the S8 offers.
CiT S8 Compatible With TFX Size PSUs
Key Features- CiT S8 - A Micro-ATX 8.3 Litre chassis designed for home,business, and school usage.
- Detachable Drive Cage - The removable drive cage features a slimODD, 3.5 HDD or up to 2 x 2.5 drives.
- Advanced Thermal Solution - Includes a front 80mm black fan withplenty of ventilation providing an exceptional cooling performance.
- Supports Micro-ATX Motherboards - Efficiently utilising thecompact size of the chassis, the S8 supports Micro-ATX providingflexibility for system integrators.
- Standard TFX 12V 300W Power Supply - A compact TFX form factorpower supply is required due to the dimensions of the case. This pointsoutwards from the bottom of the case when set vertically.
- I/O Ports inc. 2 x USB3.0 - The I/O ports situated on the frontpanel include 2 x USB3.0 and 2 x USB2.0.
Specifications- Chassis Dimensions (Excluding Fascia / Panels): (W) 321 x (H) 95 x (D) 265mm
- PSU Support: TFX
- PSU Max. Length: 160mm
- Front Fan Powered Via: 3 Pin Fan
- GPU Max. Length: 250mm (Half Height)
Case Specifications- Form Factor: Micro ATX
- Motherboard Support: Micro ATX, Mini ITX
- PSU Support:
- PSU Location: Bottom
- Gaming Case: No
- Water Cooling: Not Water Cooling Ready
- Body Material: 0.6mmSGCC
- Front Bezel Material: ABS
- Side Panel: Metal
- External Bays: 1 x 5.25” External
- Internal Bays: 1 x 3.5” Internal
- 2 x 2.5” Internal
- Drive Bay Notes: 1 x 2.5" Shared with 3.5"
- Expansion Slots: 4 x Half-Height
- Cooling Front: Space For 1 x 80mm Fan (1 x 80mmFan Included)
- Cooling Top: None
- Cooling Rear: None
- Cooling Side: None
- Cooling Bottom: None
- IO Ports: 2 x USB 3.0
- 2 x USB 2.0
- 1 x HD Audio
- 1 x Microphone
- GPU Max Length: 250mm
- CPU Cooler Maximum Height: 80mm
- Front Bezel Colour: Black
- Body Colour: Black / Bare Metal
- System Cabinet Features:
- PSU Included: No
