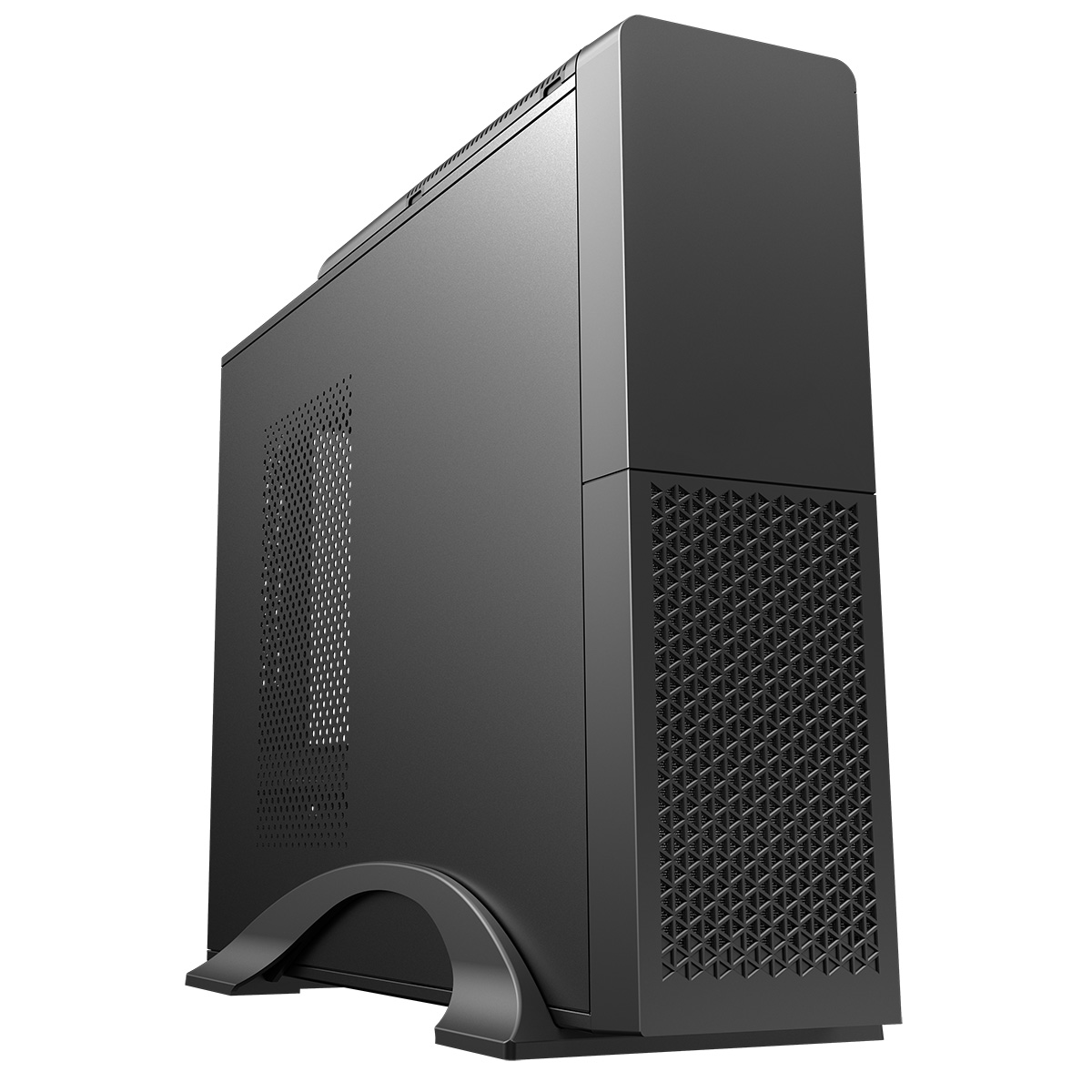

Following on from the CiT S014B, CiT have released the S015B, a compactMicro-ATX case with a high performance and designed for use in schoolsas well as offices.
The width/height of the chassis is 10cm and the internal design isunusually very compact, and it allows you to save desk space in yourchosen environment.
Supporting Micro ATX and Mini-ITX Motherboards and air vents situatedon the top, both sides and the rear, the airflow inside the S015B hasbeen taken care of and has been enhanced with the pre-installed 80mmfan and a silent Micro SFX 300W PSU is included, helping provide thebest performance.

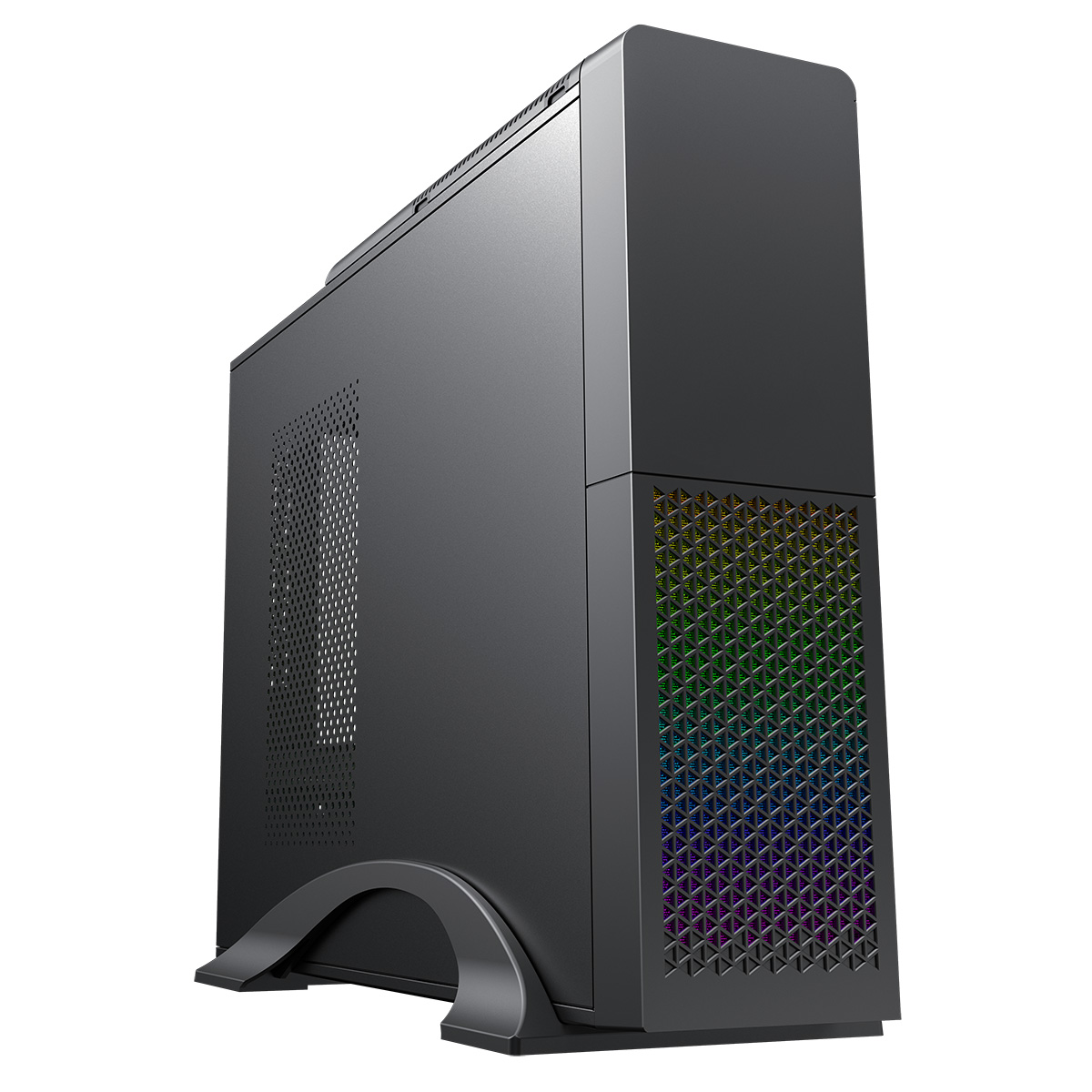

Functionality aside, the appearance of the S015B is a subtle, clean anda clever one and the RGB Rainbow LED front panel adds a touch of classto create a perfectly balanced Slim Micro-ATX chassis.
Key Features- CiT S015B - Available in two versions, the S015B is a Micro-ATX10.7L computer chassis designed for office and school.
- USB Type-C Port - State of the art feature the S015B I/O includesa Type-C port and supports fast data transfer compared to standardUSB3.0 and have up to 10Gbps transfer speeds.
- Focus On Airflow - The optimised design and unique dual coolinglayout of the S015B, the included 80mm top fan, room to fit another50mm fan at the bottom and there is plenty of ventilation. A computerchassis built with plenty of air intakes, guaranteeing to exhaust thenegative air through multiple channels providing the perfect coolingperformance.
- Supports Micro-ATX Motherboards - Efficiently utilising thecompact size of the chassis, the internal of the S015B supportsMicro-ATX Motherboards (244 x 244mm).
- Removeable Hard Drive Cage - Featuring 2 x 2.5", 2 x 3.5" & 1x 5.25" internal hard drives and the removable HDD/ODD cage for easyinstallation of your computer components. Please note at the bottom ofthe chassis you can install either a 2.5" internal hard drive or a 50mmcooling fan, not both.
- 300W Power Supply Included - The CiT M-300U silent Micro-ATX SFX300W PSU is pre-installed in the S015B.
Specifications- Chassis Dimensions (Excluding Fascia / Panels): (W) 100 x (H) 295x (D) 365mm
- CiT M-300U 300W Power Supply Included:
- Rail: Max. DC Output
- 3.3V: 16A
- 5V: 16A
- 12V: 14A
- -12V: 0.3A
- 5VSB: 2A
- PSU Connectors and Qty:
- 20 Plus 4pin ATX Mainboard: 1
- 12V 4 Pin CPU: 1
- 4 Pin Molex: 2
- SATA: 3
- FDD: 1
- PSU max. Length (mm): 115mm
- 1 x 80mm Black Fan Included:
- Fan Powered Via: 3 Pin
Case Specifications- Form Factor: Micro ATX
- Motherboard Support: Micro ATX, Mini ITX
- PSU Support: Micro ATX
- PSU Location: Front
- Gaming Case: No
- Water Cooling: Not Water Cooling Ready
- Body Material: 0.5mmSECCMetal
- Front Bezel Material: ABS
- Side Panel: Vented
- External Bays:
- Internal Bays: 2 x 3.5” Internal
- 2 x 2.5” Internal
- Drive Bay Notes: 1 x 2.5" & 3.5" Shared & 1 x 5.25"Internal Bay
- Expansion Slots: 4 x Half-Height
- Cooling Front: None
- Cooling Top: Space For 1 x 80mm Fan (1 x 80mm Black Fan Included)
- Cooling Rear: None
- Cooling Side: None
- Cooling Bottom: Space For 1 x 50mm Fan
- IO Ports: 1 x USB 3.1 Type C
- 1 x USB 3.0
- 1 x HD Audio
- 1 x Microphone
- GPU Max Length: 235mm
- CPU Cooler Maximum Height: 65mm
- Front Bezel Colour: Black
- Body Colour: Black / Bare Metal
- System Cabinet Features:
- PSU Included: Yes
