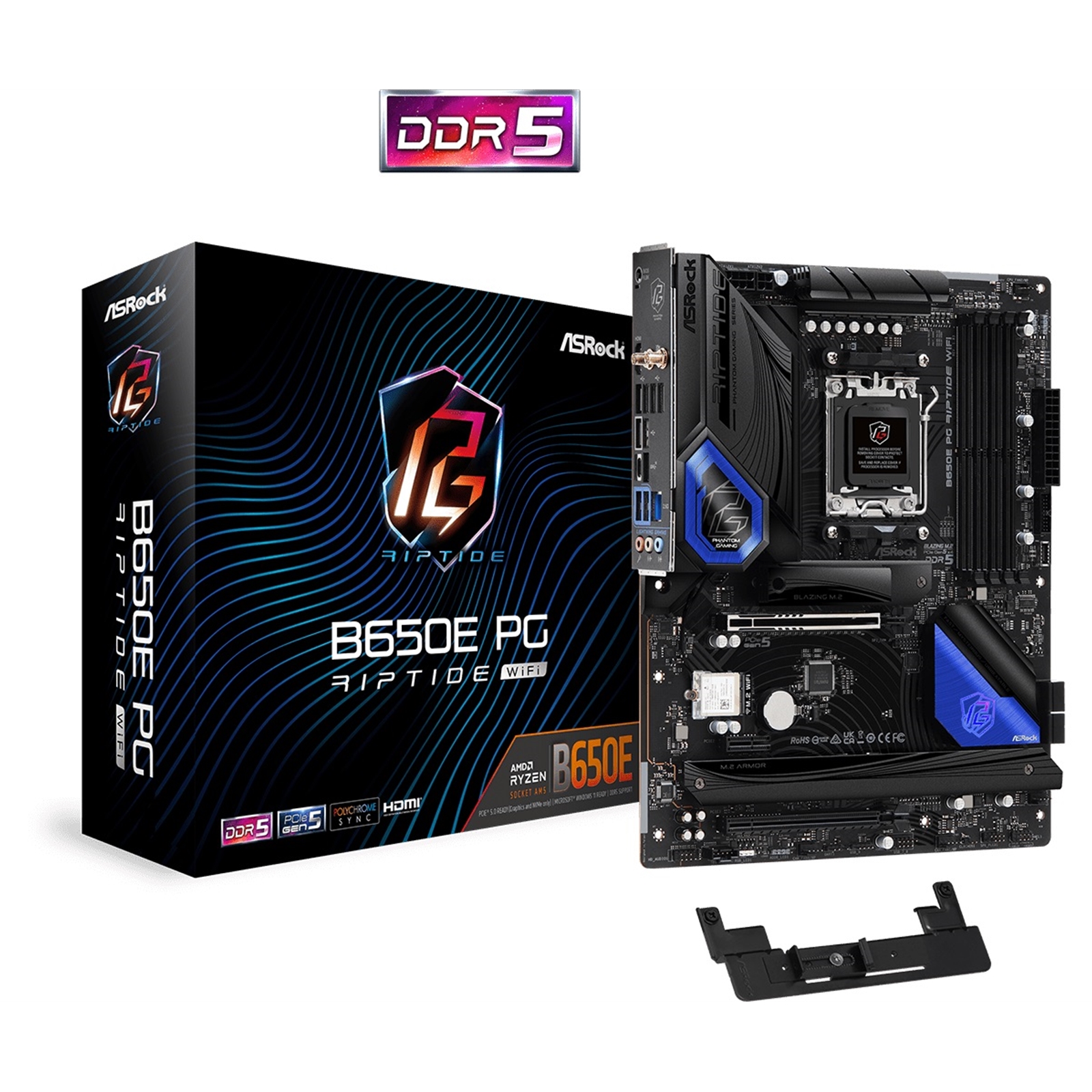

ASRock B650E PG RIPTIDE WIFI Motherboard, AM5 Socket Micro ATX, DDR5, 1x PCIe 4.0 x16, 1x PCI-e 5X4, 1 x PCIe Gen4x4 ,7.1 Channel Audio, USB 3.2, Gigabit LAN, HDMI, VGA

Key Features
Supports AMD Ryzen 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6600+(OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16
1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type A+C (Rear)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
9 USB 2.0 (6 Rear, 3 Front)
Killer 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

Specifications

Unique Feature
Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
Rock-Solid Durability
Server-Grade Low-Loss PCB
14+2+1 Power Phase, 60A SPS
Flexible Integrated I/O Shield
Ultrafast Connectivity
Killer 2.5G LAN,
802.11ax Wi-Fi 6EModule
ASRock Lightning Gaming Ports
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker

CPU
Supports AMD Socket AM5 Ryzen 7000 Series Processors

Chipset
AMD B650

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Killer E3100G
Supports Killer LAN Software

Wireless LAN
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth + High speed class II
Supports MU-MIMO

Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports AMD CrossFire
15æ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
2 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
4 x USB 3.2 Gen1 (2 Rear, 2 Front)
9 x USB 2.0 (6 Rear, 3 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt? AIC Connector (5-pin) (Supports ASRock Thunderbolt? 4 AIC Card)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports)
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (Phantom Gaming Tuning)
Killer Control Center
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
1 x Graphics Card Holder

Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
