ANTEC Signature Titanium 1000W PSU, 135mm FDB Silent Fan, 80 PLUS Titanium, Fully Modular, UK Plug, 100% Heavy-Duty Japanese Capacitors, Hybrid Zero RPM Fan Mode, OC Link Design Features Allows 2 Signature PSUs to Work in Tandem

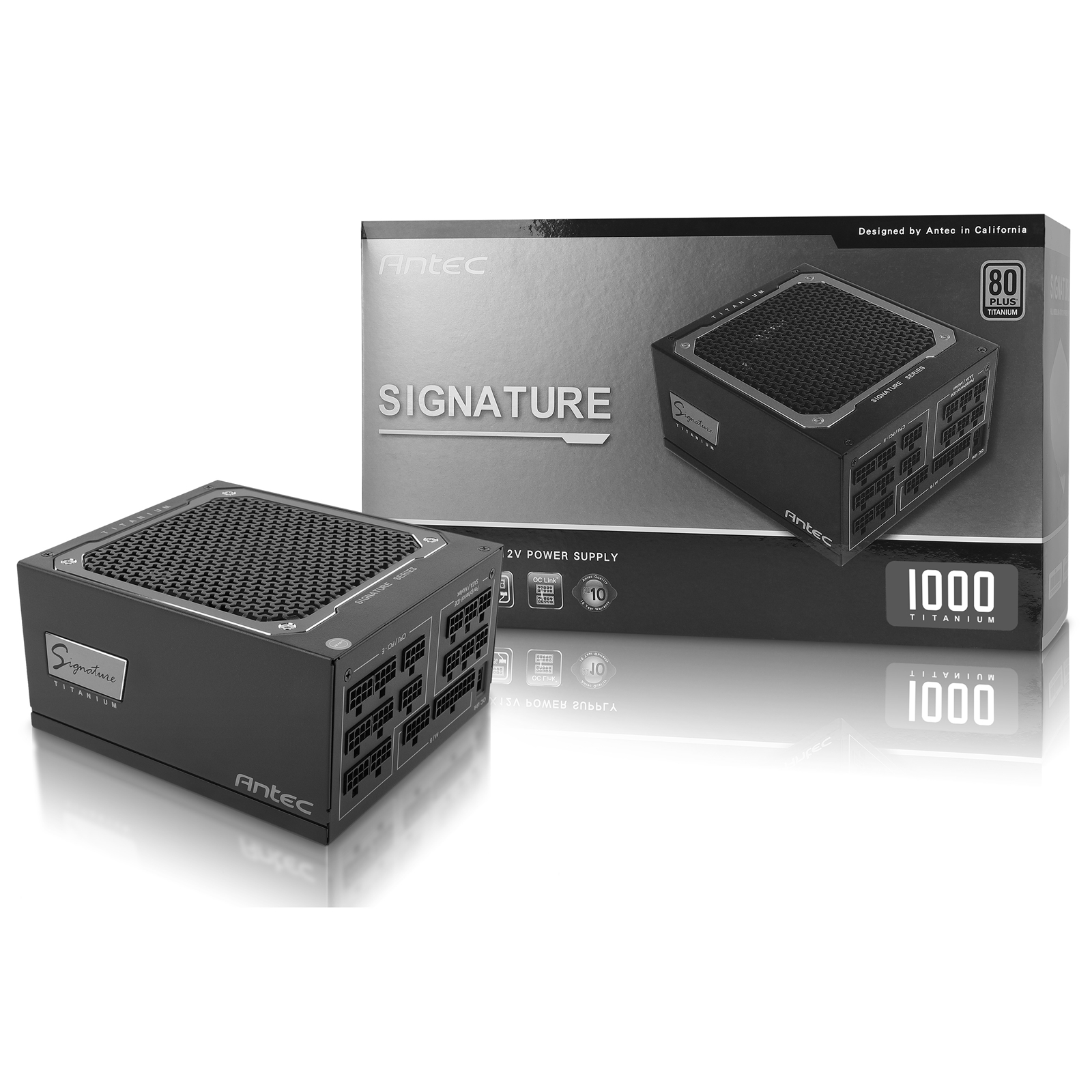

SIGNATURE 1000 TITANIUM

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS Titanium-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
- Continuous Power
- 80 PLUS Titanium Certified
- 100% Japanese Heavy-Duty Caps
- Full Modular
- PhaseWave DC-DC Converter Design
- OC Link Design

FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.

Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.

100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.

PhaseWave Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.

OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems

10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

Model
Signature 1000 Titanium

Wattage
1000W

Form Factor
ATX

Modular
Fully

Connections
1 x 24-pin
2 x 8 (4+4) pin ATX12V / EPS12V
8 x 8 (6+2) pin PCI-E
16 x SATA
5 x Molex
1 x FDD

Certification
80 PLUS Titanium

Input Voltage
100 - 240

Input Current
13A - 6.5A

Input Frequency Range
47Hz - 63Hz

PFC
APFC
PFC at half load: >0.95 at AC 110v 60Hz (typical)
PFC at full load: >0.90 at AC 230v 50Hz (typical)

Power Good Signal
100 - 500 mS

Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Regulatory
CB, CE, FCC, BSMI, TUV, cTUVus, 3C, RCM

Dimensions ( W x L x H )
150 x 170 x 86mm

Weight
Net: 2.11 Kgs
Gross: 3.94 Kgs
