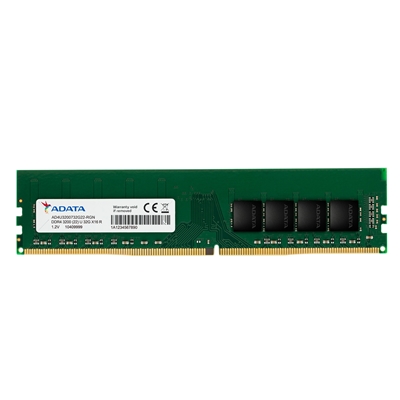

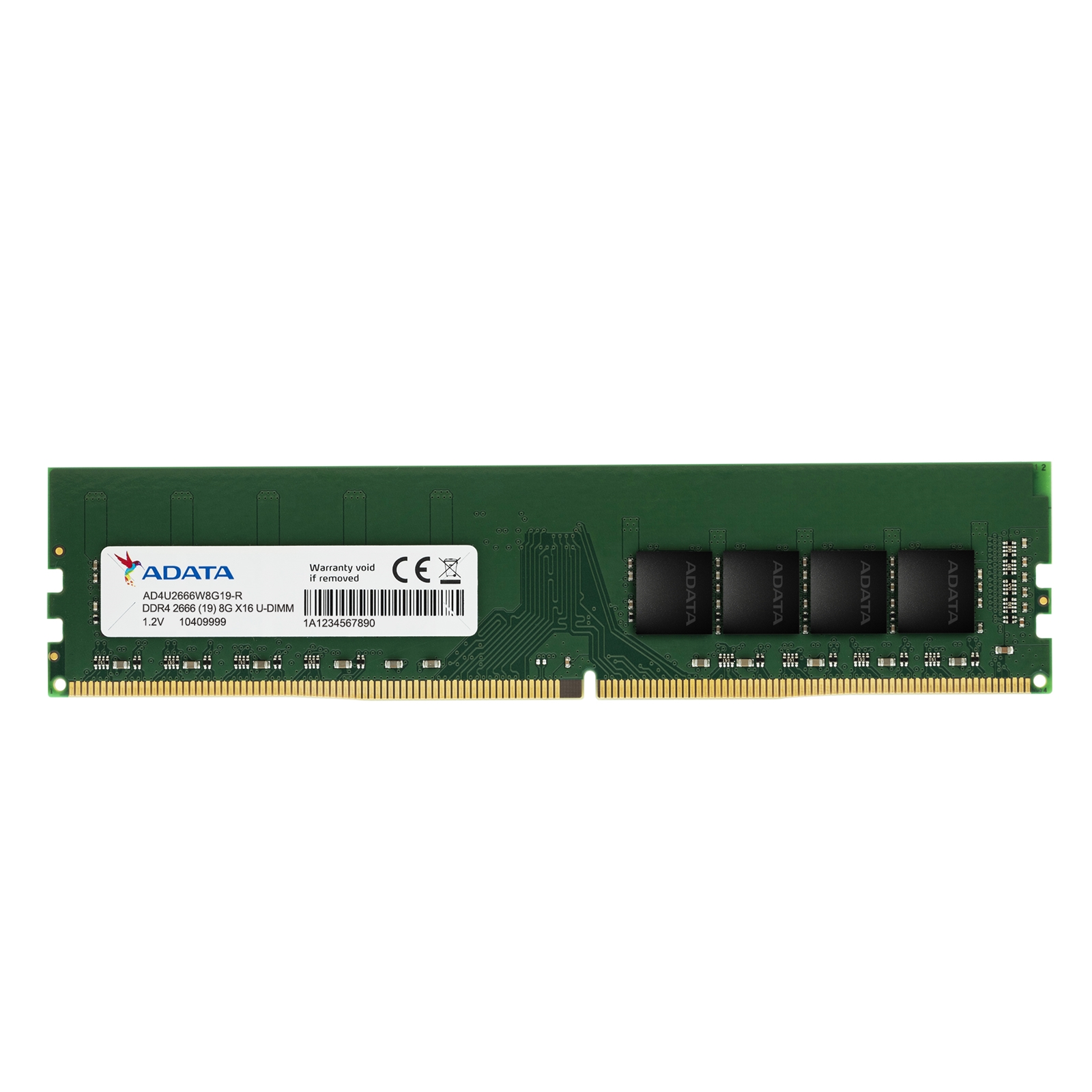

Premier DDR4 2666 U-DIMM represents a new and appealing desktop memory upgrade option, with optimized support for the latest Intel processor and chipset platforms delivering high performance. Meticulous compliance with JEDEC DDR4 specifications means fast clock frequencies up to 2666MHz combined with 20% power draw savings compared to DDR3. Premier DDR4 2666 modules therefore boost both performance and environmental conservation.
Meets Demanding Standards for New-Generation Platforms
- Complies with JEDEC standards
- RoHS compliant
- Supports Intel Skylake-X and Kaby Lake-X CPU
Lifetime Warranty
All ADATA memory modules are produced and tested using a rigorous quality control process for rapid computing and stable operation. In addition, ADATA memory modules provide customers a lifetime warranty for maximum assurance with excellent service.
- High speed up to 2666MHz
- Transfer bandwidth up to 21.3GB/s
- Energy efficient: saves 20% power compared to DDR3
- 8-layer PCB provides improved signal transfer and system stability
- Supports Intel Coffee Lake, Cannon Lake, Skylake-X and Kaby Lake-X CPU
- Supports AMD Socket AM4 and Socket TR4
SpecificationsModule Type
U-DIMM
Form Factor
Standard 1.23" height
Memory Type
DDR4
Standard
JEDEC
Interface
288-pin
Density
16GB
Speed
2666MHz
CAS Latency
CL 19-19-19
Operating temperature
0øC to 85øC
Warranty
Lifetime
