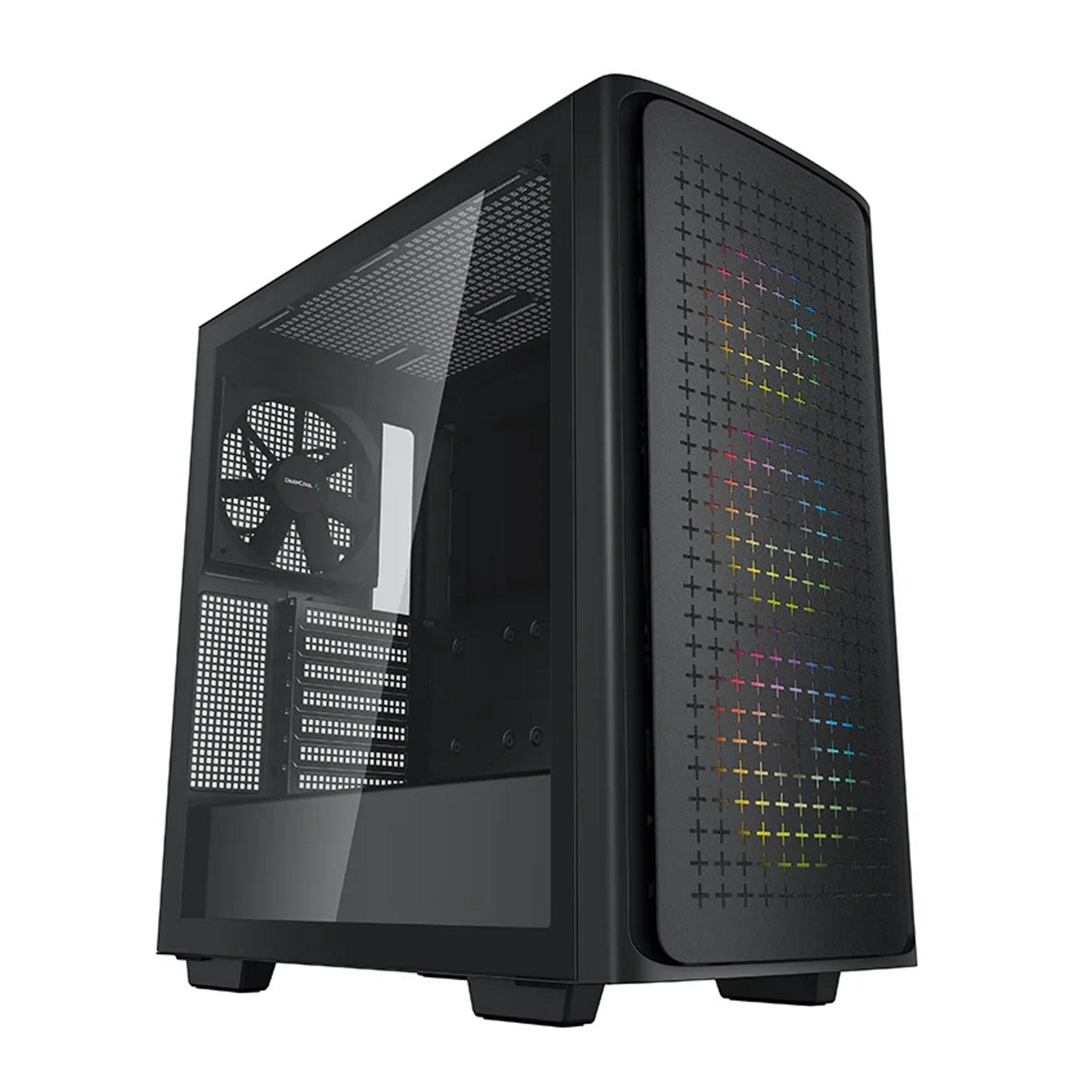

DeepCool CK560 Case, Gaming, Black, Mid Tower, 1 x USB 3.1 Type-C / 2 x USB 3.0, Tempered Glass Side Window Panel, Patterned Front Panel for Ample Ventilation & Airflow, Addressable RGB LED Fans, E-ATX, ATX, Micro ATX, Mini-ITX

CK560
Mid-Tower Case

DETAILS MAKE THE DIFFERENCE
The DeepCool CK560 Mid-Tower Case offers a streamlined PC building experience with great compatibility and high-airflow performance thanks to four powerful pre-installed fans and ample ventilation throughout the chassis.

QUICK-RELEASE VENTILATED FRONT PANEL
A patterned front panel introduces ample ventilation and airflow for better cooling performance. The solid steel panel is magnetically attached for easy access.

WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK560 provides ample space without being too bulky.

SUPERB AIR COOLING
Three pre-installed DeepCool 120mm airflow-focused ARGB fans and one 140mm DeepCool performance fan help concentrate cooling power for lower temperatures while keeping noise minimal.
Quickly and easily customize the ARGB fans with either preset lighting effects or through a 5V header for motherboard synchronization.

CHOOSE YOUR COOLING CONFIGURATION
The CK560 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.

CONVENIENT STORAGE OPTIONS
Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.

IMPROVED BUILDER EXPERIENCE
- Three dedicated dust-filters in front, top, and bottom with magnetic or quick-release attachments.
- The adjustable GPU anti-sag bracket can be positioned in two locations for various sized graphics cards.
- The full-sized tempered glass panel slides and holds in place before fastening with captive thumbscrews.
- Rubber Grommets and ample room behind the motherboard tray help with cable management.
- Independent PCIe baffles are reusable and easy to remove.

MODERN FRONT I/O
Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close. A dedicated RGB control button offers multiple preset lighting effects for the included ARGB fans.

Form Factor
Mid Tower

Motherboard
E-ATX
ATX
Micro ATX
Mini-ITX

Colour
Black

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2

Power Supply Support
ATX PS2 (maximum length: 160mm)

I/O Panel
2 x USB 3.0
1 x Audio
1 x USB Type-C

Expansion
Slots: 7

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm (3 x 120mm ARGB fana installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm (1 x 140mm fan installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280 / 360
Top: 120 / 140 / 240 / 280
Rear: 120 / 140

Clearances
CPU Cooler Height Limit: 175mm
VGA Length Limit: 380mm
PSU Length Limit: 160mm

Product Dimensions ( L x W x H )
456mm x 230mm x 471mm

Weight
Net: 8KG
